Custom Rubber Covered Rollers

Custom covered rollers with specified rubber, EPDM, polyurethane, or silicone working surfaces. Built from your drawing for controlled grip, pressure, transfer, guiding, and surface contact in industrial production equipment.

Send Your Drawing

What Is a Rubber-Covered Roller?

A rubber-covered roller combines a rigid core, shaft, or tube with an elastomer working surface. The cover material, target hardness, face profile, and mounting details are selected together for the actual machine and process.

Rubber, polyurethane, and silicone are not interchangeable default materials. The correct choice depends on the load, contact material, heat, chemicals, required grip or release, and surface condition.

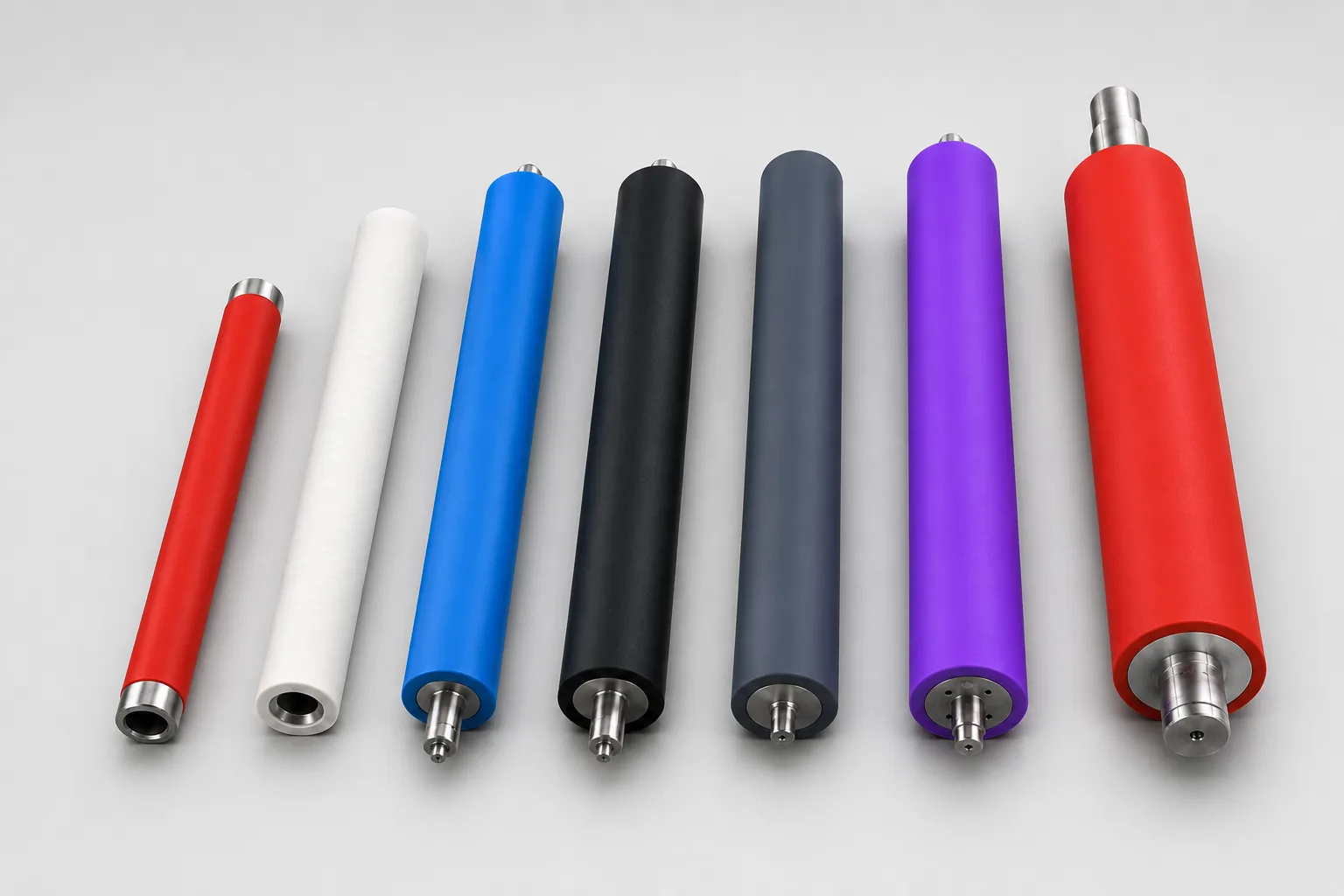

Industrial rubber roller showing an elastomer working surface over a rigid core

Covered Roller Types We Can Supply

We can supply the following covered roller types from your drawing. The compound, hardness, dimensions, working-face profile, and operating conditions are confirmed for each project.

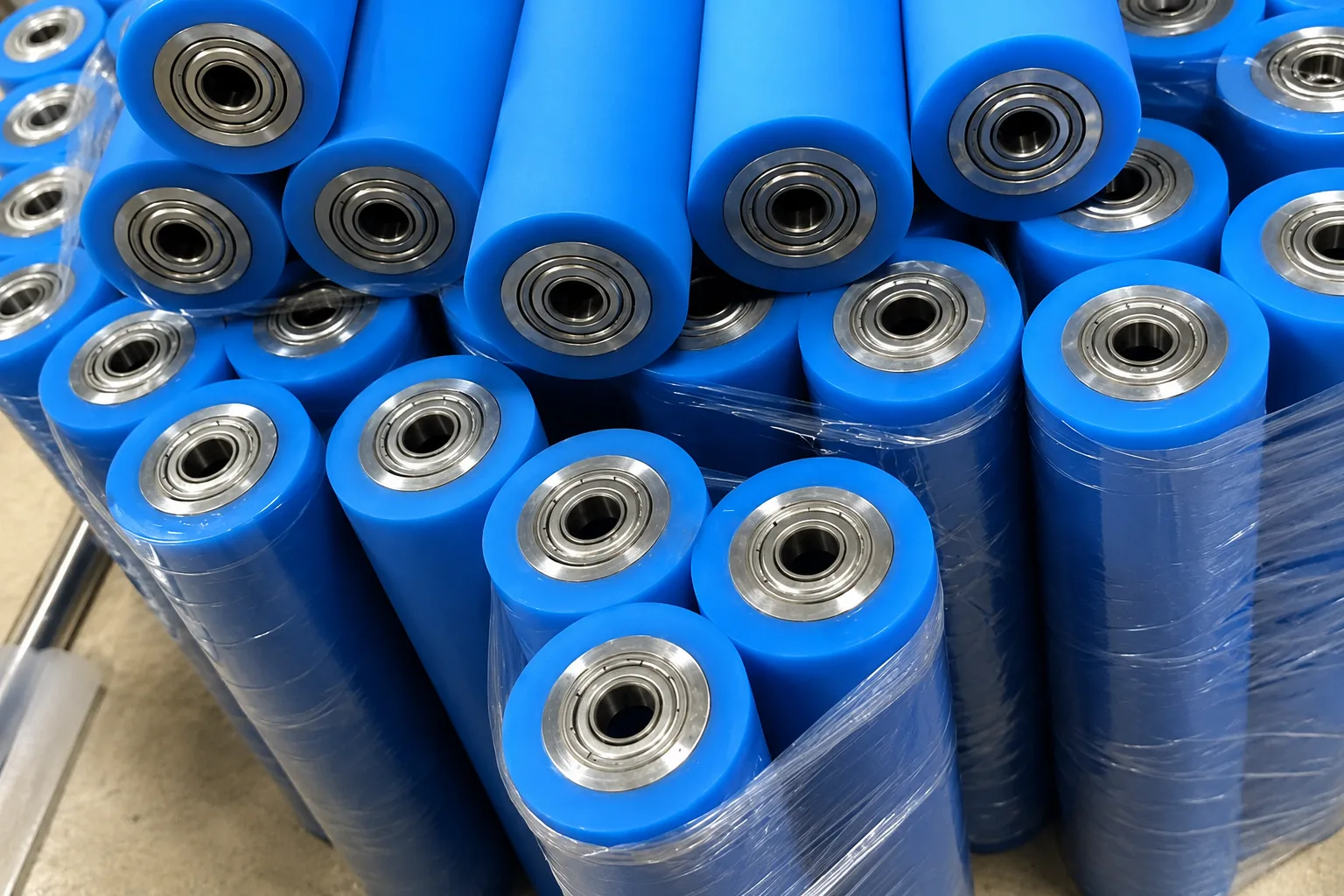

General-purpose rubber-covered industrial roller

Rubber-covered rollers

For general industrial contact where the required grip, compression, process medium, and working environment are specified.

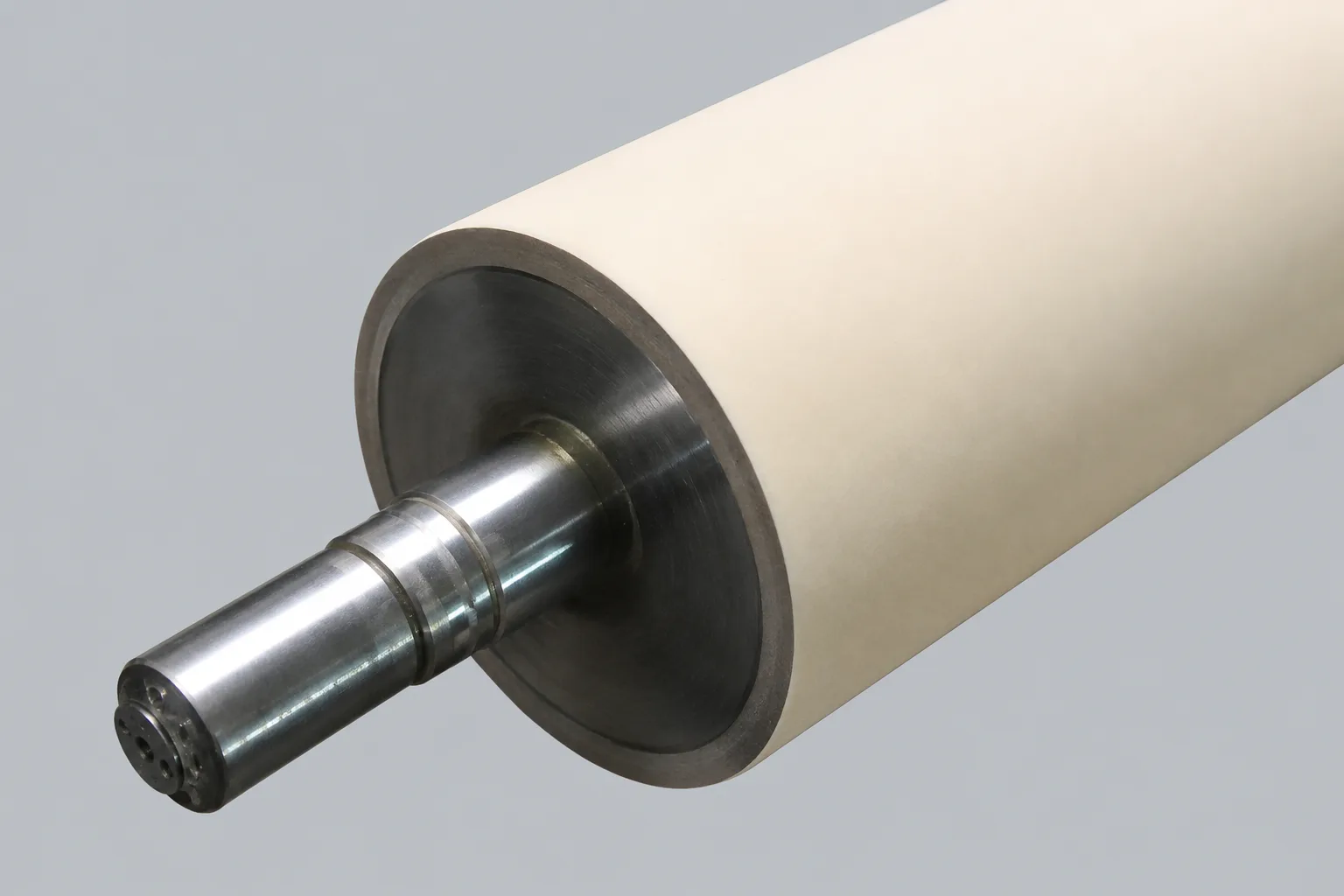

EPDM rubber roller for water, steam, and weathering exposure

EPDM rubber rollers

Specified for applications where weathering, ozone, water, steam, or the stated process environment must be considered.

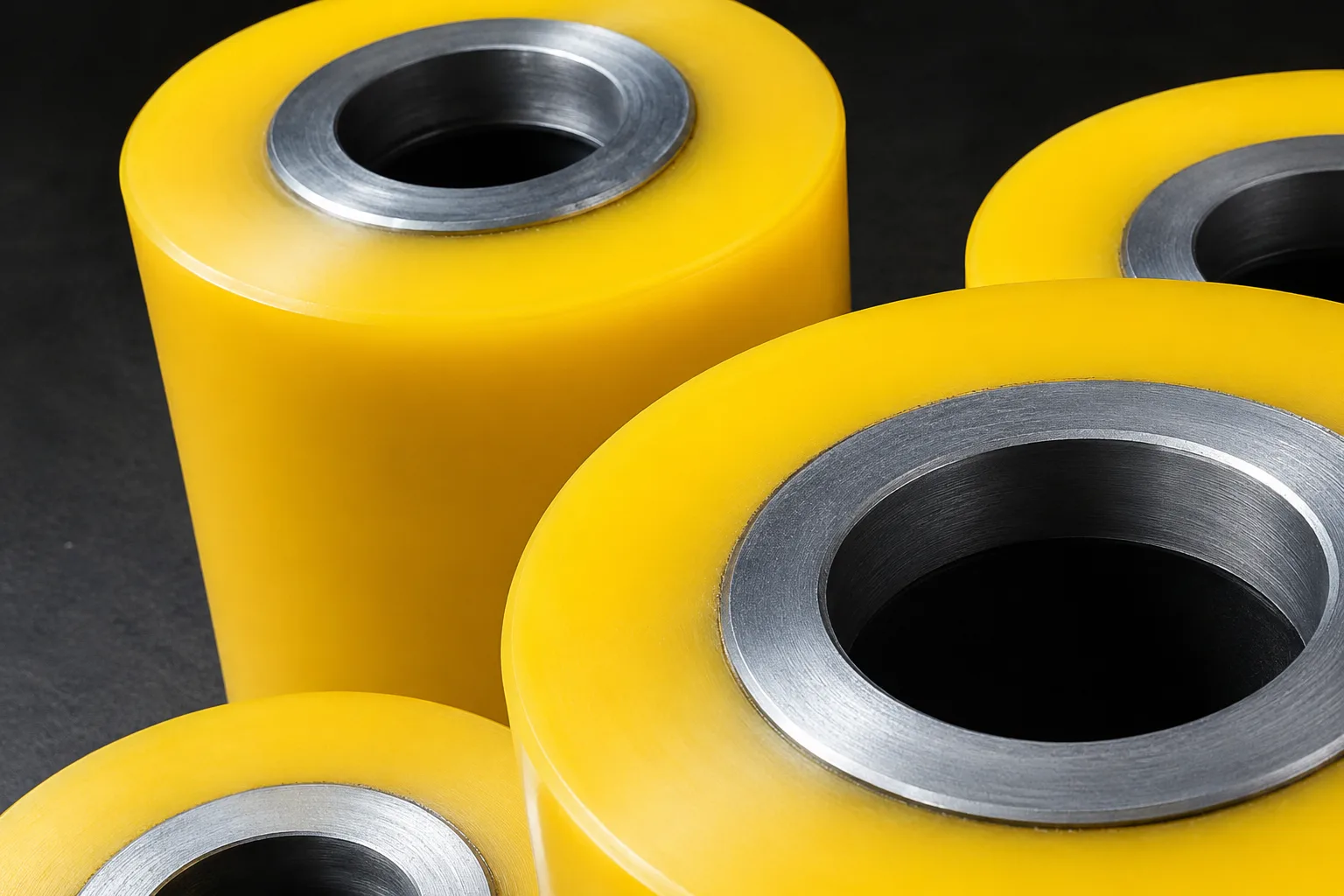

Polyurethane covered roller for abrasion-resistant industrial contact

Polyurethane (PU) rollers

Selected for applications requiring abrasion resistance, load-bearing contact, or controlled driving and feeding performance.

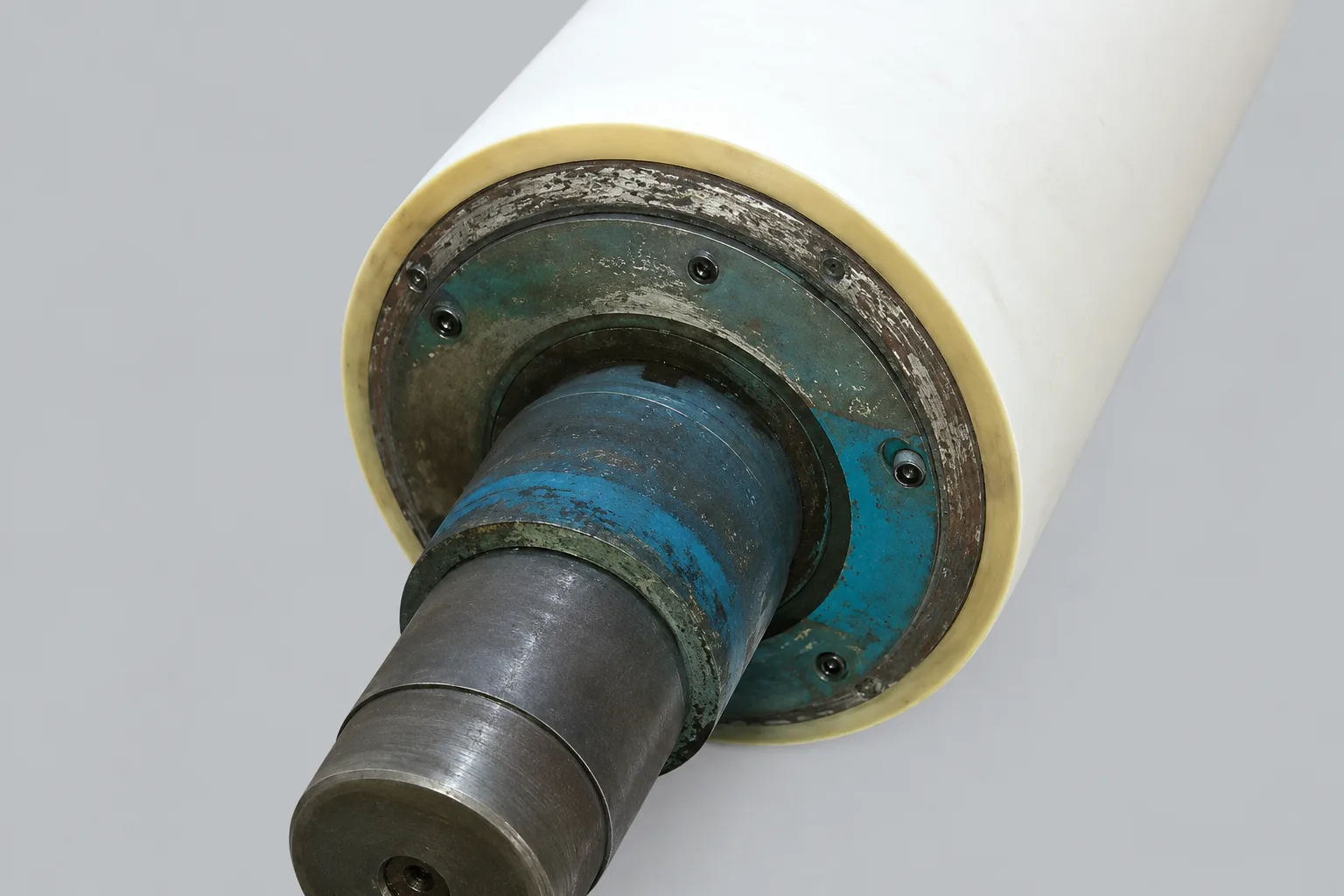

Industrial nylon roller for hard, wear-resistant machine contact

Nylon rollers

Nylon rollers can be supplied for printing, dyeing, and other machine-contact applications requiring a hard, wear-resistant working surface. Nylon is an engineering-plastic working surface rather than an elastomer cover, so the grade, dimensions, shaft or core, surface finish, chemicals, temperature, and machine interface are confirmed separately for each project.

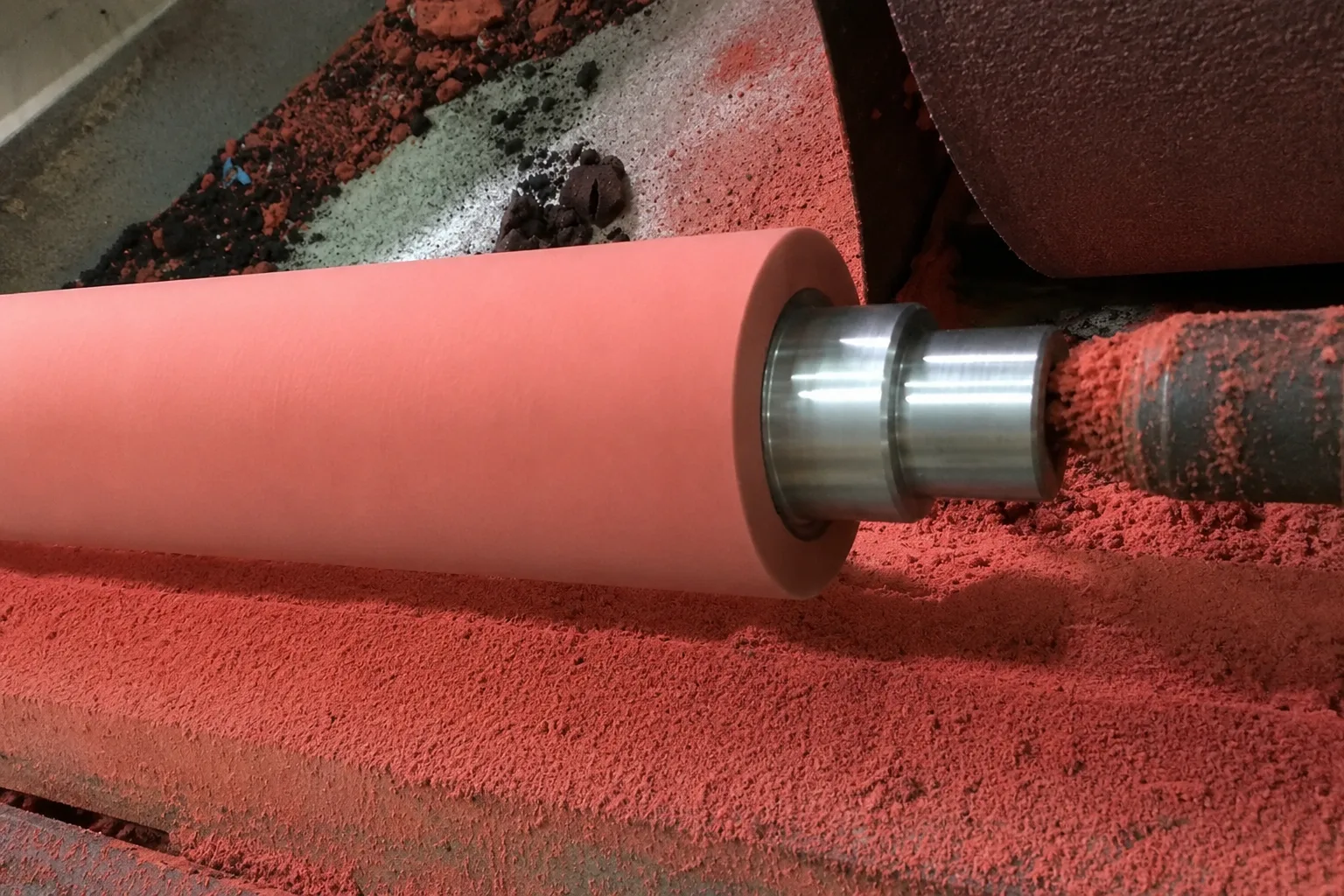

Silicone-covered roller for heat and release contact

Silicone-covered rollers

Supplied for heat, release, or non-stick contact requirements when compatible with the process medium.

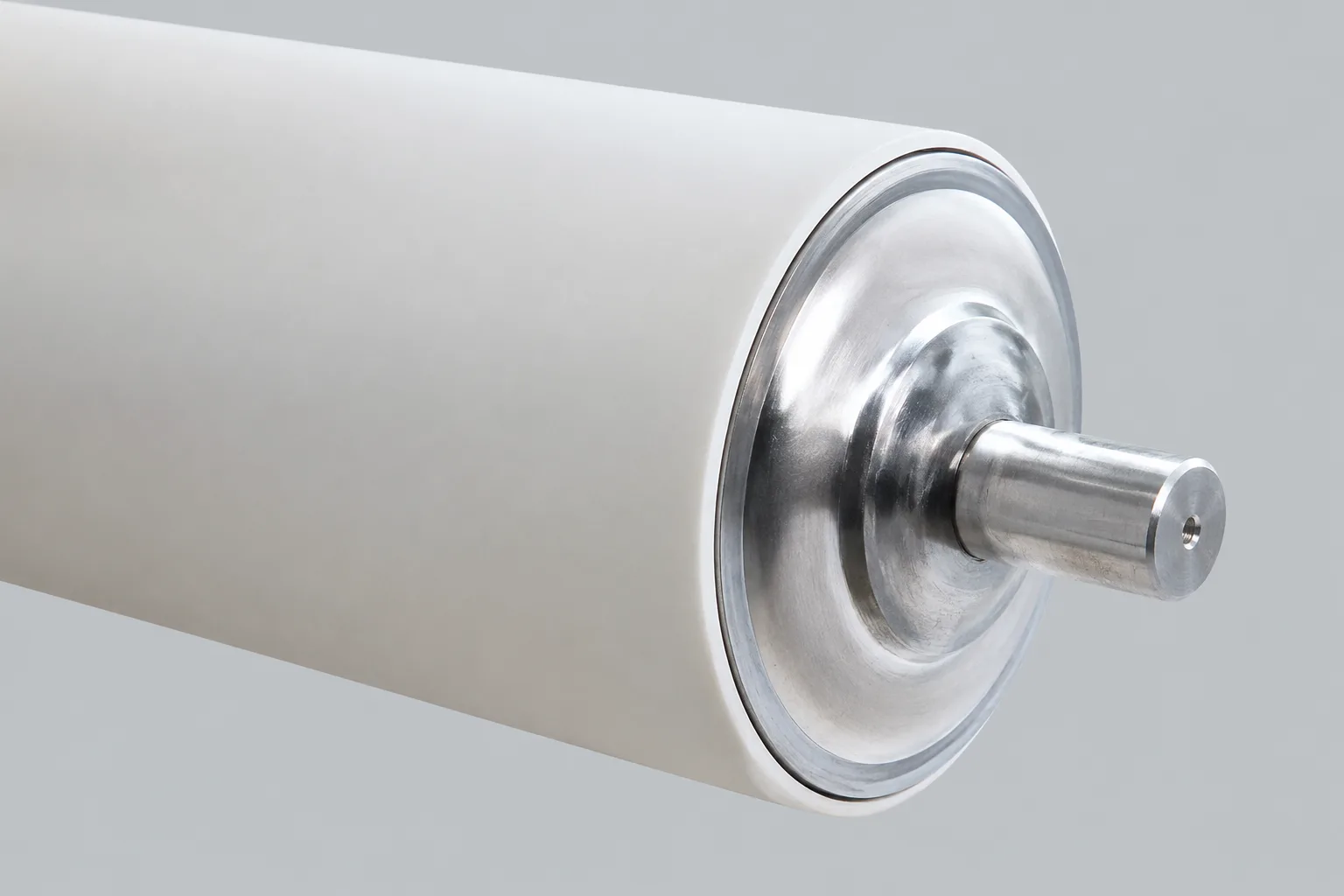

Liquid silicone rubber covered rollers for specified process conditions

Liquid silicone rubber rollers

Liquid silicone rubber rollers can be supplied when the project requires a liquid-silicone cover. The material grade, hardness, temperature, chemicals, surface finish, and finished dimensions are confirmed from the drawing and operating conditions.

Common Industrial Applications

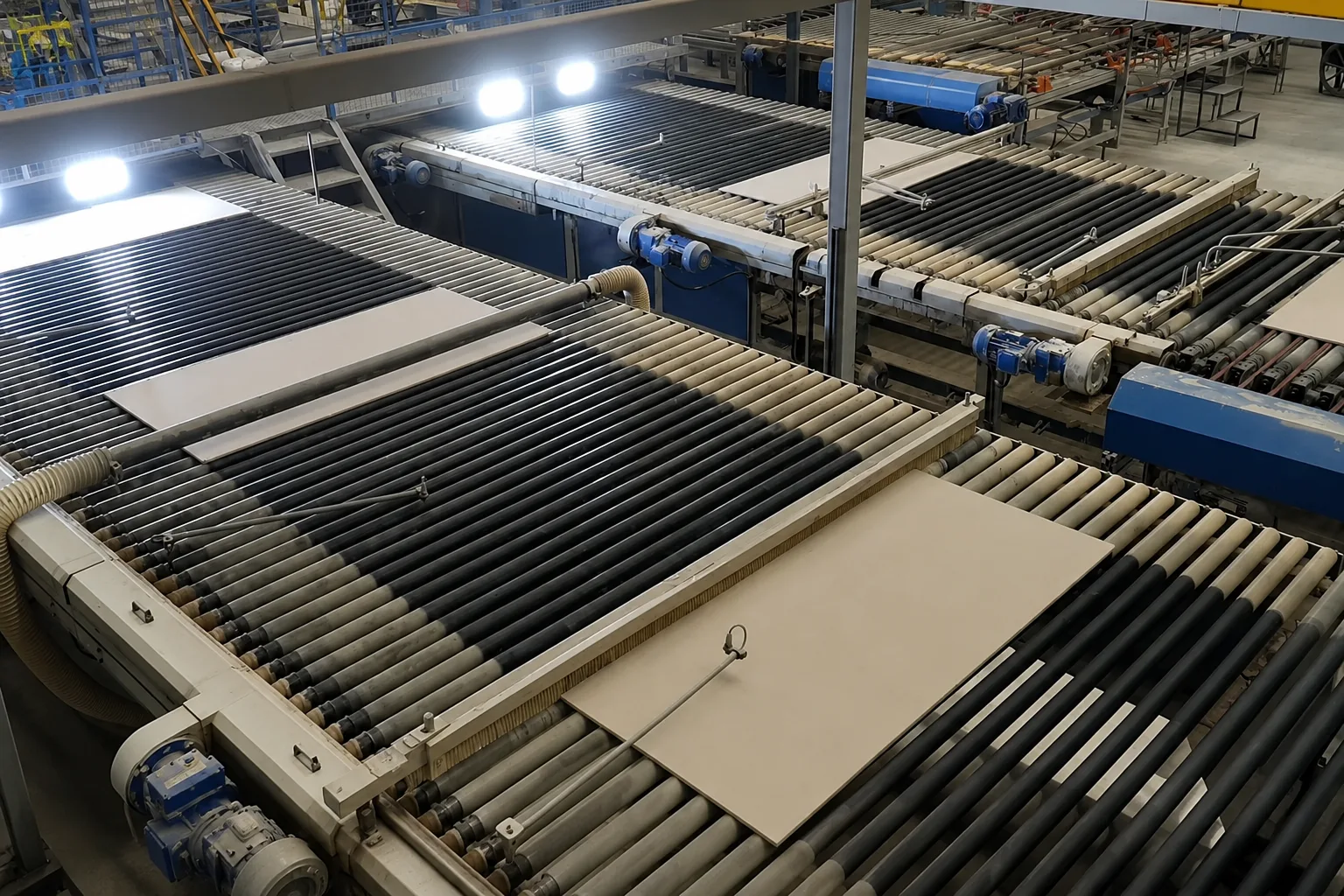

Rubber-covered roller for conveying and material handling

Conveying & Material Handling

Rubber-covered rollers provide controlled grip, drive, support, or positioning contact for products and conveying media in material-handling equipment.

View Conveyor Systems & OEM →

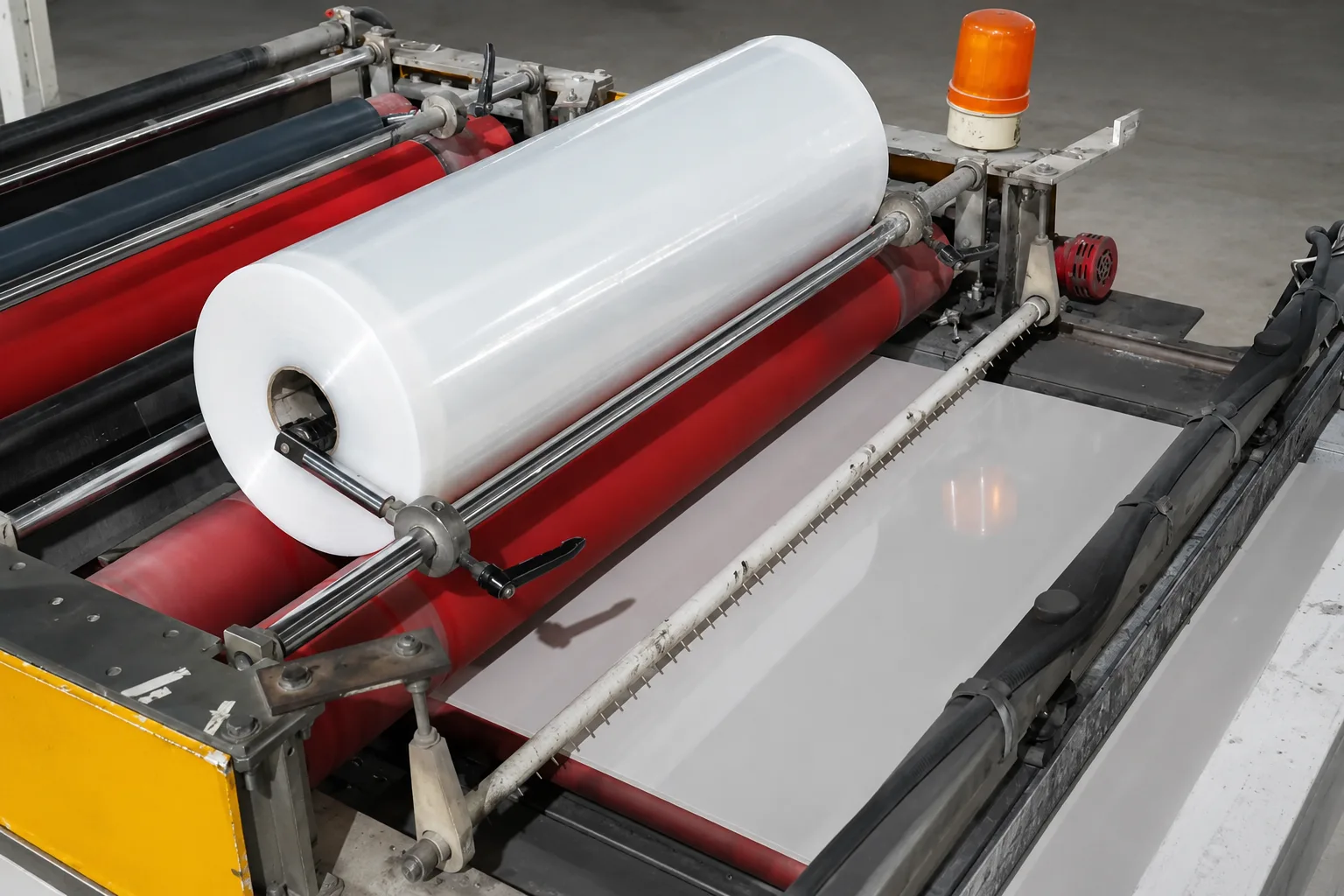

Rubber-covered roller for film lamination and pressing

Film Lamination & Pressing

Covered nip and pressure rollers help control contact, traction, and pressure while flexible films and laminates pass through converting equipment.

View Packaging →

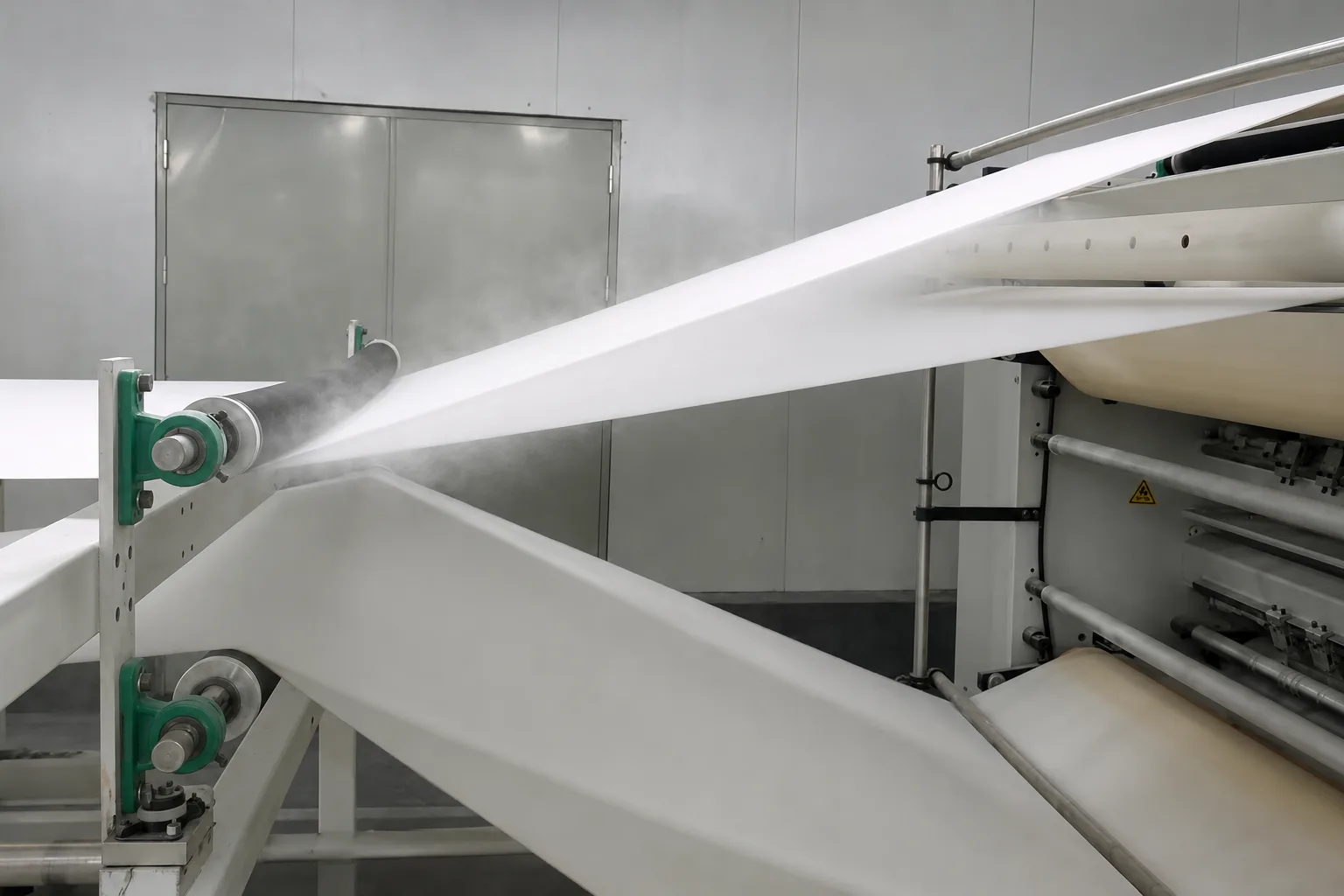

Paper & Web Handling

The selected cover and face profile help feed, guide, tension, or support paper, label stock, and other continuous webs.

View Packaging →

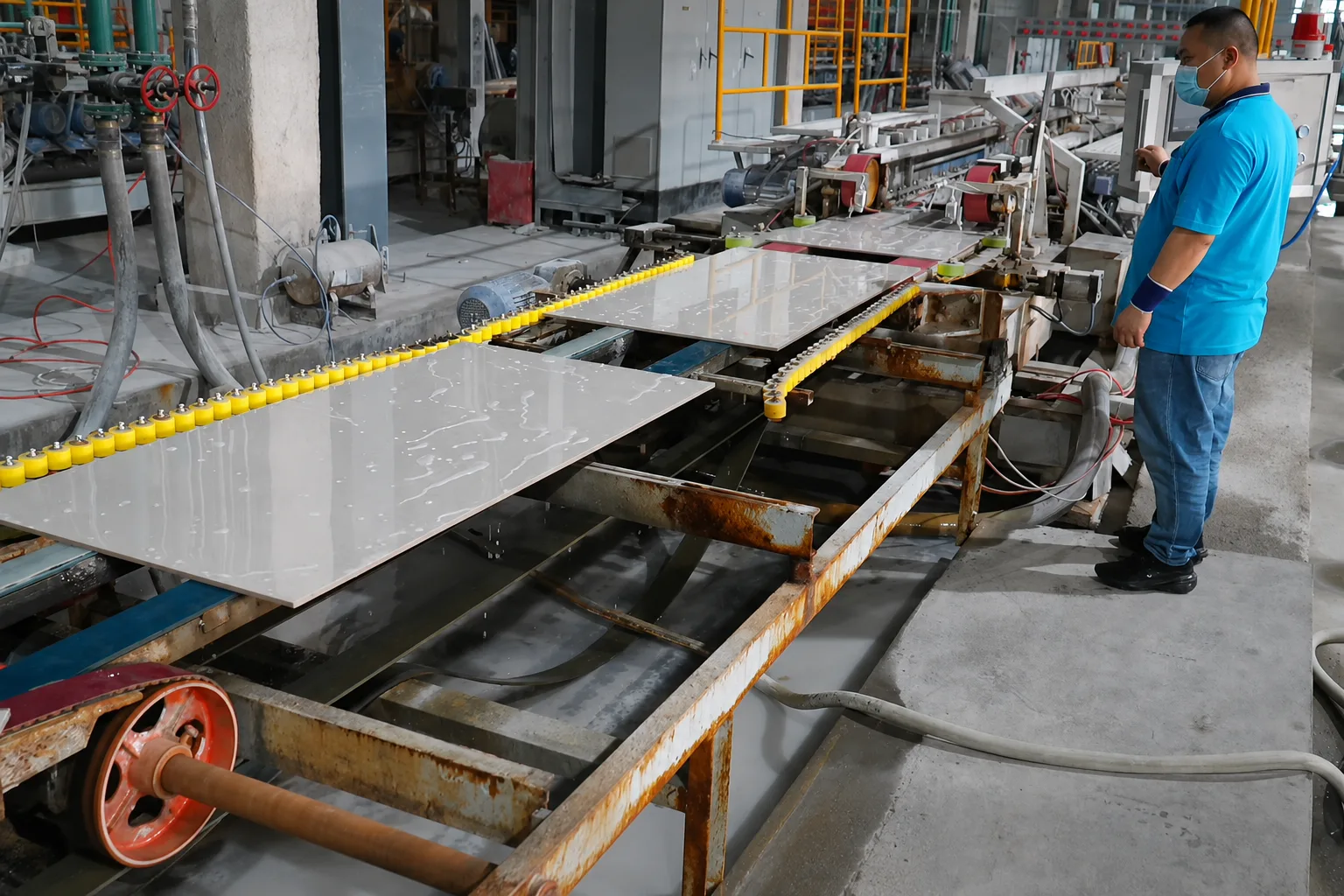

Covered roller for controlled transfer and positioning contact

Printing & Ink Transfer

Drawing-based covered rollers can provide defined transfer, impression, or support contact in printing and packaging equipment.

View Packaging →

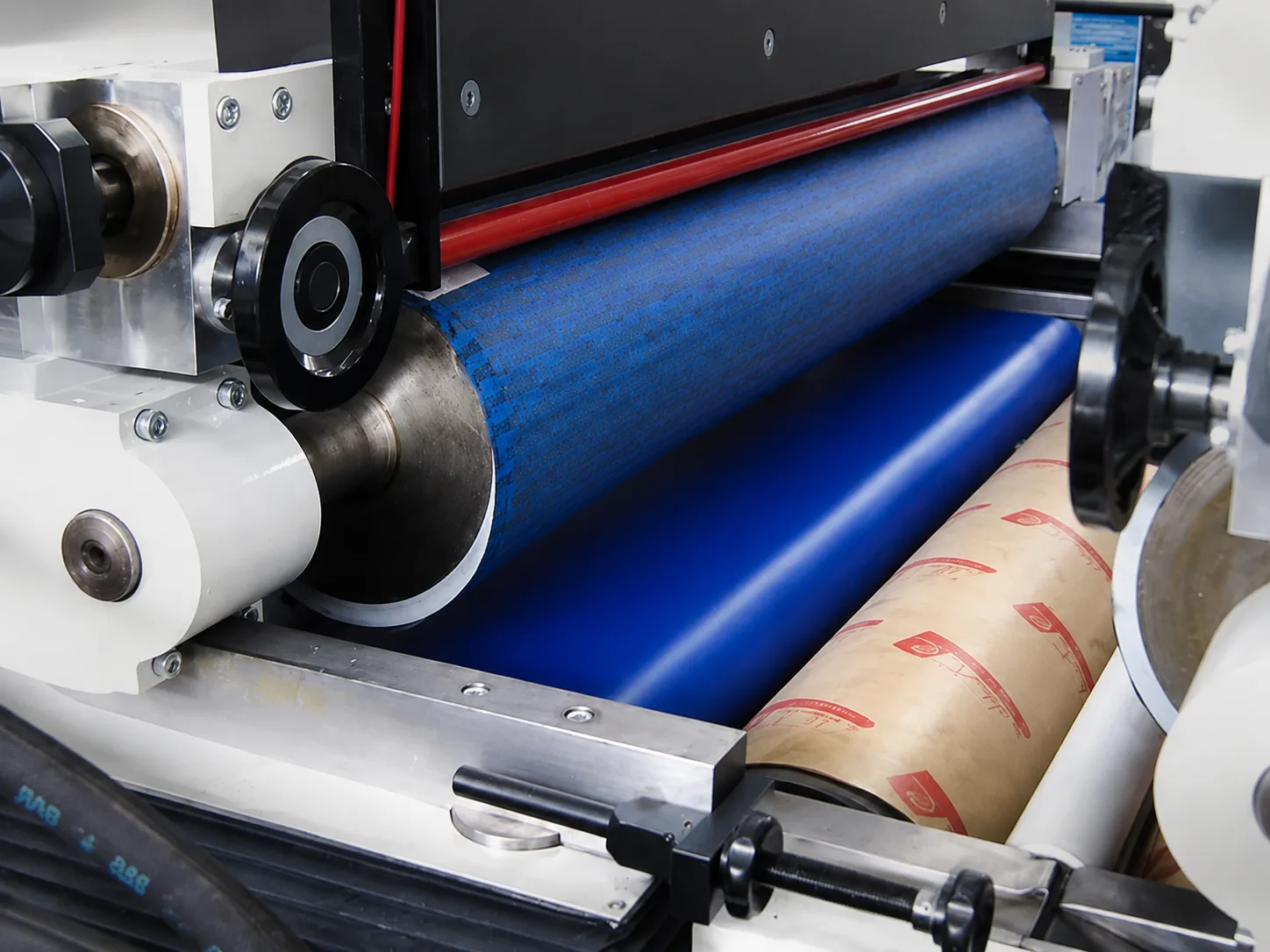

Rubber-covered roller for coating and adhesive application

Coating & Adhesive Application

Covered rollers can meter, press, transfer, or support a web where coating or adhesive contact is defined by the machine design.

View Packaging →

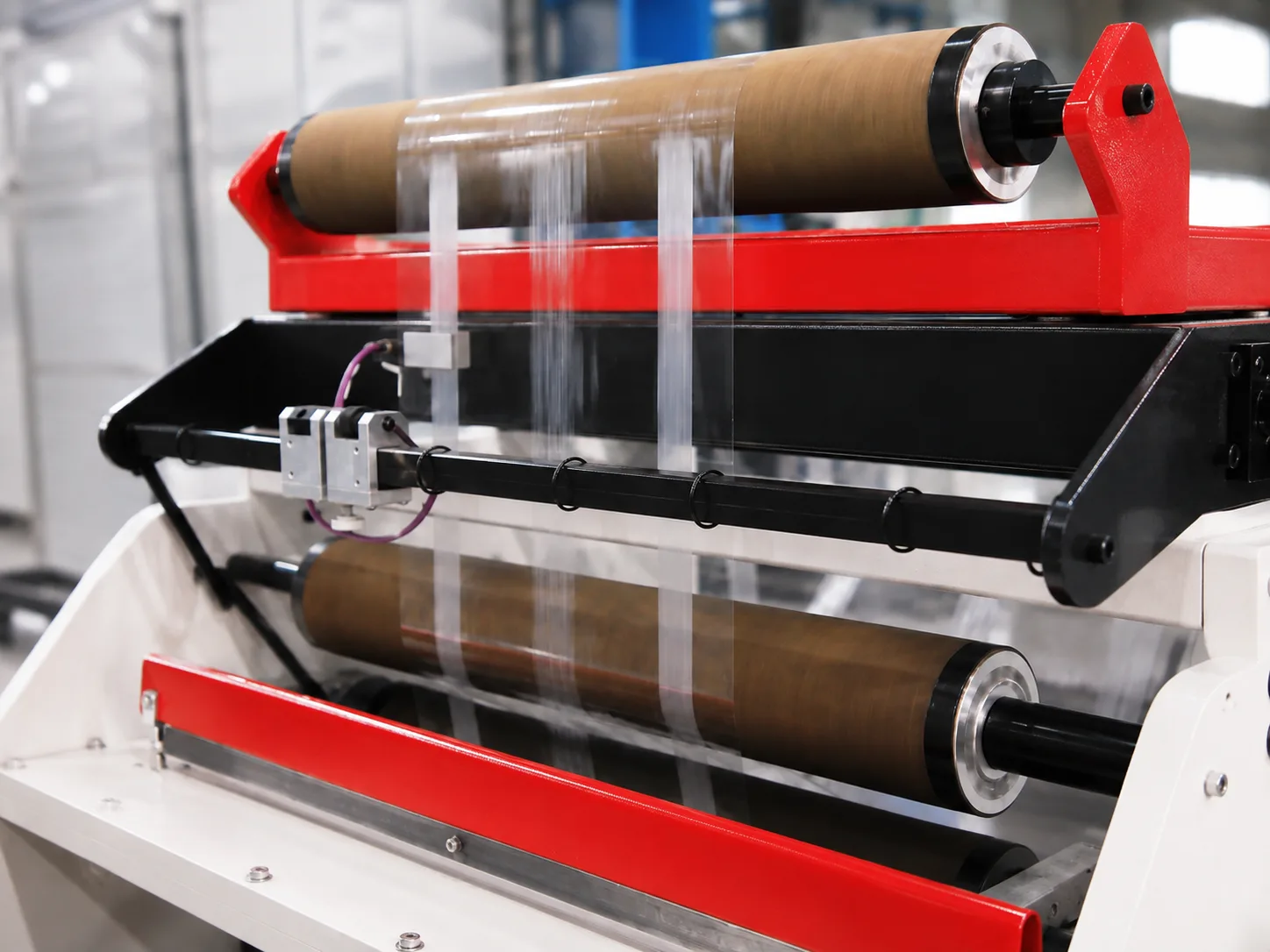

Rubber-covered roller for packaging and converting equipment

Packaging & Converting

Custom rollers support nip, pull, feed, lamination, and controlled web-contact positions in packaging and converting lines.

View Packaging →

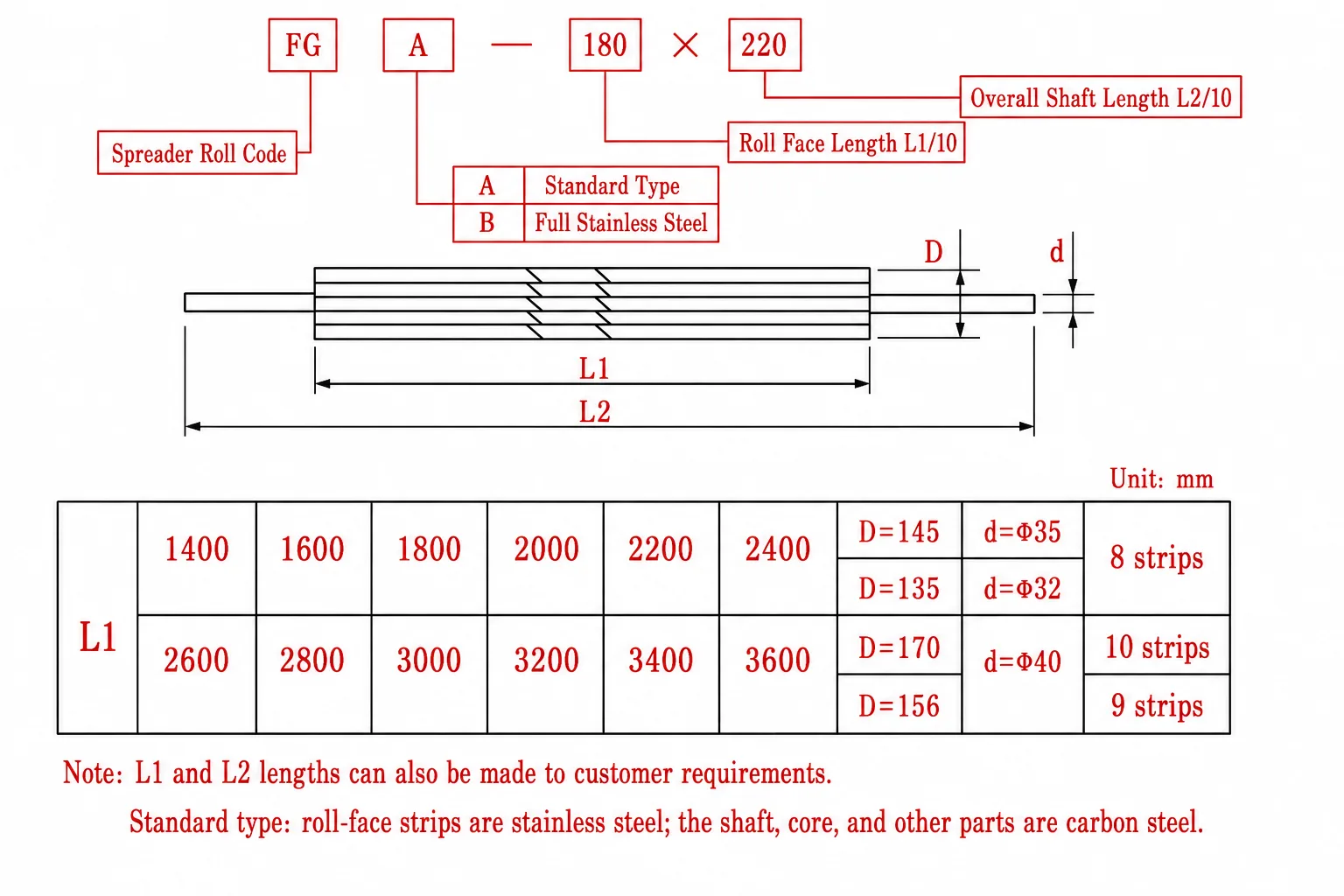

Related Expander and Spreader Rolls

Expander and spreader rolls can also be supplied for web spreading, wrinkle control, and material flattening. Send the required roll form, dimensions, shaft or mounting details, and operating conditions with the drawing.

Expander and spreader roll for web spreading and wrinkle control

Custom Manufacturing from Your Drawing

These rubber roller profiles can be produced from your drawing for OEM, replacement, and volume orders. Cover material, hardness, dimensions, profile, shaft details, and tolerances follow the approved drawing.

Send Your Drawing

Rubber roller profiles we can produce

Smooth full-cover rubber rollers
Grooved rubber rollers — spiral, chevron, herringbone, diamond, ruling, or threaded grooves
Crowned rubber rollers
Rubber Ring Rollers (Donut Rollers)

Packing

Each roller is protected around the working surface and shaft details, then secured in project-suitable packing for handling and shipment. Packing is planned around roller length, weight, finish, and delivery destination.

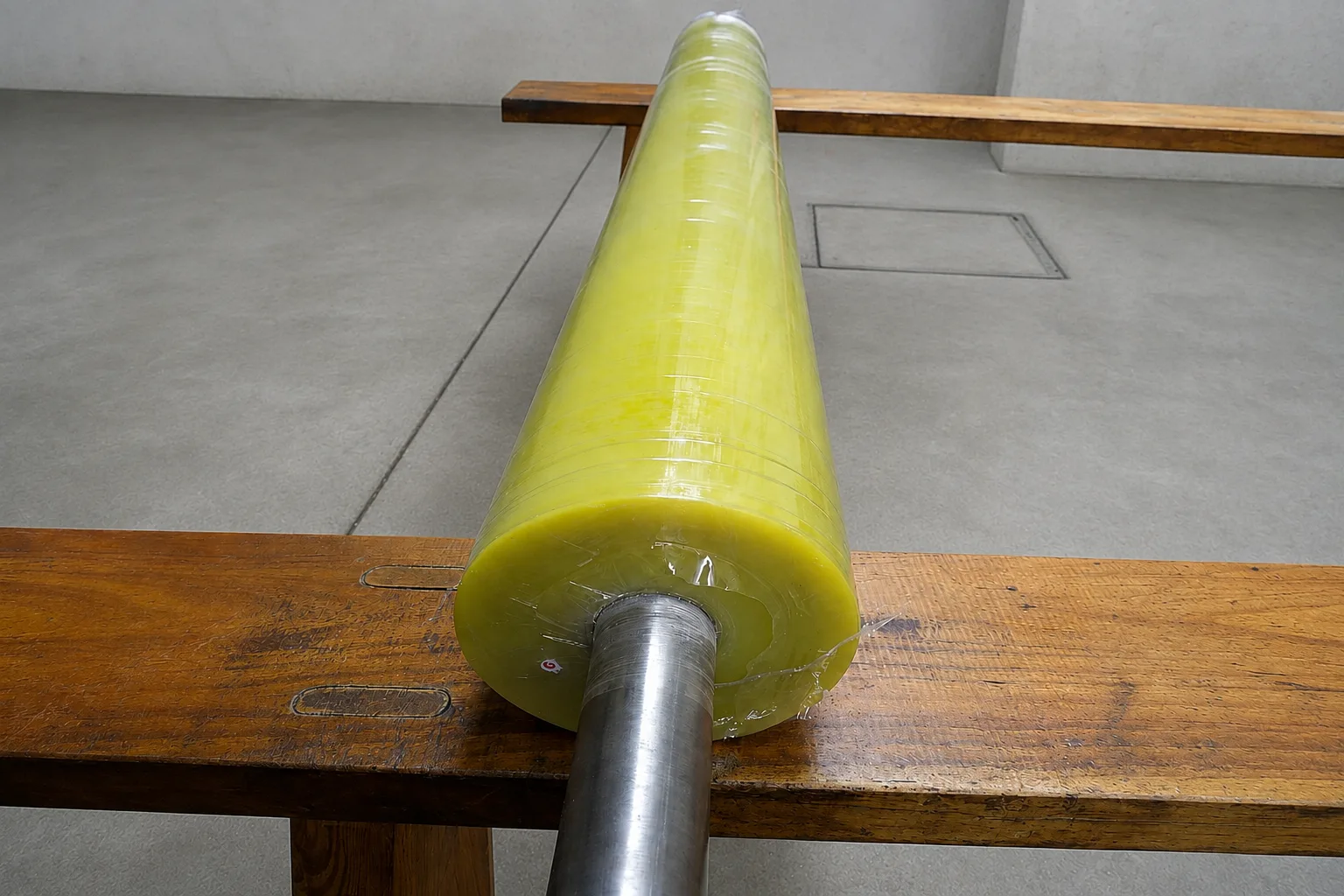

Rubber covered rollers packed for shipment

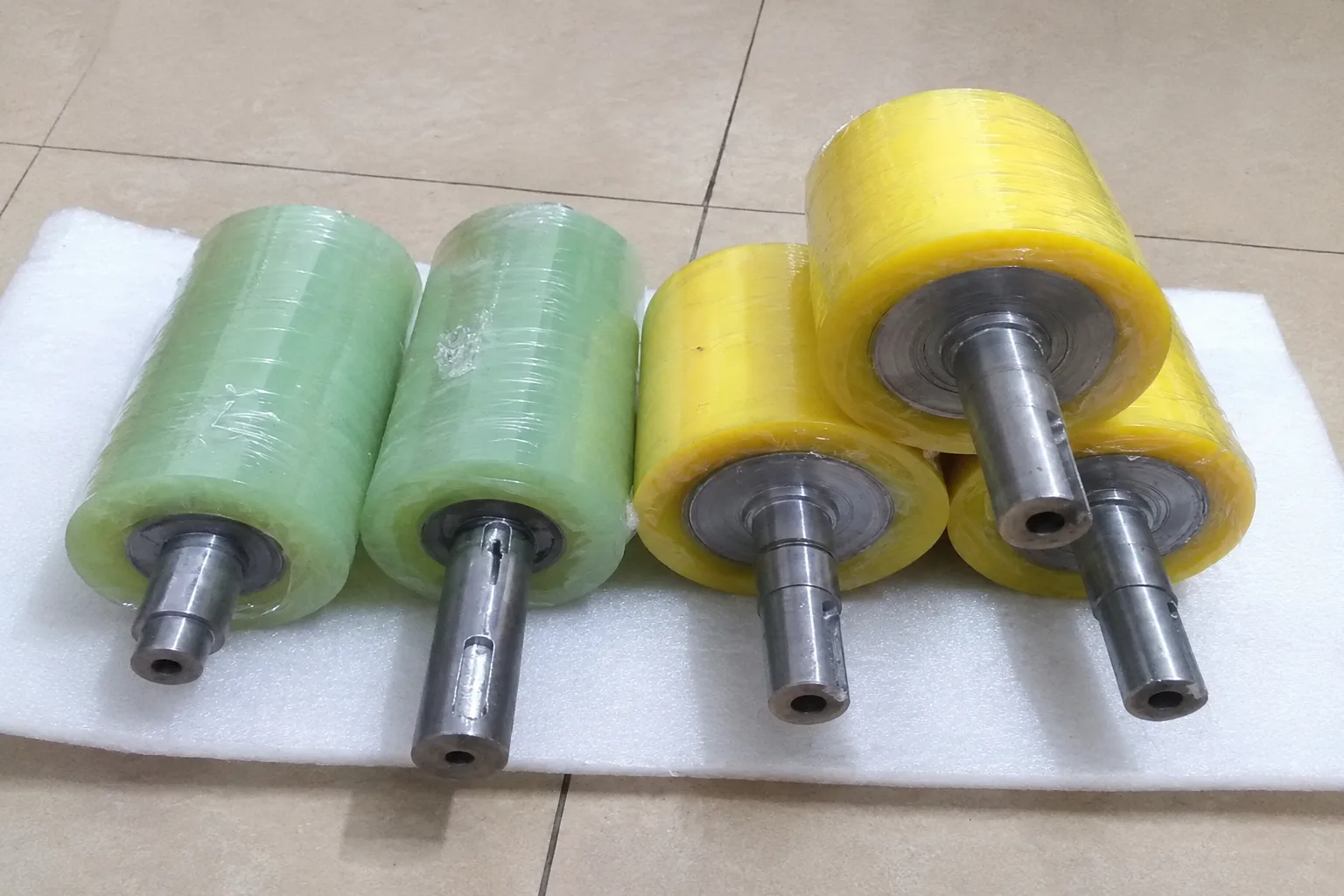

Rubber covered roller packaging protection

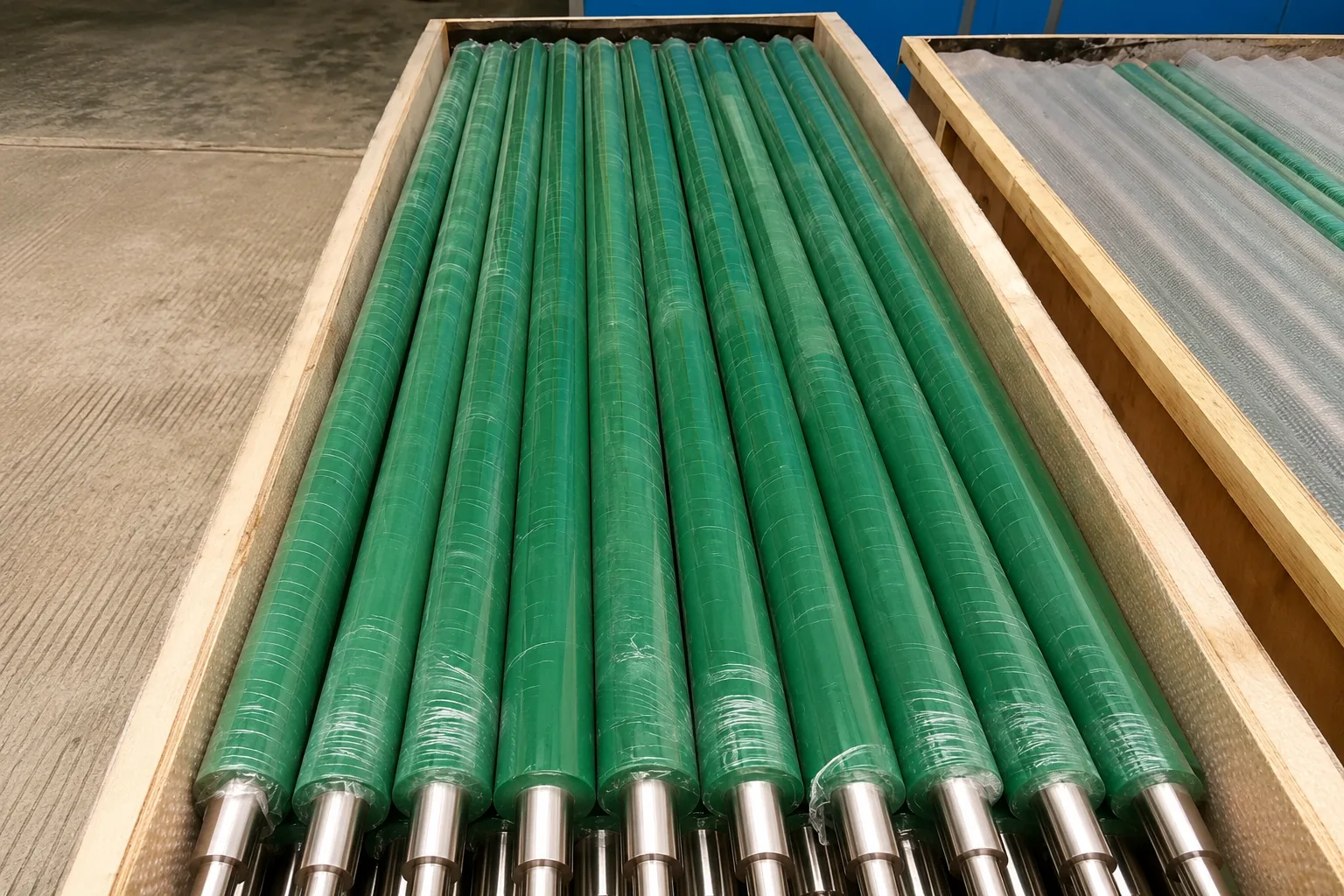

Rubber covered rollers secured for delivery

FAQ

How are the cover material and hardness selected?

They are selected together from the actual process requirements, including load, abrasion, heat, chemicals, required grip or release, contact pressure, line speed, and the material being handled. Rubber, EPDM, polyurethane, silicone, and nylon have different operating limits, so the compound or grade and hardness are confirmed for each application.

What information is required to quote a custom rubber-covered roller?

Provide the finished outside diameter, face length, core or shaft and journal dimensions, cover material and hardness if known, working-face profile, required runout and tolerances, operating speed, load or nip pressure, temperature, process chemicals, application, and order quantity.

Can the working face be smooth, grooved, crowned, or made with rubber rings?

Yes. Smooth full covers, specified groove patterns, crowned profiles, and separate rubber-ring or donut-roller layouts can be produced from an approved drawing. The profile dimensions and arrangement must match the required machine function.

How are runout, tolerances, and balancing requirements confirmed?

State the critical runout, dimensional tolerances, operating RPM, support arrangement, and any balancing requirement on the drawing. The feasible manufacturing and balancing requirements are reviewed against roller size, mass, cover construction, shaft design, and machine speed before quotation.

Can you manufacture a replacement roller from an existing drawing?

Yes. Send the approved drawing with the finished dimensions, cover requirement, core or shaft detail, working face, and critical tolerances. Also provide the current operating conditions so that worn dimensions or an unsuitable previous material are not copied without review.

Need a Custom Covered Roller?

Send your drawing for custom production. We will review the required working surface, core or shaft, mounting detail, and process conditions before quotation.
