Custom metal channel strip brushes for sealing, guiding, dust control, light wiping, and machine cleaning. Specify the carrier, profile, filament, trim, mounting, and service environment for a new build or replacement.
Request a QuoteFormed carrier · Retaining wire · Filament fill

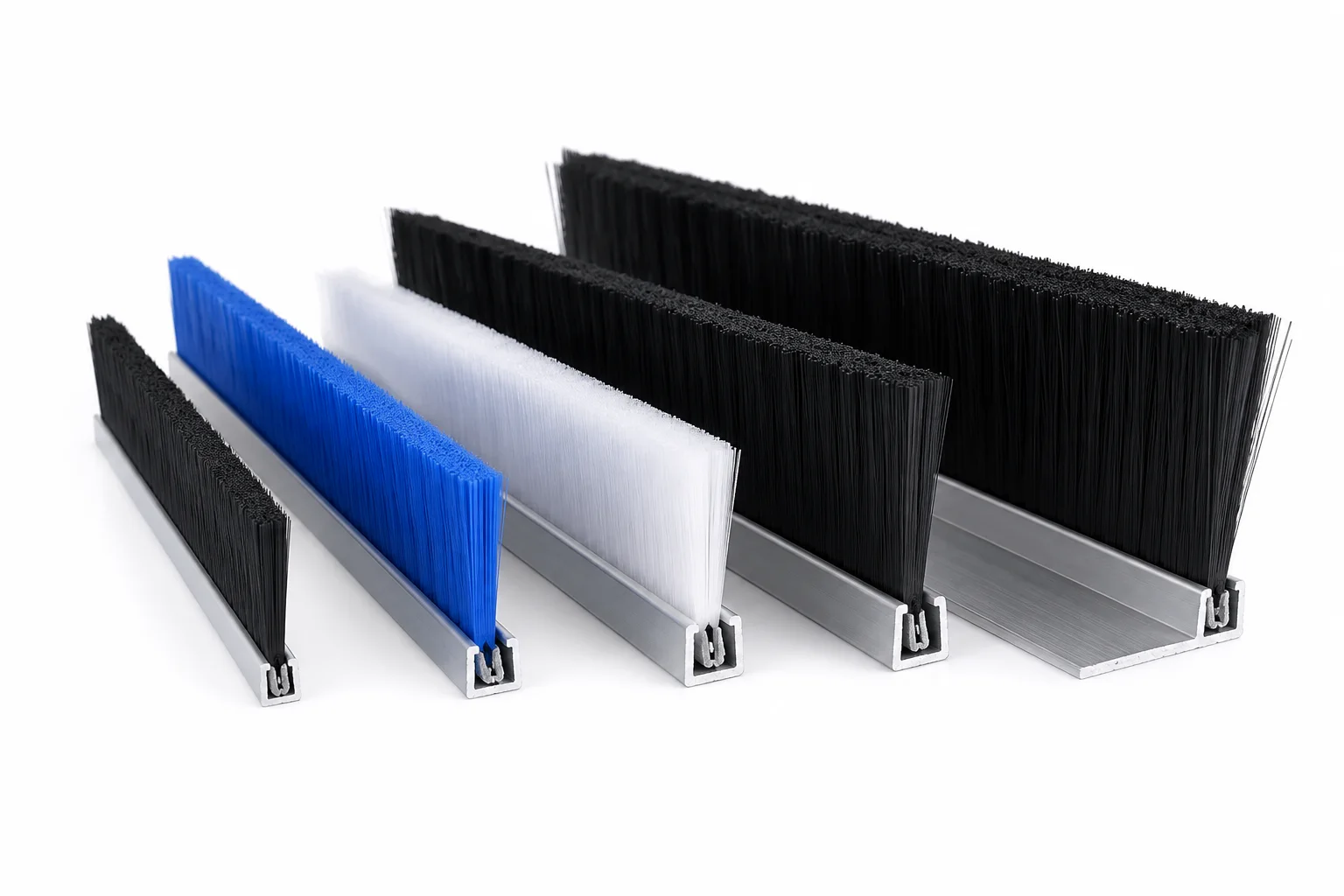

A metal channel strip brush combines a formed metal carrier, retaining wire, and filament fill. The carrier provides structural support; the filament forms the working edge for sealing, guiding, wiping, shielding, or controlled contact.

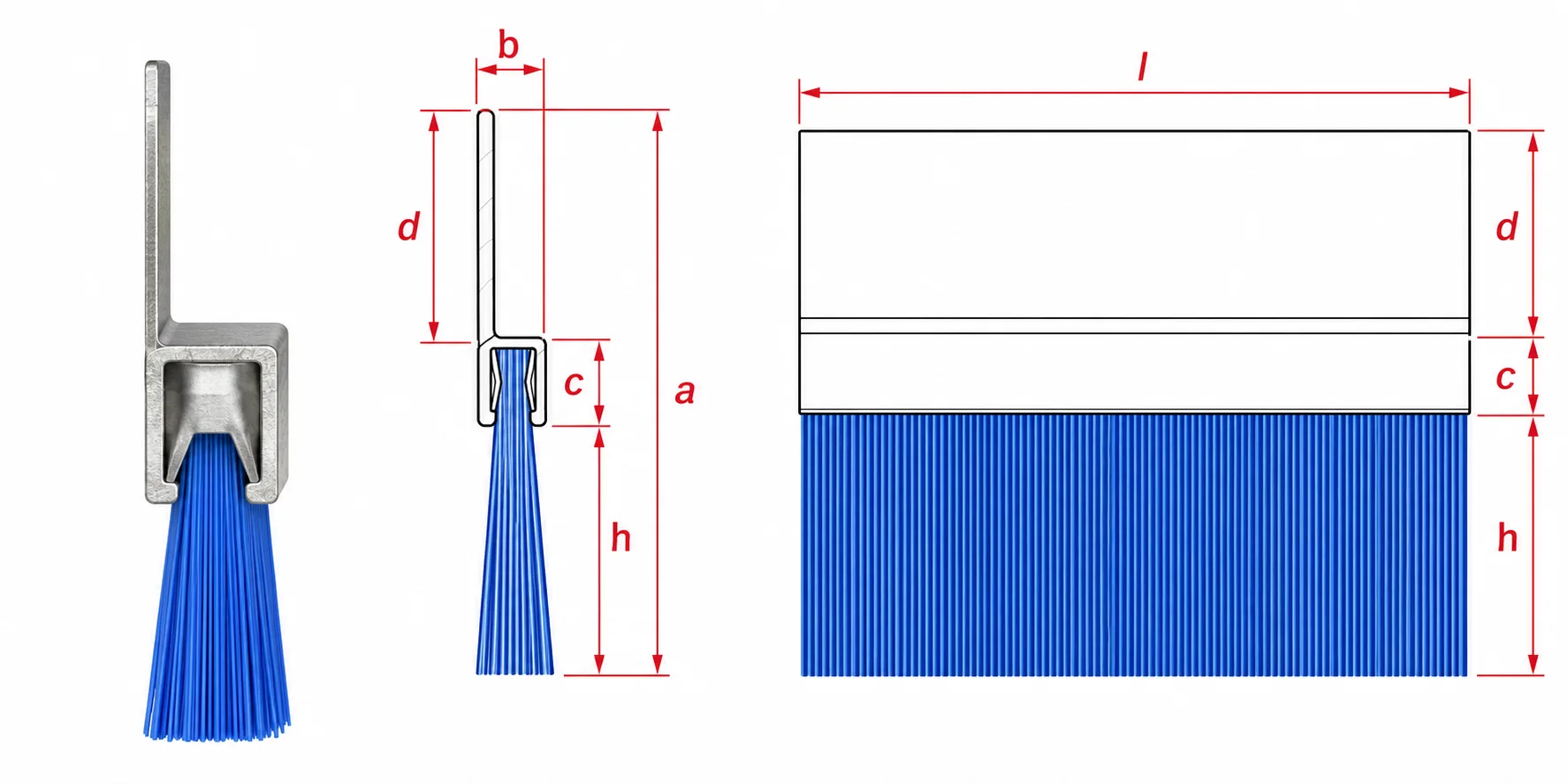

The brush must match the channel and mounting system—not just the trim height. Share the channel section, mounting direction, filament details, length, and operating conditions for an accurate fit.

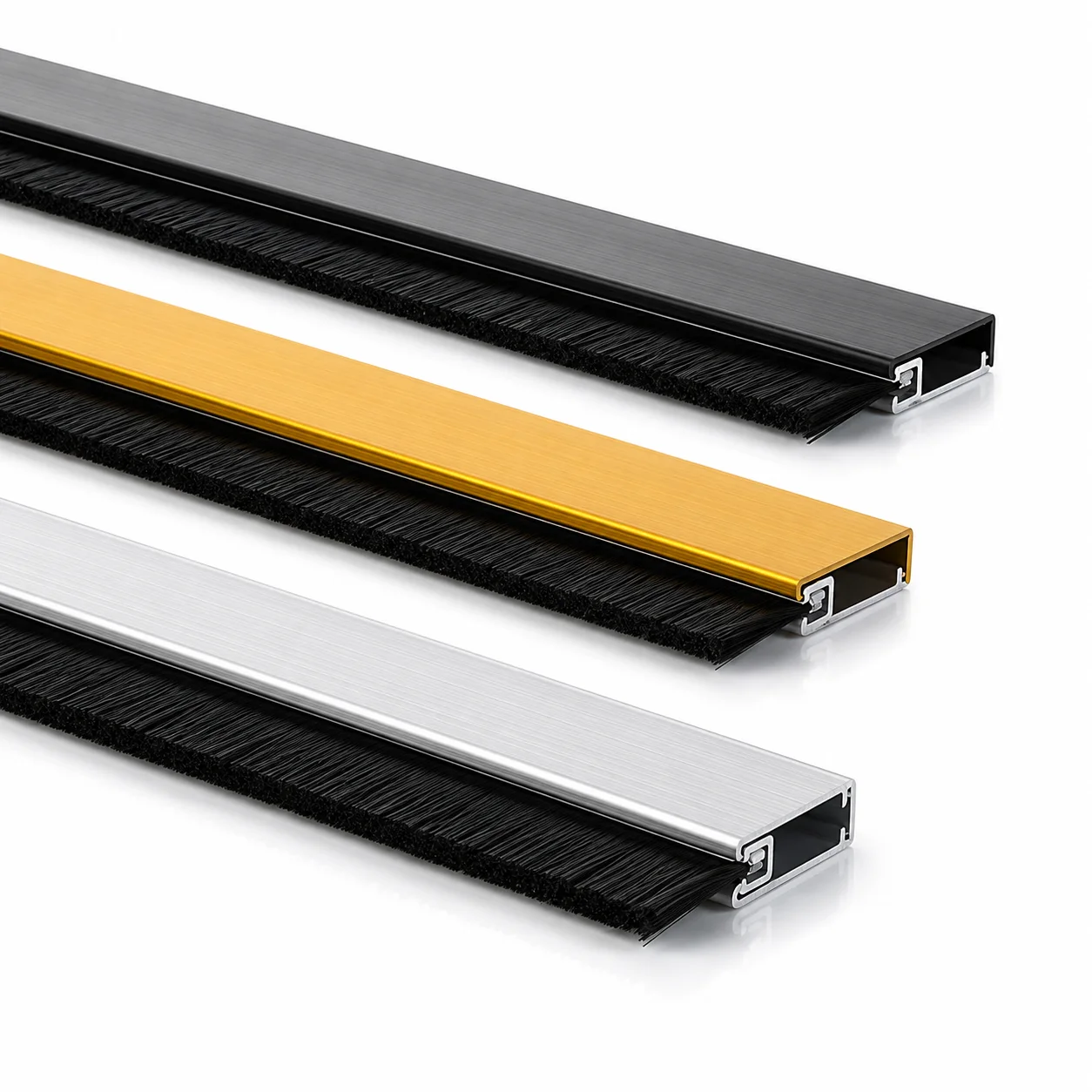

Choose the construction that fits the opening, mounting track, contact direction, and service duty. Final availability is confirmed against your drawing, sample, and quantity.
The carrier material affects stiffness, corrosion resistance, weight, surface finish, and installation compatibility. Final alloy, grade, thickness, and surface treatment are confirmed against the drawing and service environment.
For general industrial sealing and guiding where a coated steel carrier is suitable. Confirm the base steel grade and zinc coating.

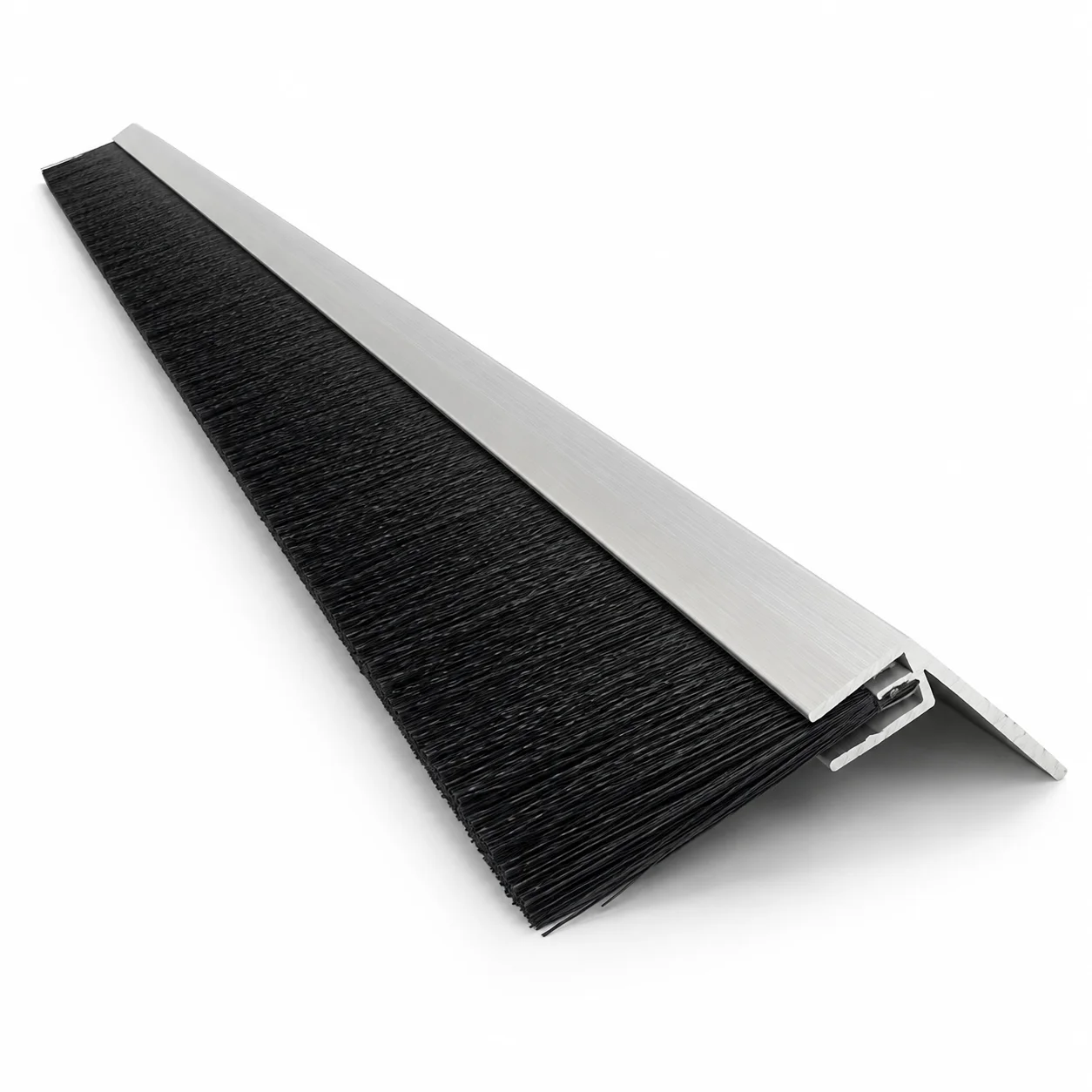

A lightweight carrier option for profile-mounted brushes. Confirm alloy, temper, wall thickness, and any forming limits.
For applications that call for an aluminum profile with a specified surface finish. Confirm alloy, anodizing specification, and thickness.
For projects where corrosion resistance or washdown exposure makes stainless a better carrier choice. Confirm grade and finish.
If the installed holder uses another metal or a special surface treatment, send the existing profile or drawing so it can be reviewed before quoting.
Choose the filament according to the contact surface, wear, moisture, chemicals, temperature, and static-control requirements.

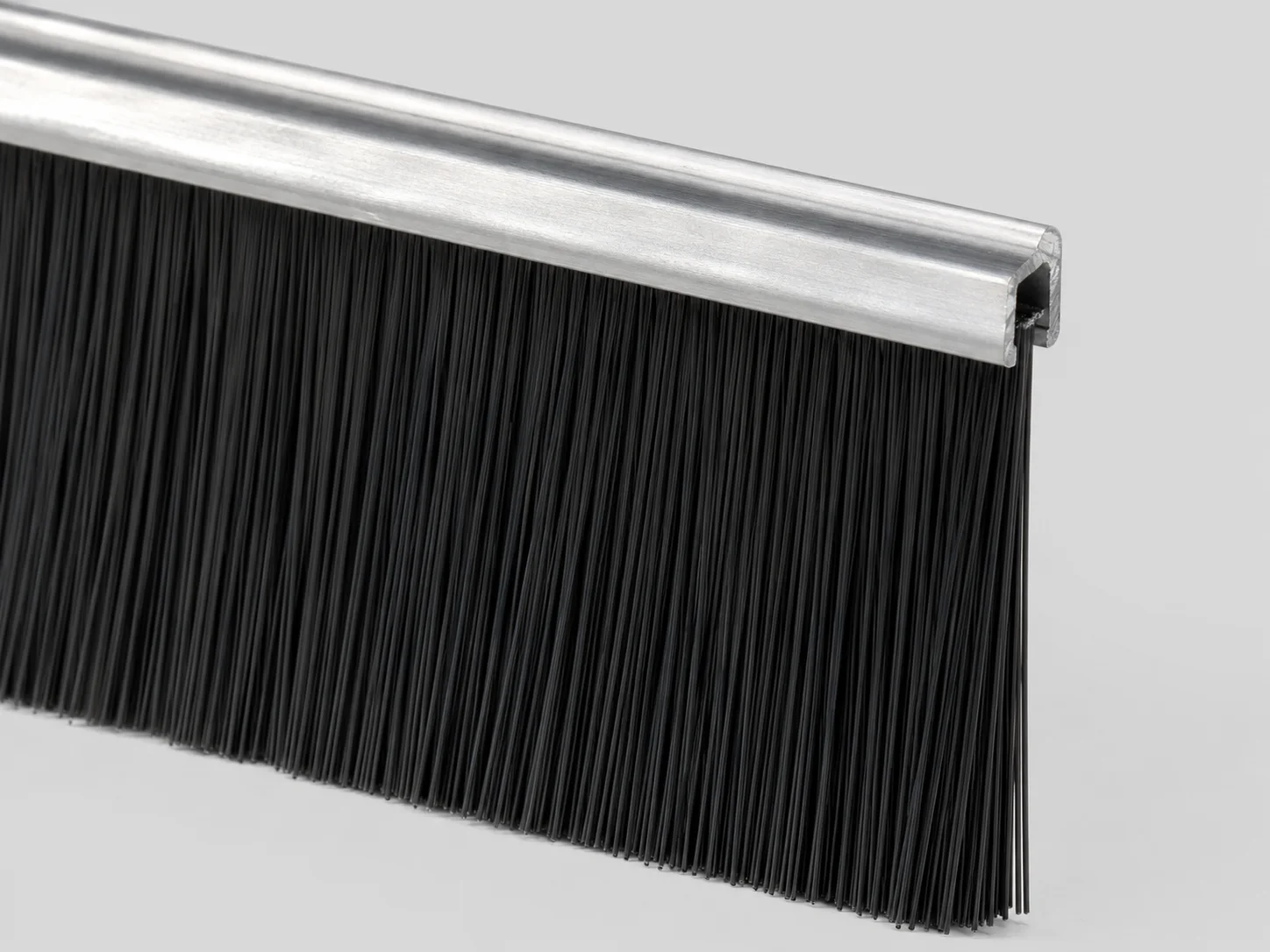

Including high-density PA for general sealing, guiding, wiping, or higher-fill applications.

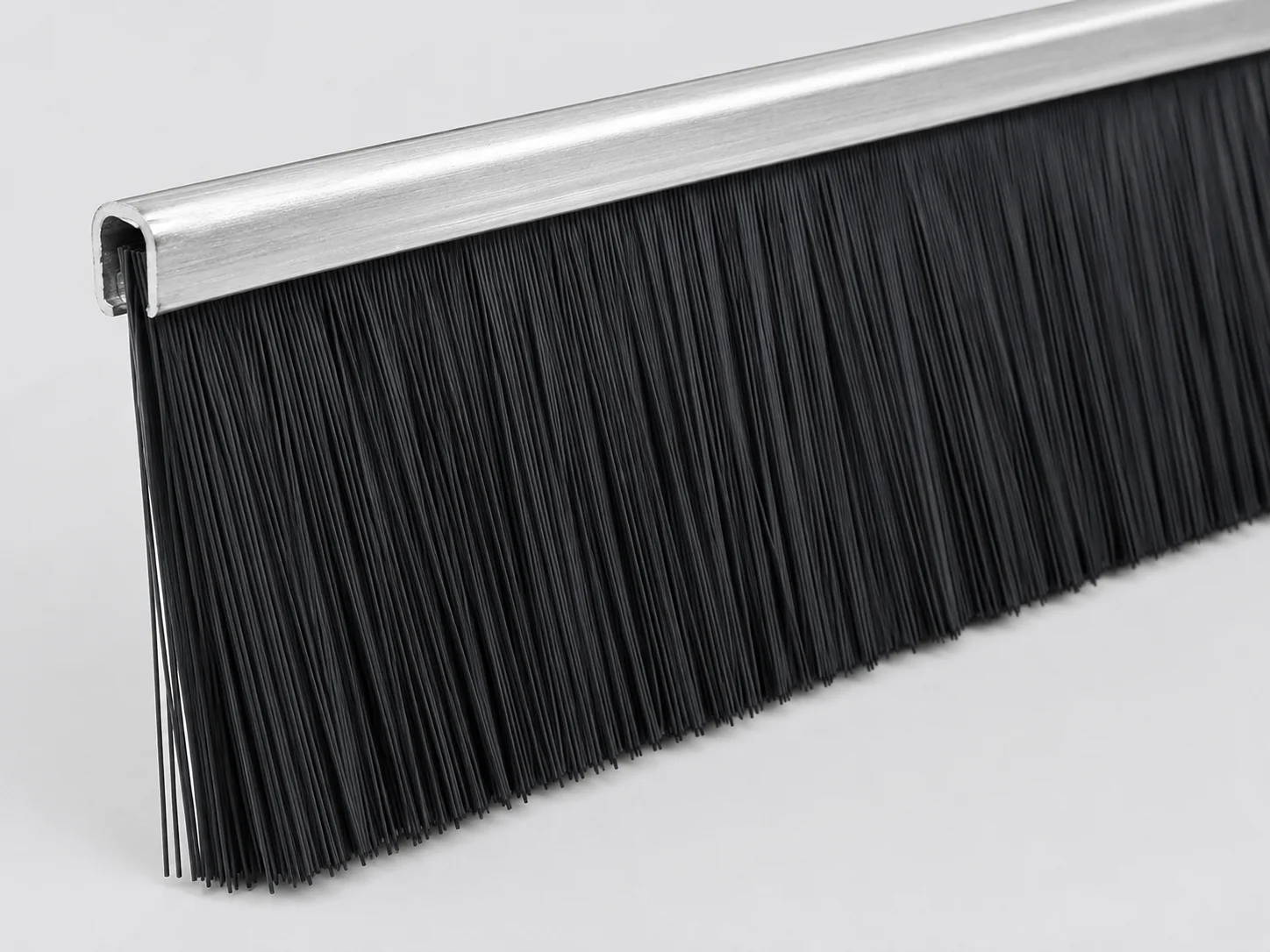

Synthetic options for moisture, washdown, and application-specific flexibility.

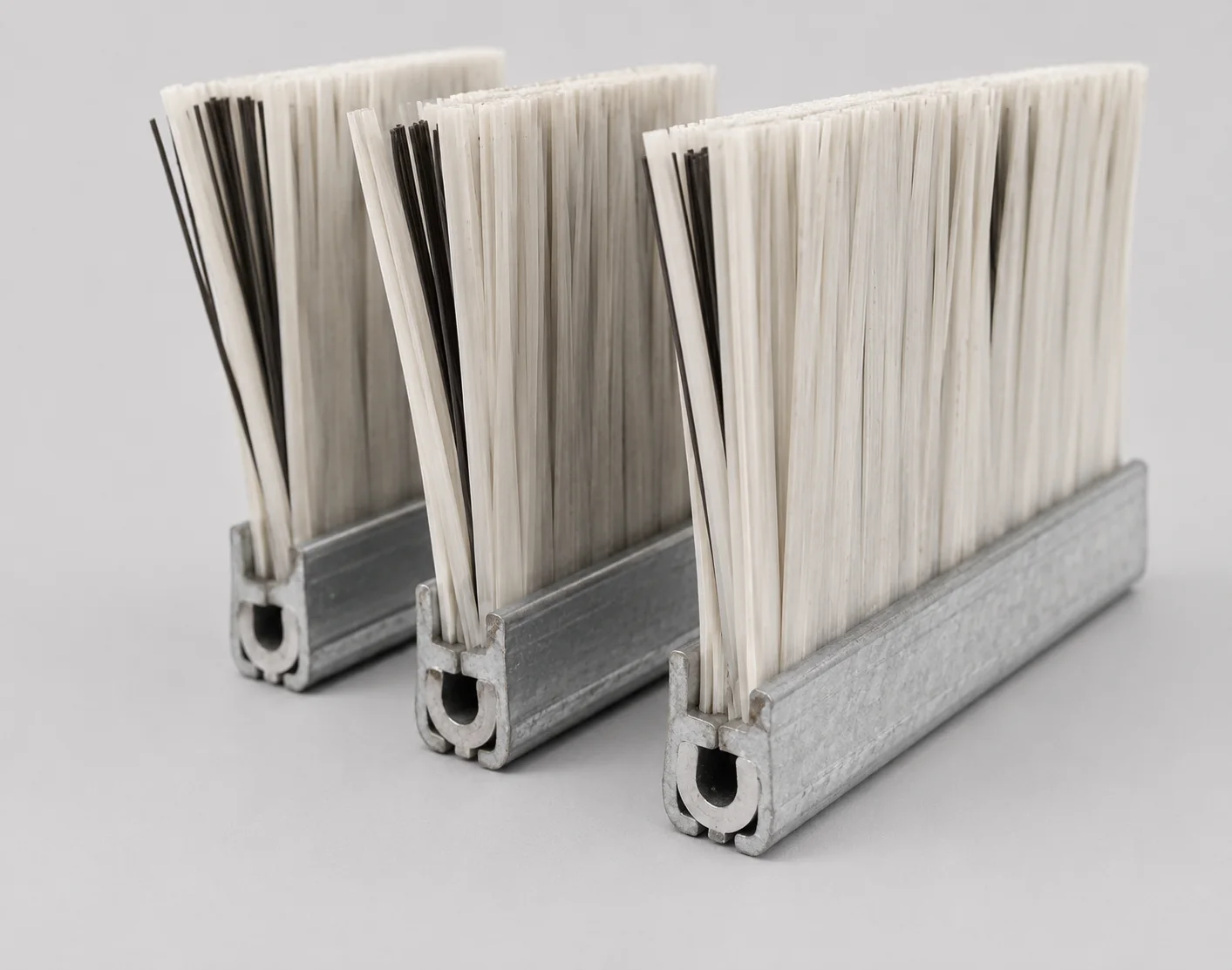

A reinforced machine-brush construction: synthetic bristles form the working edge while flat wire is retained inside the channel.

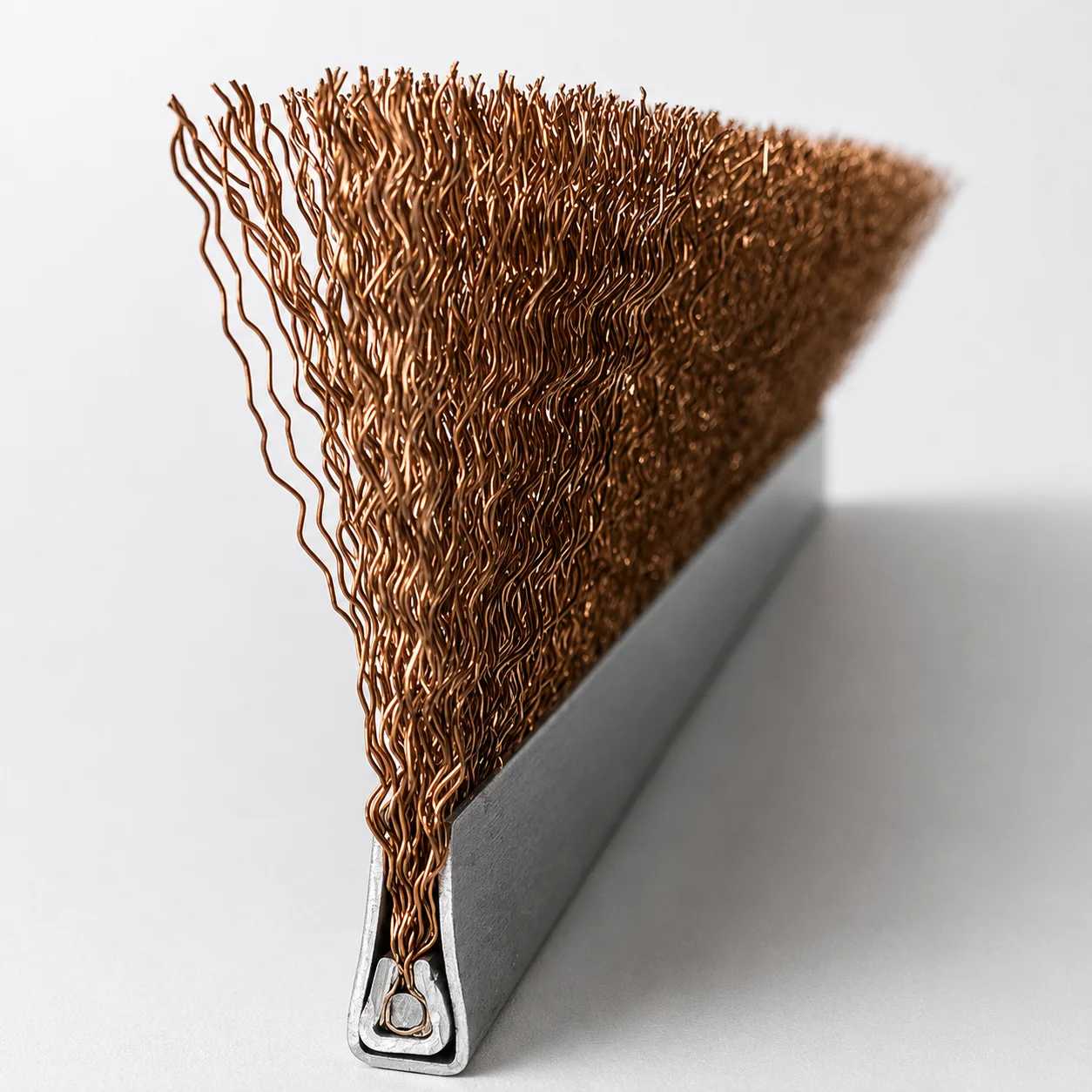

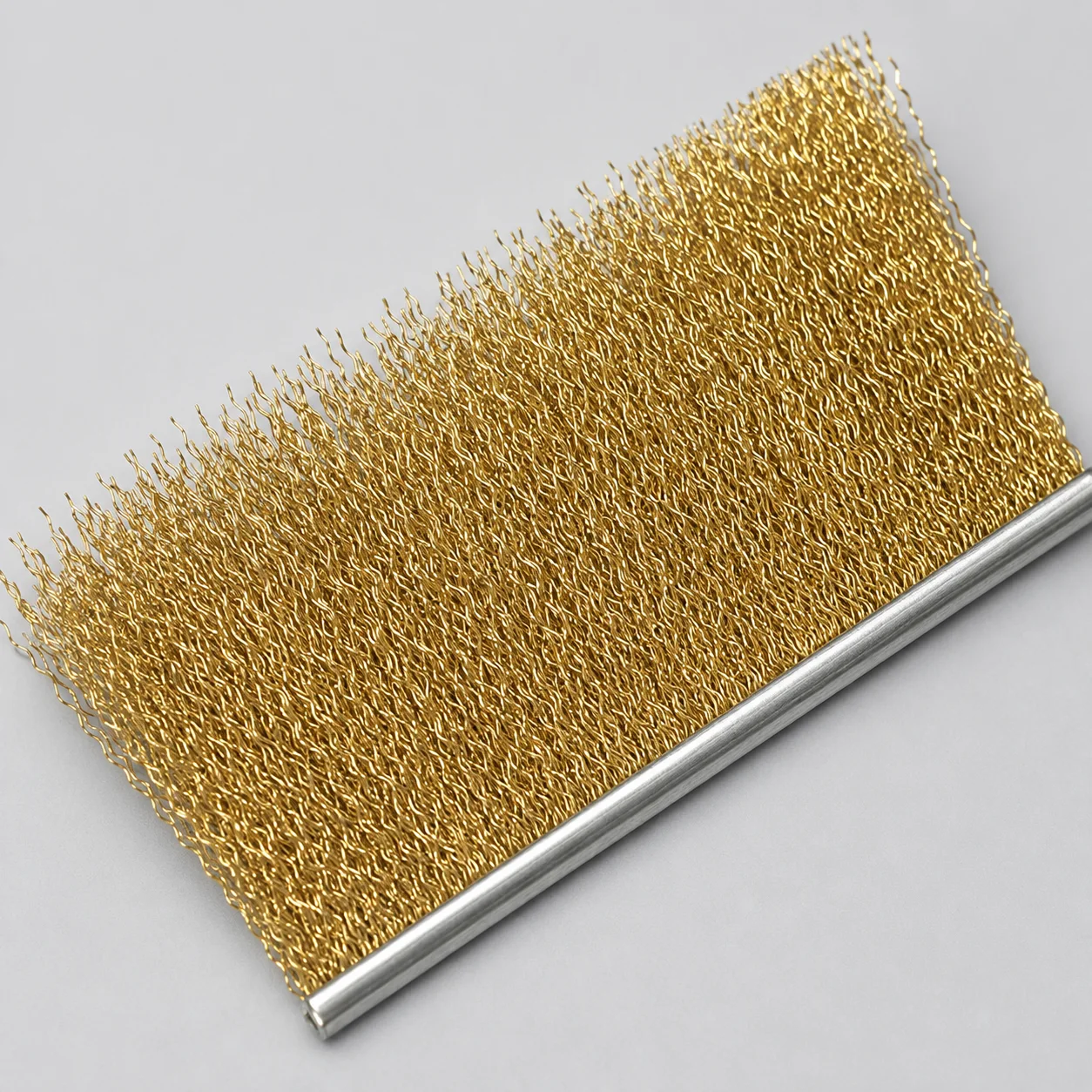

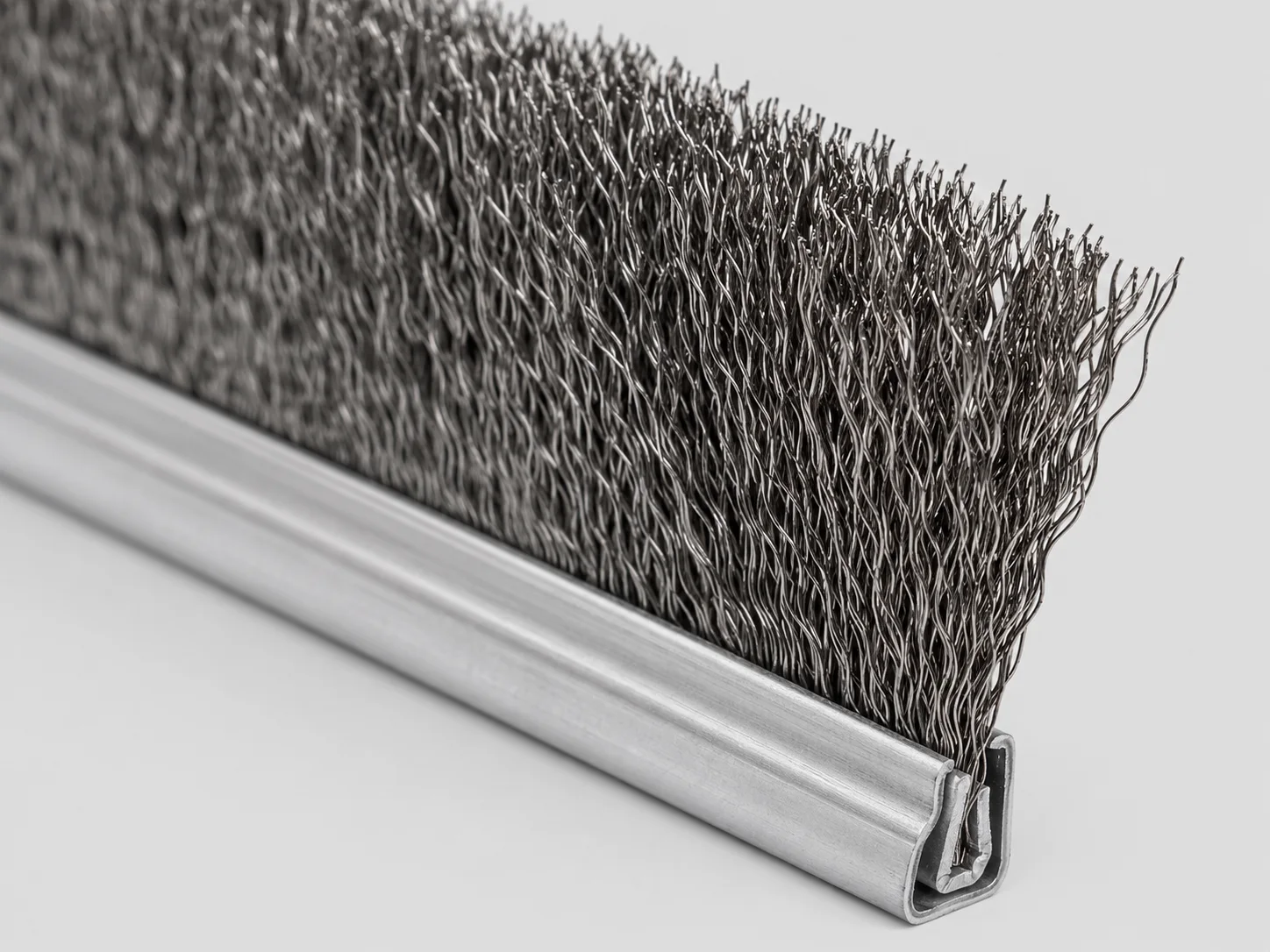

Steel, stainless steel, brass, or phosphor bronze for brushing, polishing, rust removal, or selected metal-contact surfaces.

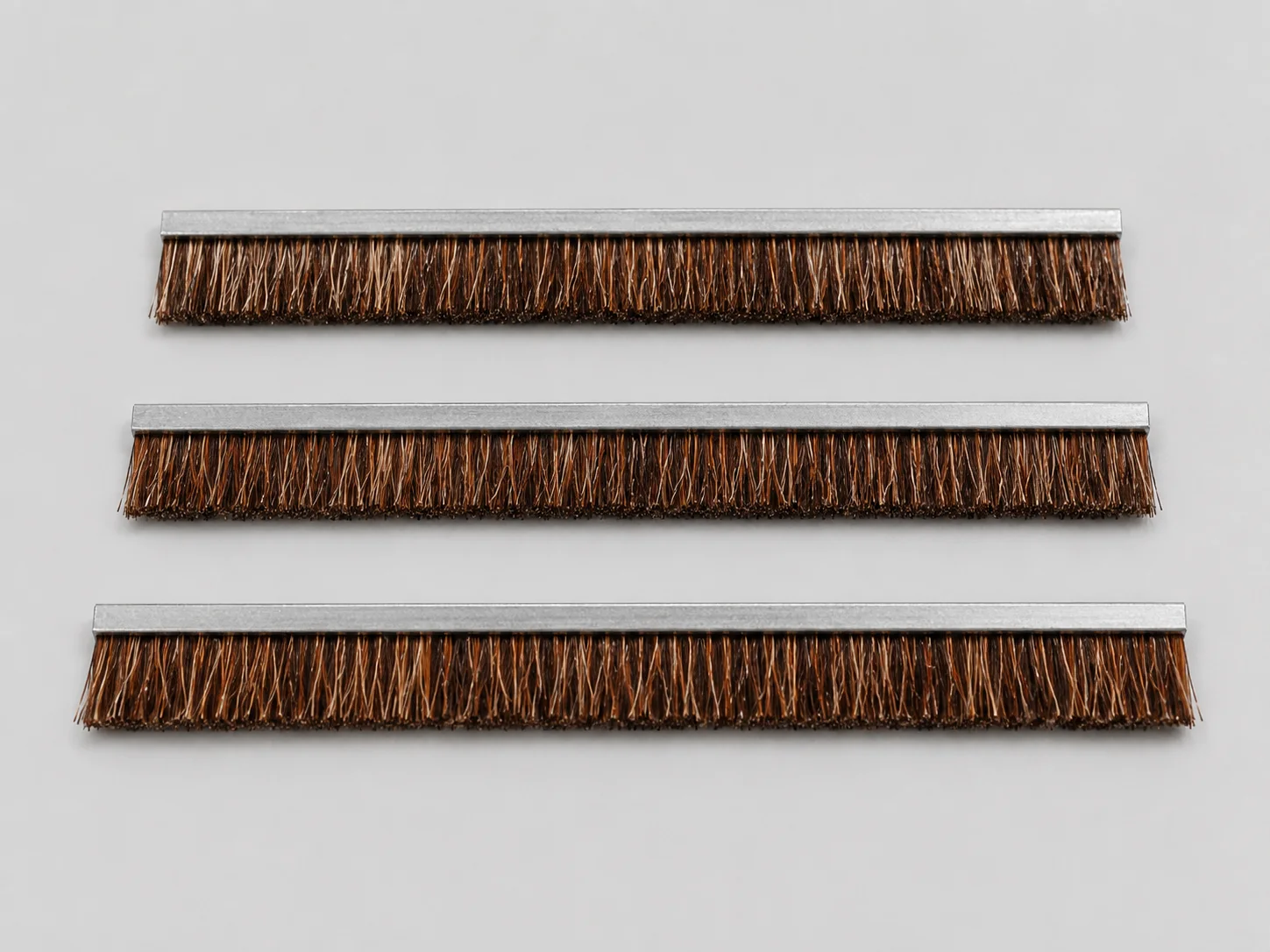

Natural-fiber options, including horse hair, for soft dusting and light-contact work.

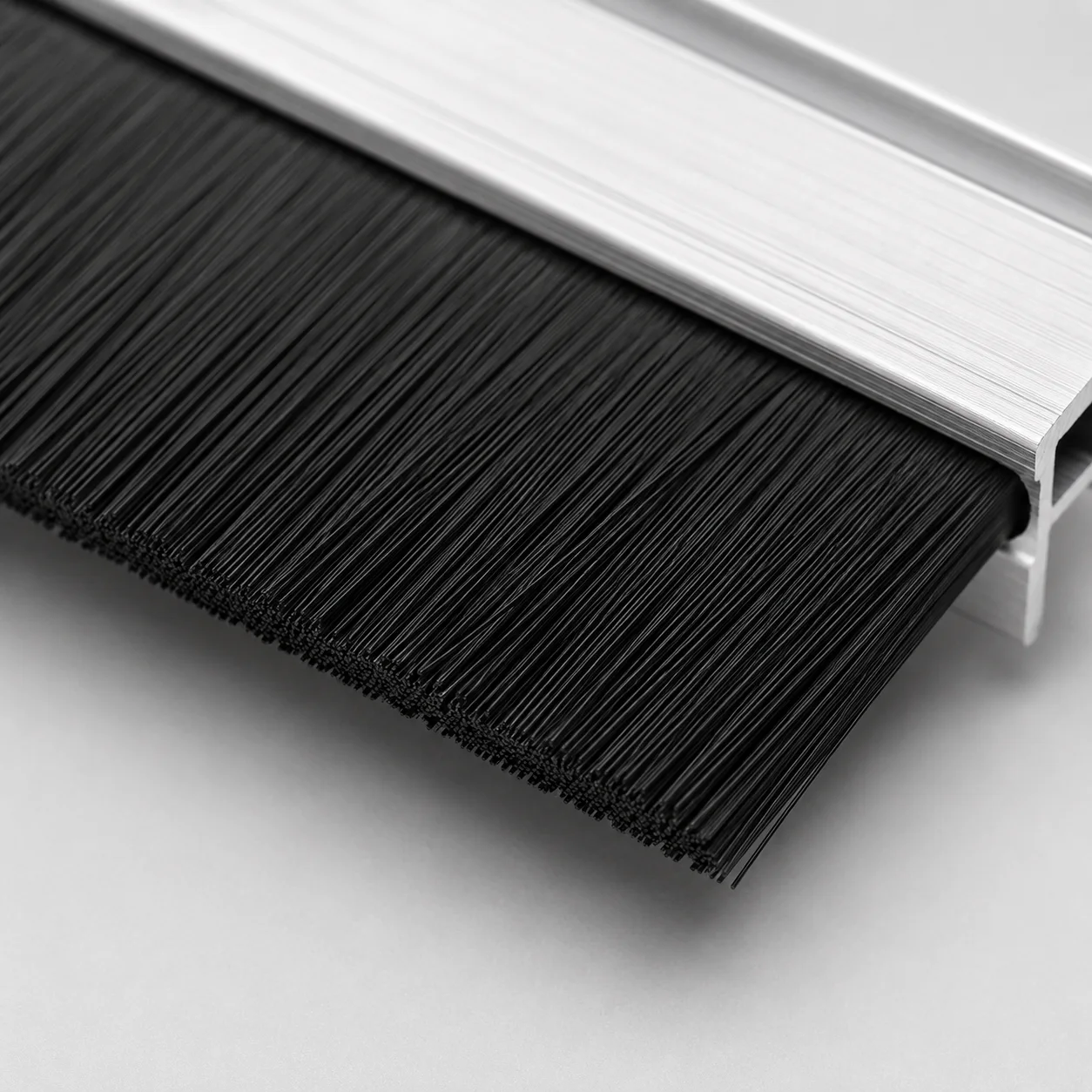

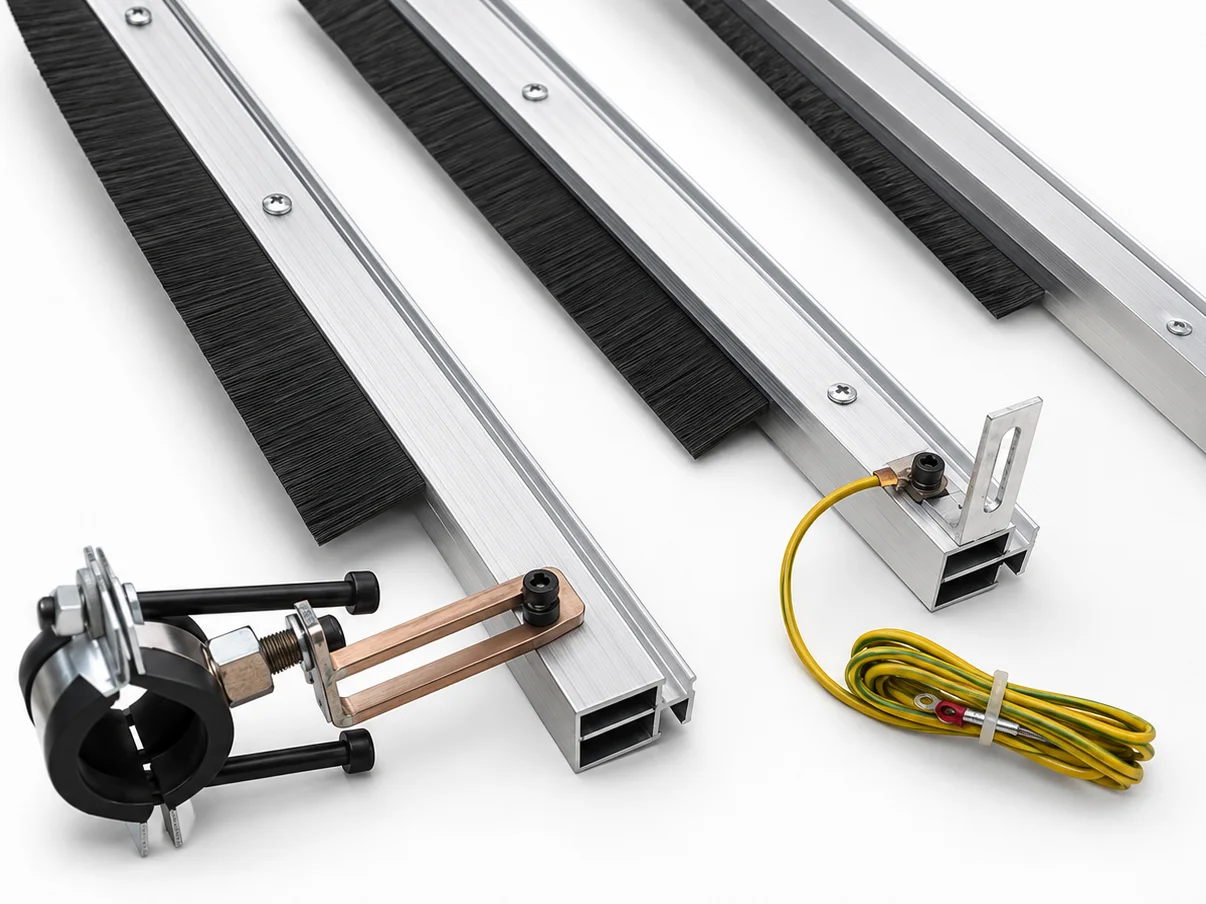

For static-control-related assemblies after the resistance target and test method are defined.

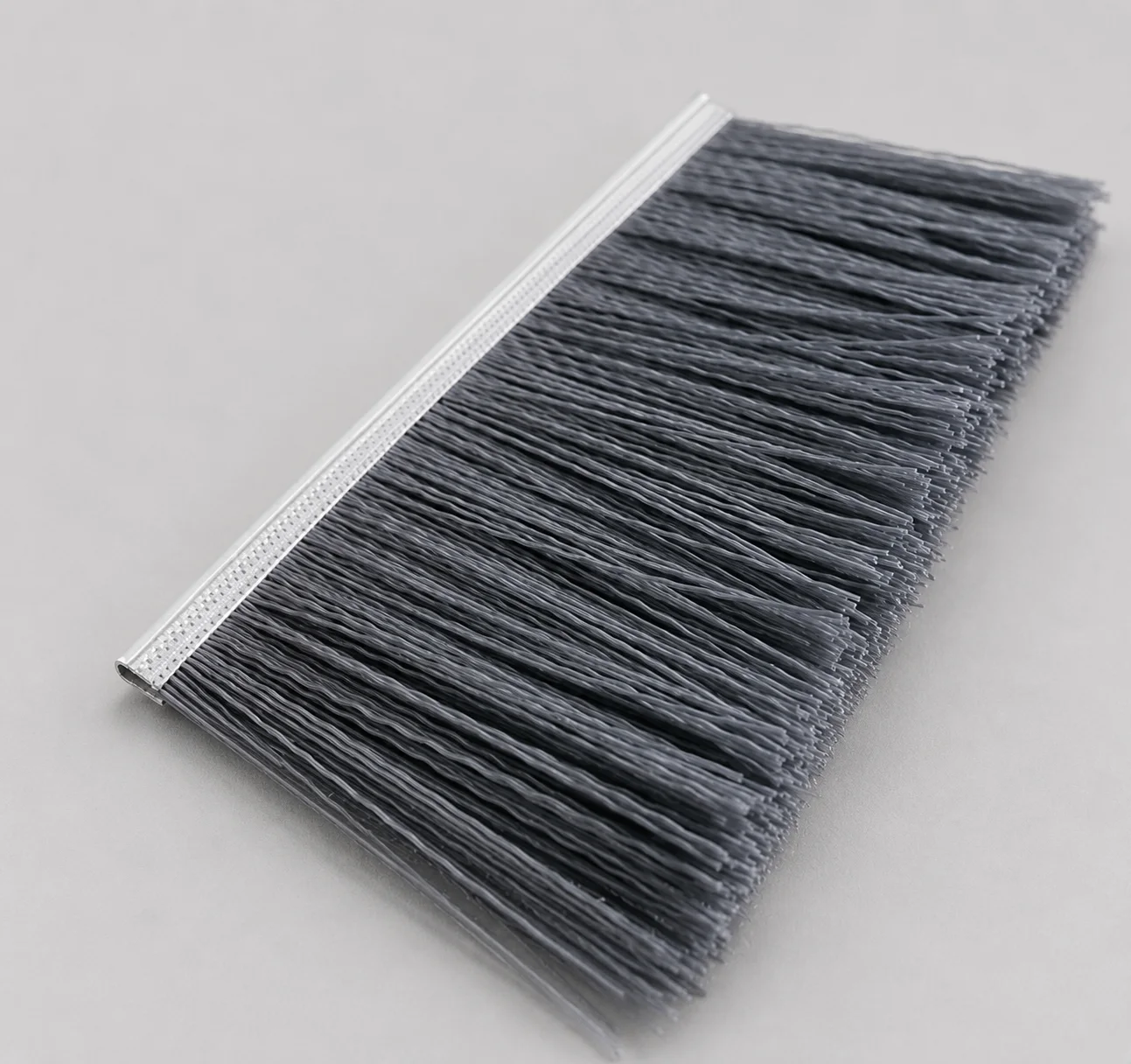

Application-specific options requiring an agreed specification and supporting test information.
Engineering details and quote information
Also include the application, quantity, drawing, dimensioned photo, or old brush sample.
Production and shipping
Metal channel strip brushes can be packed in protective cartons or wooden cases according to brush length, quantity, and shipping requirements.
No. A metal channel strip brush uses a formed metal carrier for structural support. A flexible strip brush uses a softer non-metal backing for flexible mounting or irregular sealing paths.
Start with corrosion exposure, washdown, weight, stiffness, surface finish, and the existing holder. Then match the alloy or grade, thickness, and mounting fit.
Yes. These are application configurations rather than one universal size. Provide the opening, movement, gap, mounting direction, contact surface, and service environment.
Send the old brush, holder, dimensioned photo, or drawing. Include the mounting direction and the surface the filaments contact.

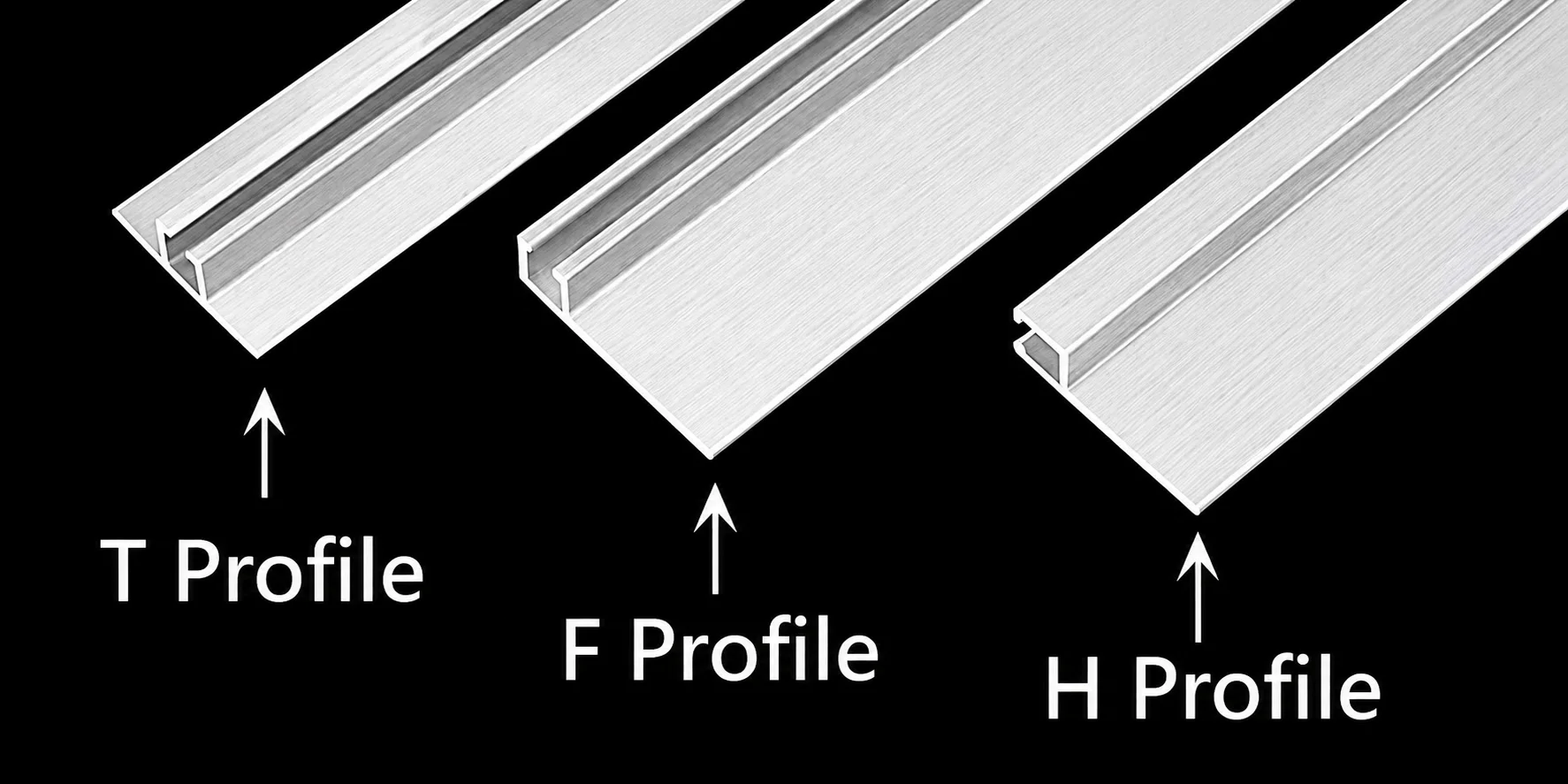

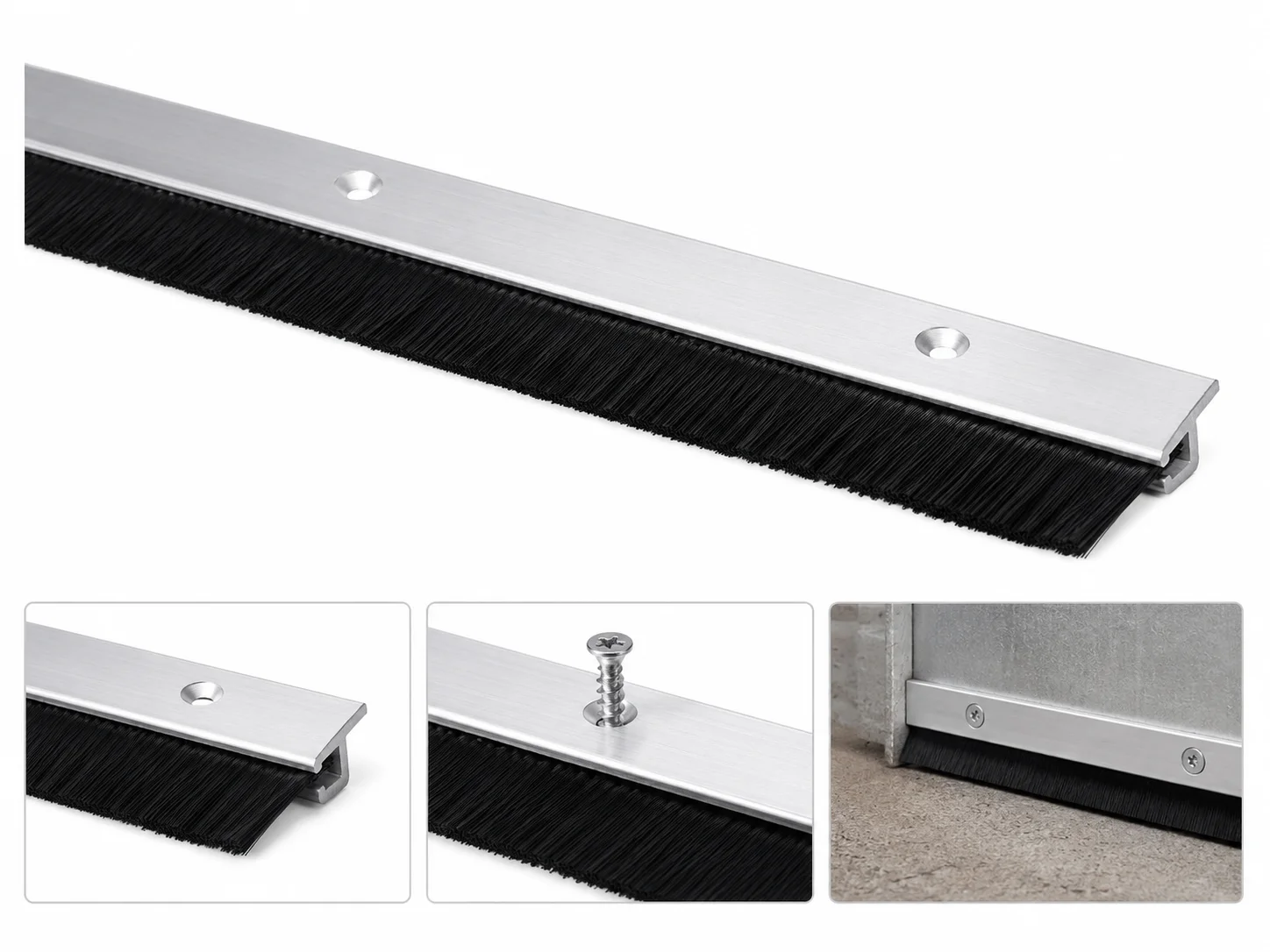

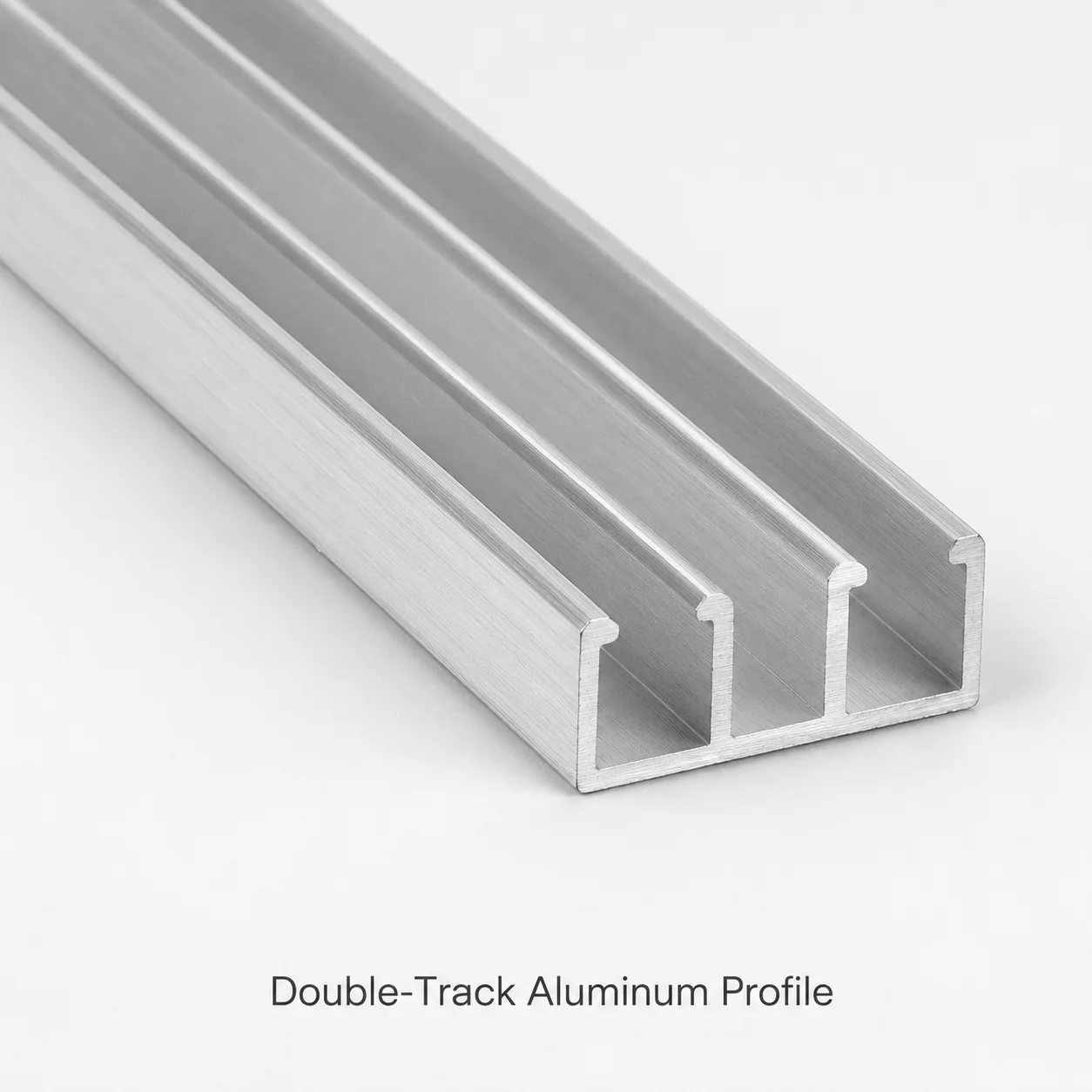

Straight, H/F/T, angled, pre-drilled, double-track, formed, curved, separate-holder, and custom-trimmed configurations can be reviewed from a drawing or sample.
Send the drawing, sample photos, dimensions, application, and quantity. We will review the carrier, profile, filament, trim, and mounting details before quoting.
