Custom Ostrich Feather Roller Brushes
Gentle dry-contact roller brushes for removing fine dust from automotive body surfaces before painting.
Feather modules with wooden or PP cores can be produced to an approved drawing, including the working width, outside diameter, profile, bore, and shaft interface.
Send Your DrawingWhat Is an Ostrich Feather Roller Brush?
An ostrich feather roller brush is a rotating dry-cleaning brush used to lift fine dust from sensitive surfaces.

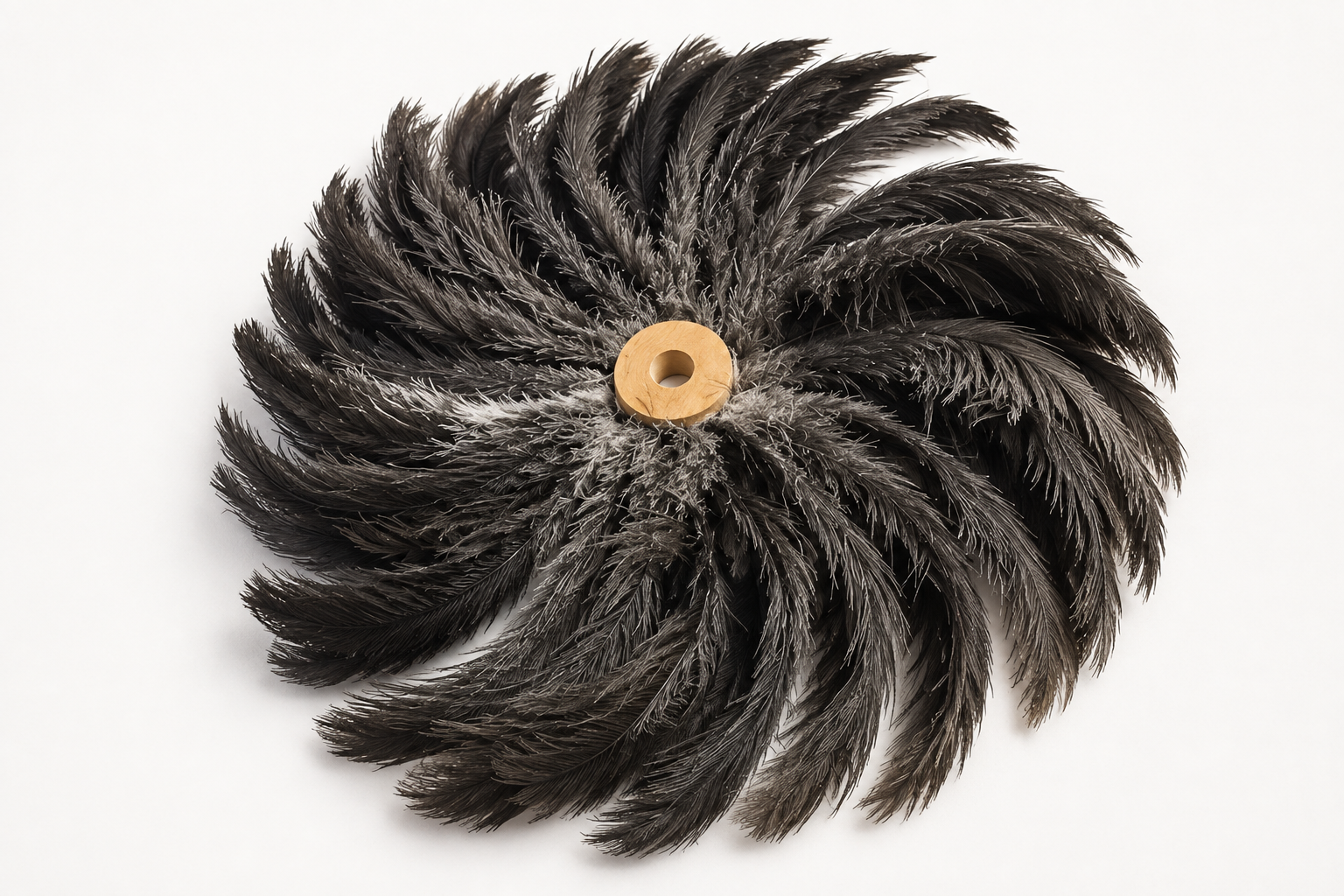

Soft natural feathers are mounted in wooden or PP core sections and assembled to the required working width. The main industrial application is automotive body cleaning before painting.
Automotive Pre-Paint Body Dust Removal

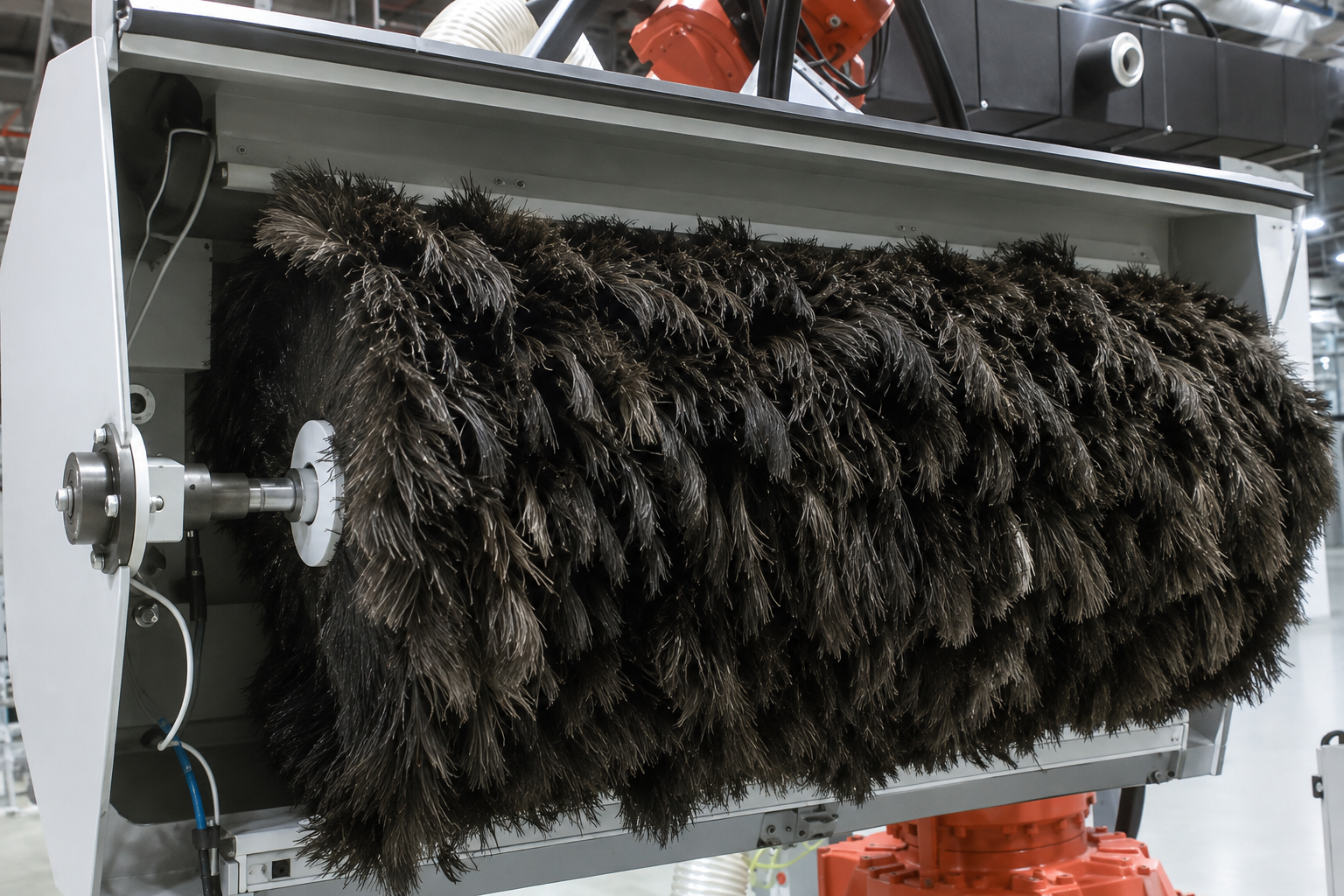

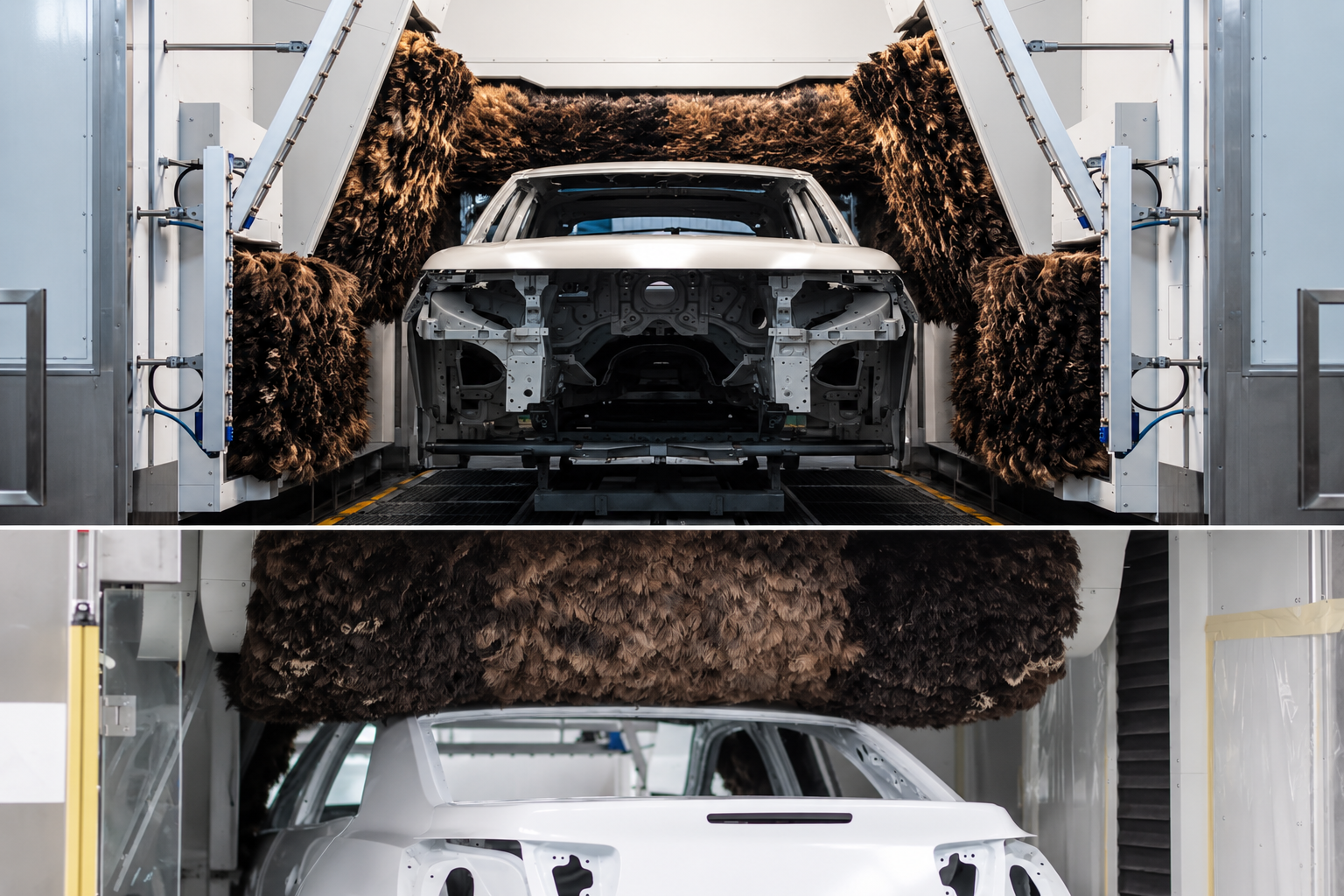

Ostrich feather rollers make low-pressure contact with primed car bodies and other prepared surfaces to remove loose dust before painting.
In an automated paint line, the roller normally works as part of a complete cleaning system.
Related industry: Automotive Manufacturing- 01Ionization
- 02Feather Roller Contact
- 03Vacuum Extraction
- 04Painting
The ionization system controls static charge, while vacuum extraction removes collected particles from the feathers.

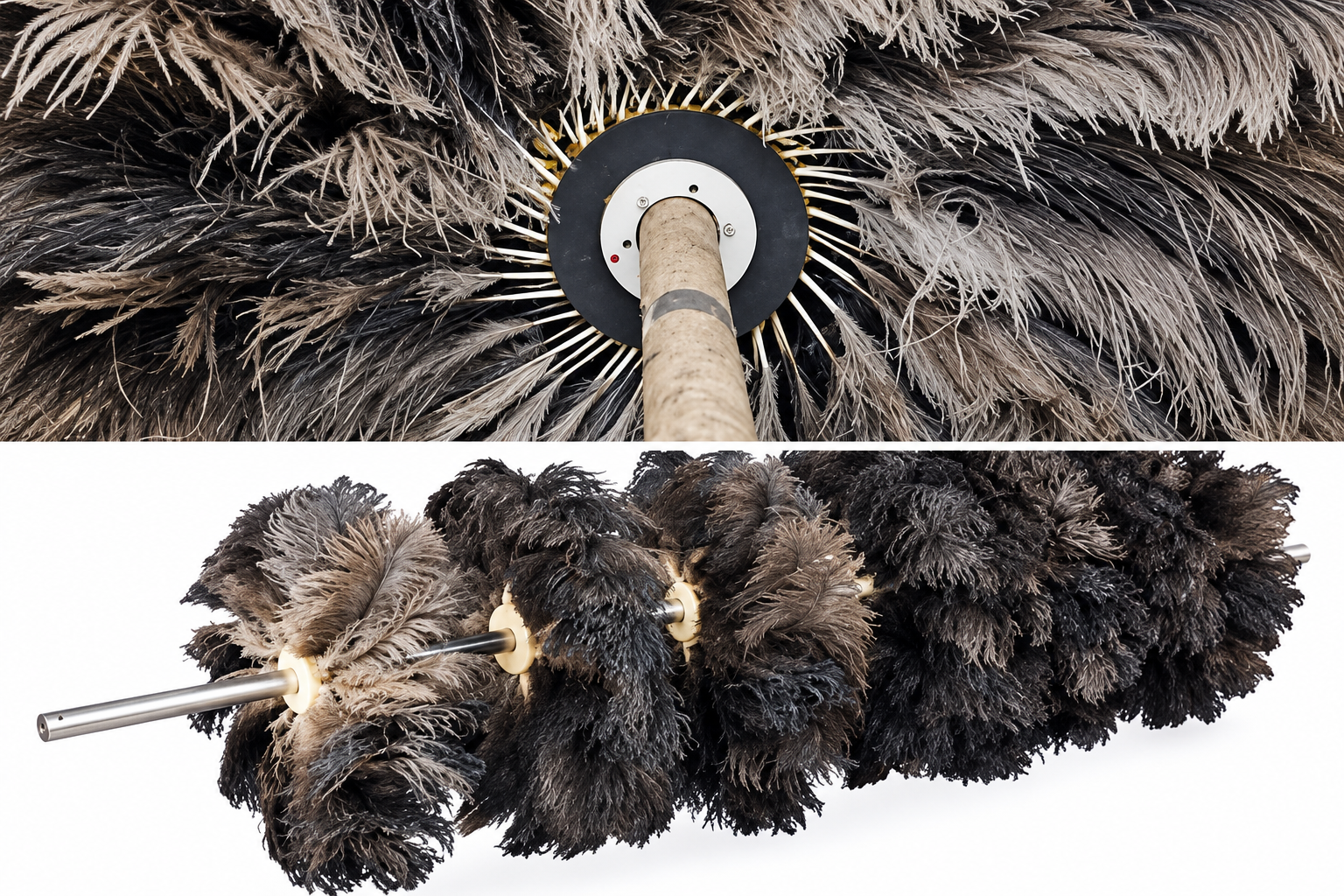

Custom Roller Construction & Materials
- Selected natural ostrich feathers
- Wooden or PP core construction
- Complete roller brushes or modular replacement brush rings
- Straight or contoured working profiles
- Custom outside diameter, face width, and overall working width
- Custom inner bore, key, and shaft interface
- Custom module spacing and feather arrangement
- Drawing-based repeat and bulk production
Dimensions and construction follow the approved drawing or measured sample.
FAQ
Key details for complete rollers, replacement modules, and automotive paint-line projects.
Do you supply a complete feather roller or individual brush rings?
Both formats can be reviewed. We can manufacture a complete roller brush or modular feather brush rings for installation on the customer's existing shaft, according to the approved drawing.
Which dimensions are required for a quotation?
Provide the finished outside diameter, face width, overall length, core diameter, bore, key or shaft interface, module width, required roller profile, and quantity. A clear drawing is the best starting point.
Should I choose a wooden or PP core?
The core should match the existing machine design, mounting method, operating environment, and approved replacement specification. Wooden and PP core constructions are available.
Can you match an existing automotive paint-line roller?
Yes, after the dimensions and interface have been verified. Send the approved drawing or an existing sample. The machine brand and model are helpful references but do not replace dimensional confirmation.
Are the ionization and vacuum systems included?
Brushcustom supplies ostrich feather roller brushes and replacement brush modules only. Ionization equipment, vacuum extraction systems, robots, controls, and safety systems are not included.
Can a sample be approved before volume production?
Sample or first-article approval can be arranged when specified during quotation. Repeat and bulk production then follows the approved drawing, sample, and inspection requirements.
Drawing-Based OEM & Replacement Production
Send a clear drawing or approved sample. We support sample approval and repeat or bulk production of complete ostrich feather roller brushes and replacement feather brush modules for automotive paint-line equipment.
