Replacement Components for Sheet-Metal Equipment
Replacement Brush Panels for Turret Punch Tables
Custom replacement brush panels and lath-style modules for turret-punch and punch-laser brush tables. Manufactured from an approved drawing, measured existing panel, or physical sample for single replacements and matched-set orders.
01
Panels, lath modules, and special-shaped sections
02
Made from confirmed dimensions or an approved sample
03
Single-panel or matched-set replacement supply
04
First-article production can be reviewed when required
Sheet Support & Surface Protection
What a Brush-Table Panel Does

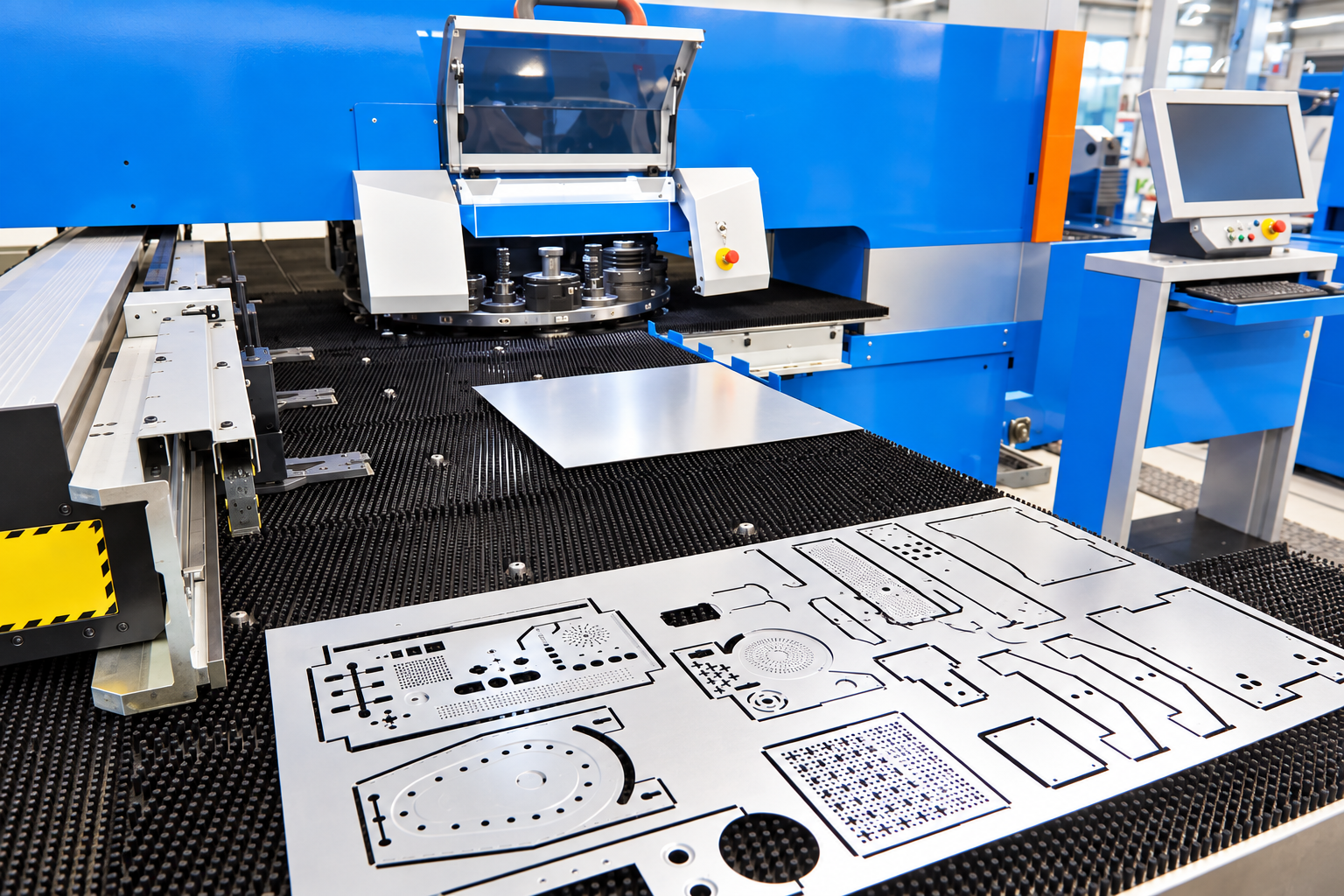

Brush tables support sheet as it moves through sheet-metal equipment, reduce hard contact with the machine surface, lower sliding resistance, and allow some loose debris to fall between tuft groups. Worn, contaminated, or uneven brush sections can increase drag, marking, noise, and unstable sheet movement.
No brush table is universally non-marking. Chips, damaged filaments, incorrect working height, unsuitable stiffness, and uneven old and new panels can still mark sensitive sheet. Test the selected construction with the actual sheet finish before releasing a replacement batch.
Supported Machine Positions
Where Replacement Brush Panels Are Used
Punch-laser combination machine support and transfer areas
Panel-bending machines that use replaceable brush-panel fields
A brush support table is not the laser cutting bed. Show the installation position in the drawing or photographs so the required component can be identified correctly.
Drawing-Based Replacement Supply
Replacement Components We Can Manufacture

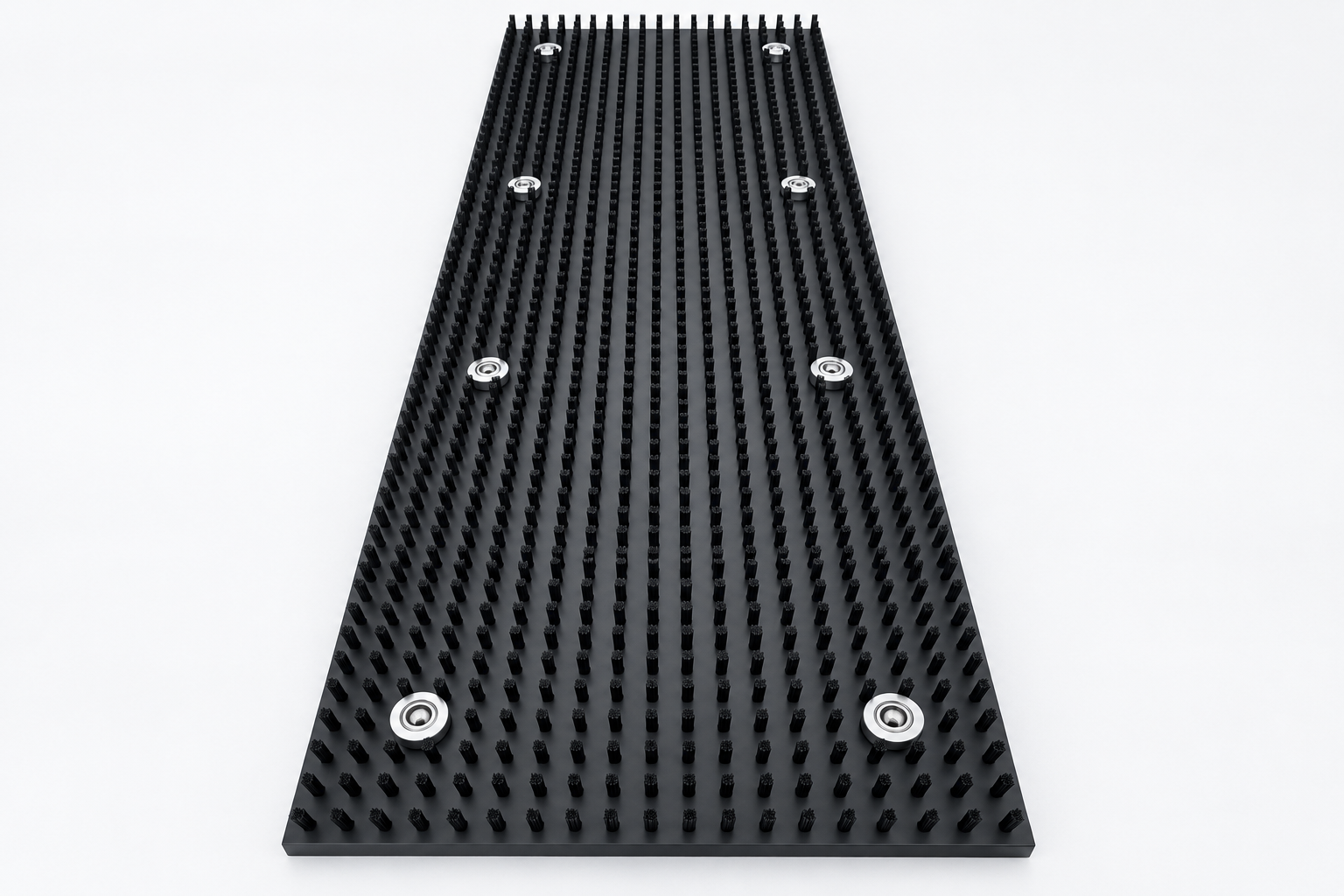

- Staple-set brush panels
- Long, narrow lath-style brush modules
- Special-shaped panels with cutouts or unfilled zones
- Matched panel sets for a consistent working surface
Brushcustom supplies the replaceable brush components. A complete metal table, machine frame, or drive system is outside the standard scope unless separately reviewed and confirmed.
Fit & Working-Height Review
Match the Existing Brush Field
Machine make, model, year, and existing part references help identify the application, but they do not confirm fit. Layouts can vary by machine revision or later modification.
Send a dimensioned drawing, measured existing panel, or physical sample to begin review. Photographs and machine information provide additional context. Critical dimensions, mounting details, working height, filament, and tuft layout must be confirmed before production.
Machine References We Can Review
Brushcustom can review replacement panels removed from Amada, TRUMPF, Salvagnini, LVD/Strippit, Euromac, Muratec, Prima Power, and other sheet-metal machines when a dimensioned drawing, measured panel, or physical sample is provided. Brand and model information identifies the application only; it does not confirm direct fit, OEM approval, or interchangeability.
Replacement-Matching Process
How Replacement-Matching Risk Is Controlled
Initial review
Compare the drawing, measured panel, sample, photographs, and machine position.
Dimension confirmation
Record the base geometry, mounting, working height, filament, tuft layout, and quantity per set.
First article when required
Produce one unit for installation and sheet-support testing before the remaining batch.
For repeat orders, reference the confirmed drawing, sample, or Brushcustom part record.
RFQ Information
What to Send for a Replacement Brush-Panel Quote
An approved production drawing is not required for the initial enquiry, but all critical dimensions and construction details must be confirmed before manufacturing begins.
Request a Replacement Brush Panel Quote- 01
A dimensioned drawing, measured existing panel, or physical sample
- 02
Machine make, model, year or series, and installation position
- 03
Base shape and size, mounting details, tuft layout, trim height, and filament if known
- 04
Sheet material, finish, thickness and weight range
- 05
Required quantity and whether one panel or a matched set is needed
- 06
Table photographs and an existing part reference when available
Purchasing Questions
Frequently Asked Questions
When should brush-table panels be replaced, and can only one panel be changed?
Inspect the table when filaments remain flattened, working height develops low spots, tufts are missing, the panel base is damaged, or sheet marking, drag, or noise increases. One panel can be replaced when its finished working height matches the surrounding field. If adjacent panels are worn or uneven, replace a matched group to restore a level support surface.
Will a panel fit just because the machine brand and model match?
No. Layouts and revisions can differ within the same model family. The machine information helps identify the application, but the confirmed panel dimensions and mounting details control fit.
Can I test one panel before ordering a complete set?
First-article production can be reviewed when fit, working height, or sheet-support behavior should be checked before the remaining batch. The test method and approval point are confirmed with the quotation.
Do you supply a complete replacement brush table?
Our standard scope is the replaceable brush component, not the complete metal table or machine assembly. Any complete-table requirement must be reviewed separately.
Turret Punch Brush Panel RFQ
Send Your Brush-Table Replacement DetailsNeed Replacement Panels for a Turret Punch Brush Table?
Send your drawing, measured existing panel, physical sample, machine information, sheet details, quantity, and table photographs. Brushcustom will confirm the manufacturing scope and whether a first article is appropriate before quotation.
