Custom Cow & Livestock Brushes

Custom rotating cow brush rollers, stationary livestock brushes, and fixed scratch brushes for dairy farms, livestock equipment OEMs, and replacement programs.

Send Your Drawing
Brush Formats

Cow & Livestock Brush Types We Customize

A cow brush is a powered or stationary grooming device that lets cattle scratch and groom the head, back, and sides. We manufacture replacement brush rollers, wafer sections, fixed scratch brushes, and confirmed complete assemblies for dairy farms and livestock-equipment OEMs.

01

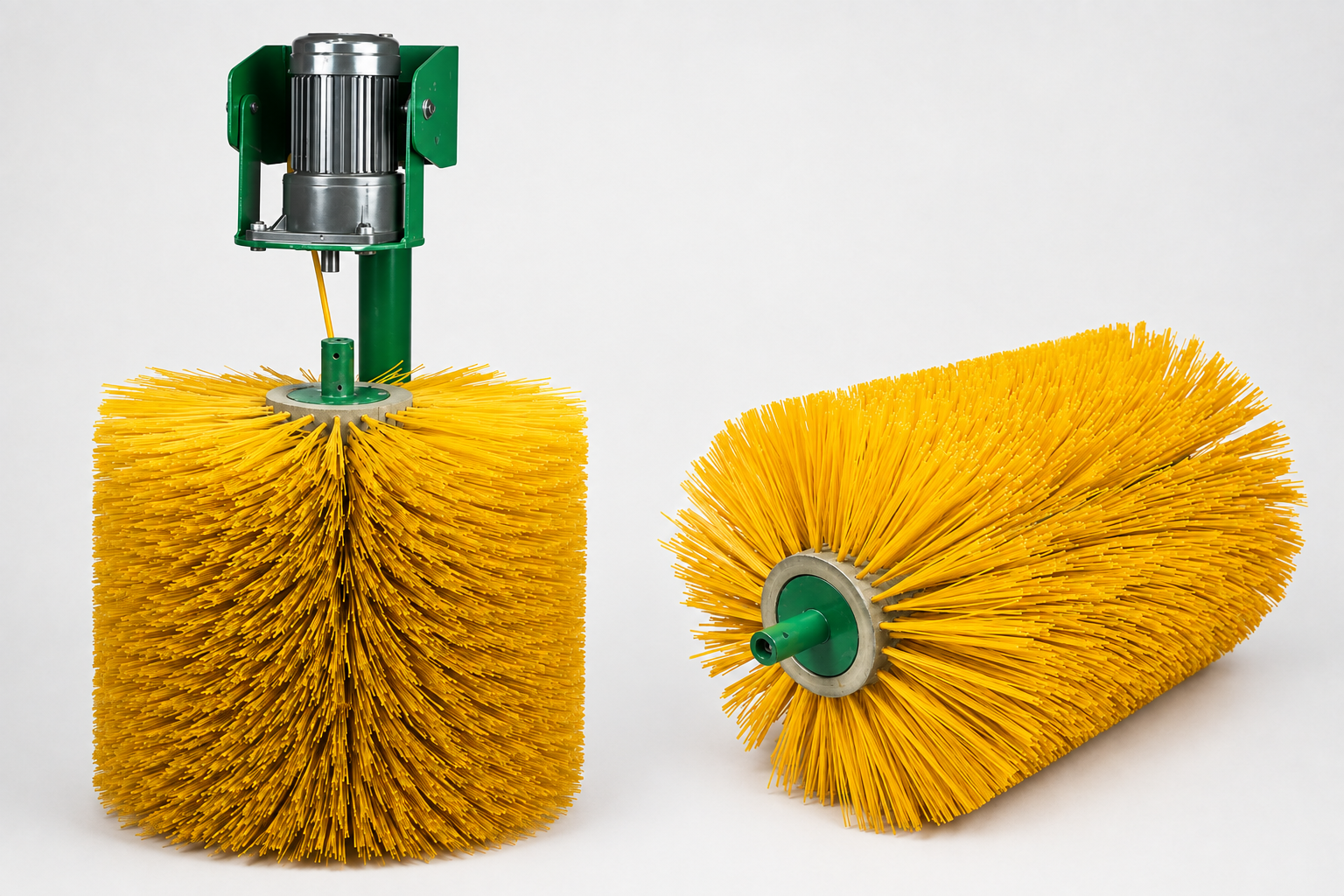

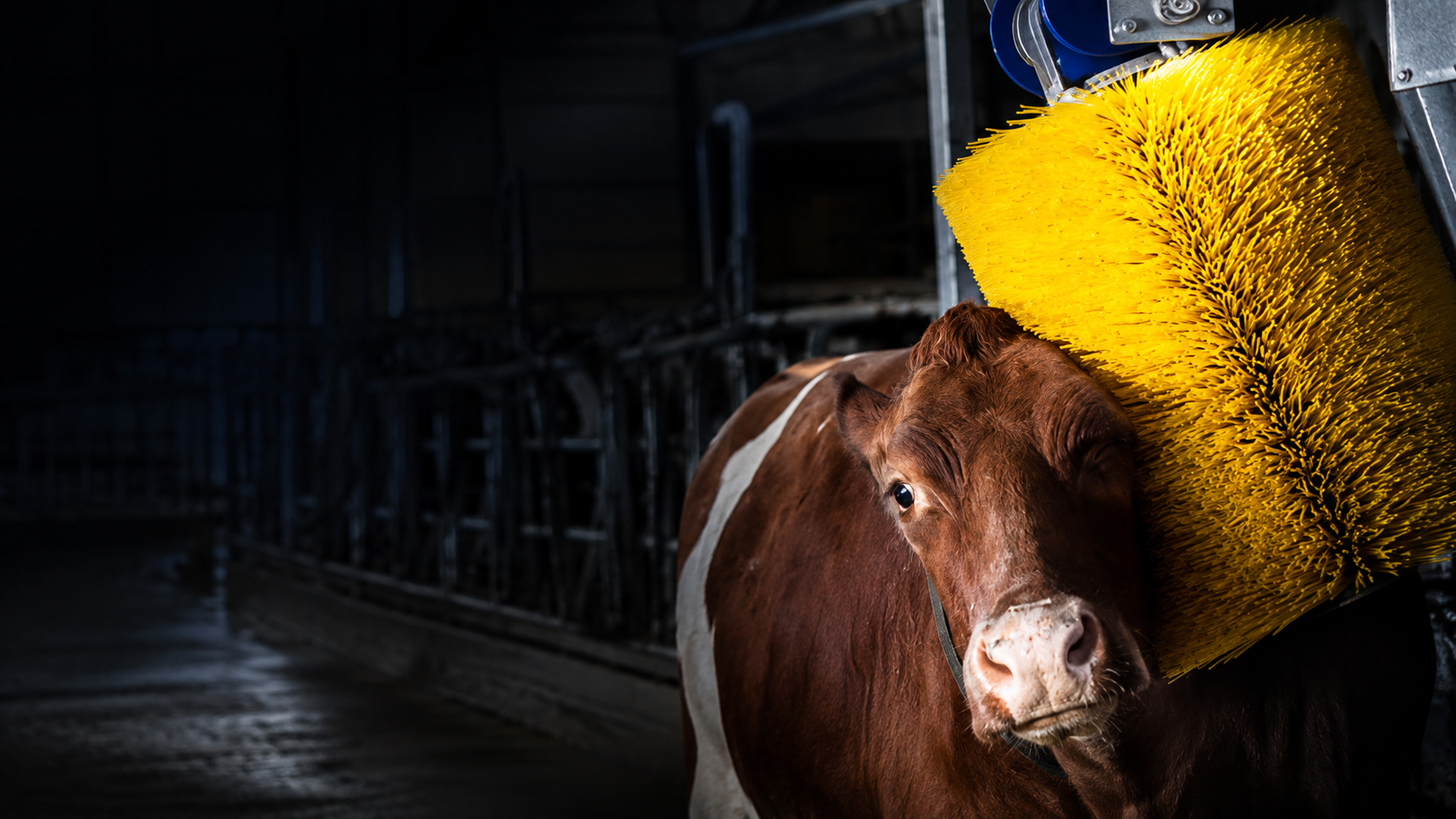

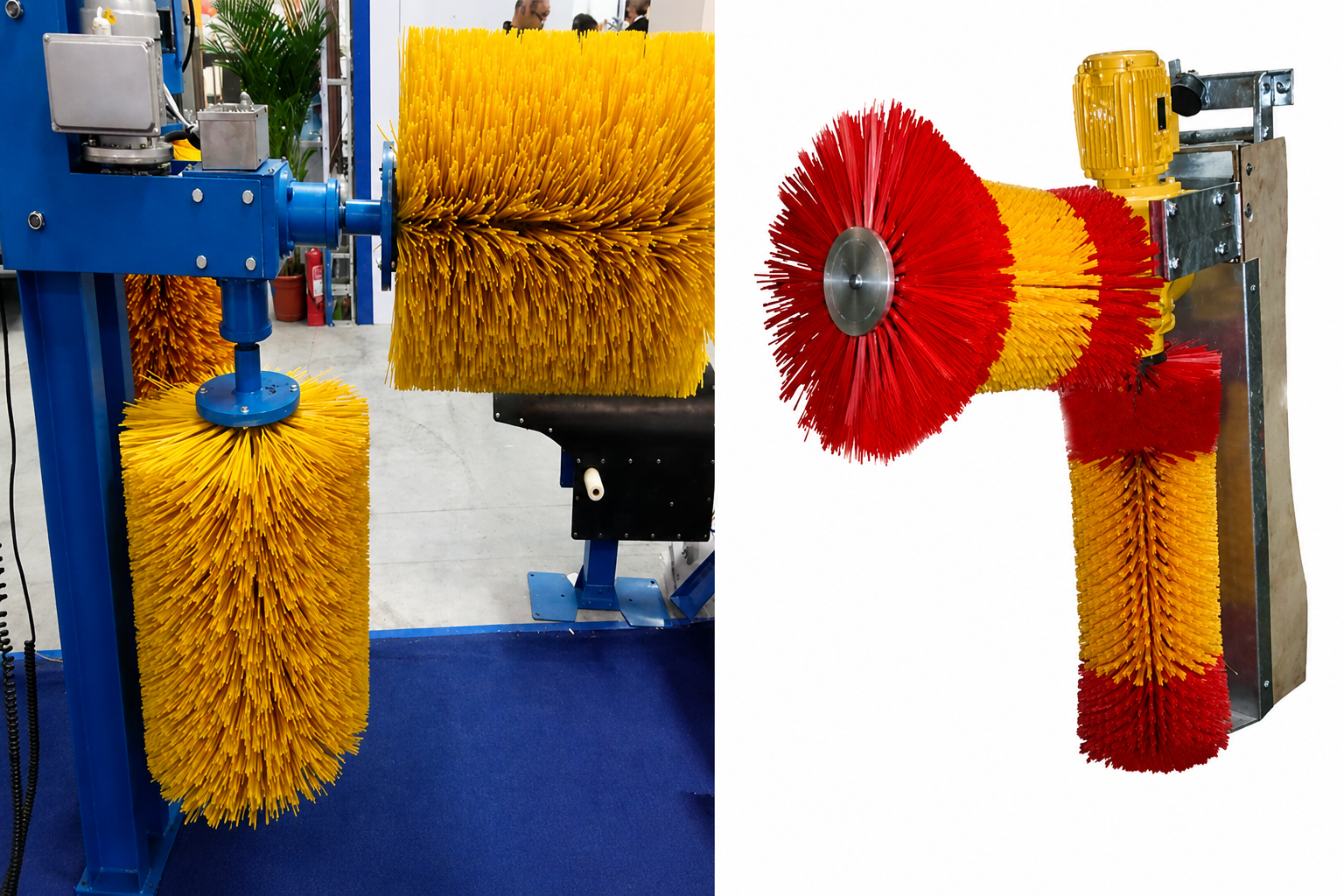

Automatic Rotating Cow Brushes

Motor-driven cow brushes provide back and side grooming. We supply cylindrical and hourglass replacement rollers; complete powered assemblies are reviewed against the project design. For a complete unit, specify the control and safety requirements for review.

Configuration
Single-brush or double-brush arrangement
Motor voltage
110, 120, 220 or 240 V
Frequency
50 or 60 Hz
02

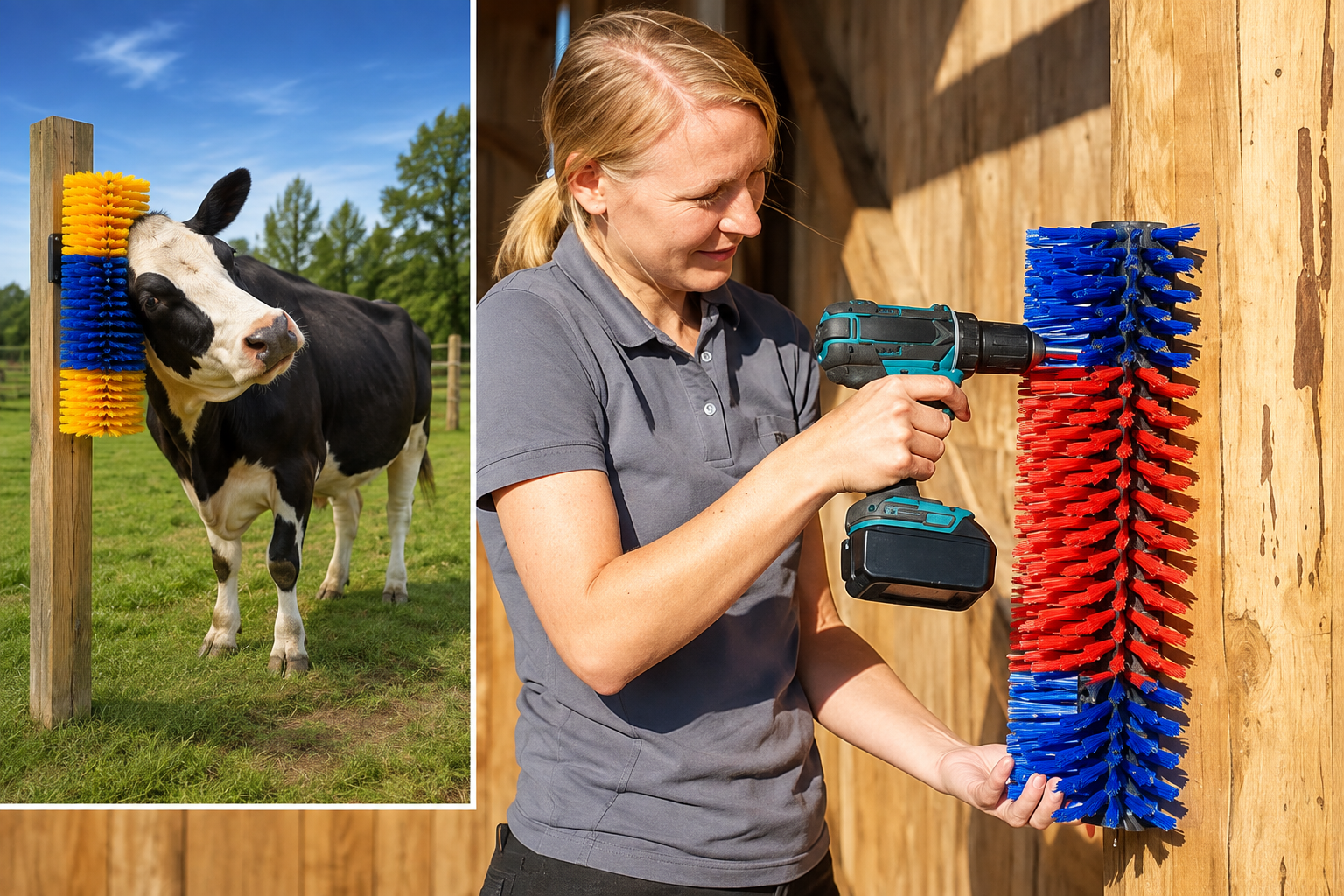

Fixed Semi-Circular Livestock Scratch Brushes

Non-powered semi-circular brushes have a curved body and mounting holes for fixing to a wall, fence or post. Cattle is the main application; suitability for other livestock depends on the animal, installation and filament specification.

03

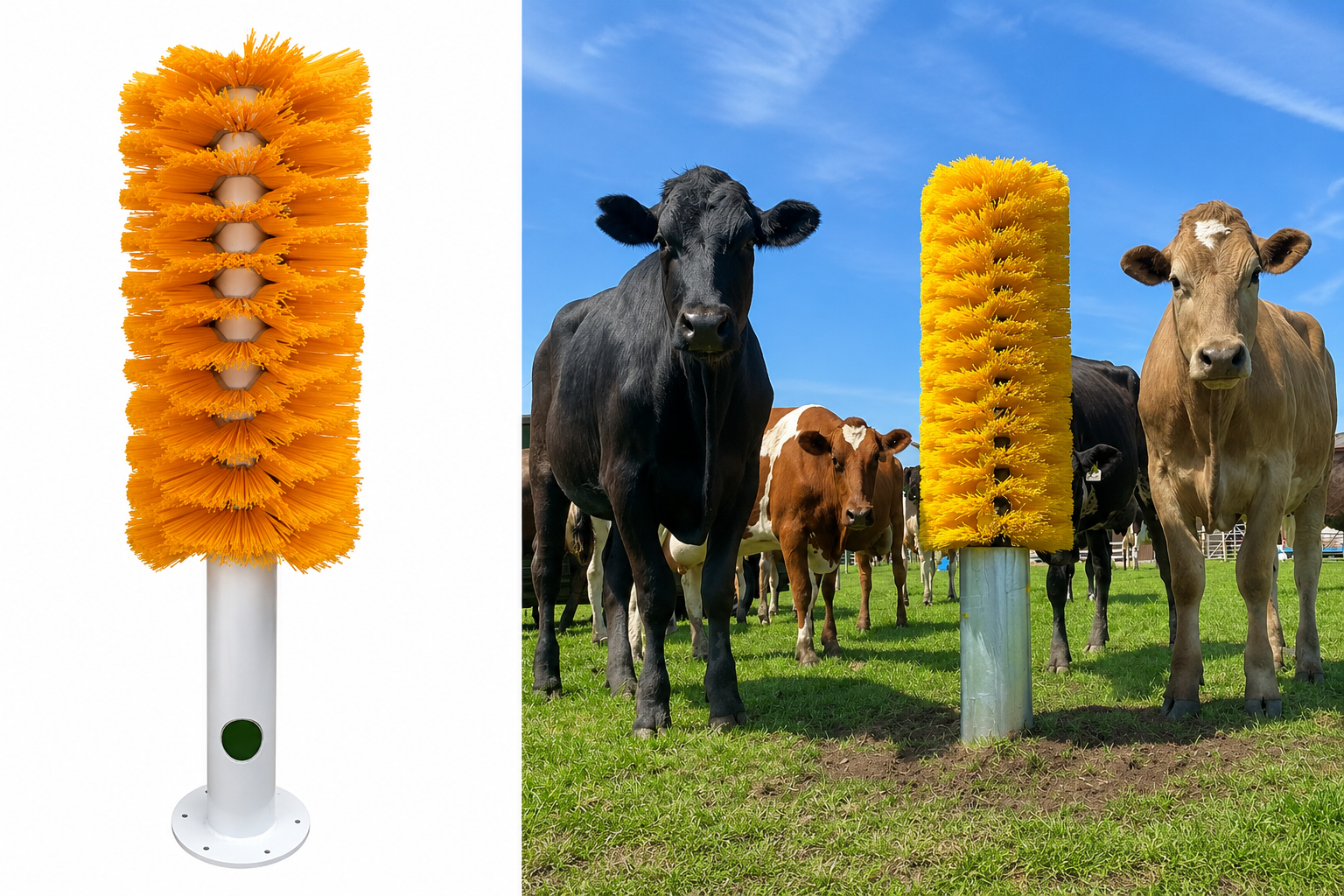

Stationary Totem Cow Brushes

This non-powered brush stacks replaceable brush rings around a central steel post, giving cattle a fixed grooming point in a barn or yard.

Brush rings, support posts and base plates can be supplied separately for new assemblies and replacement orders. Confirm ring bore and post dimensions before ordering replacements.

04

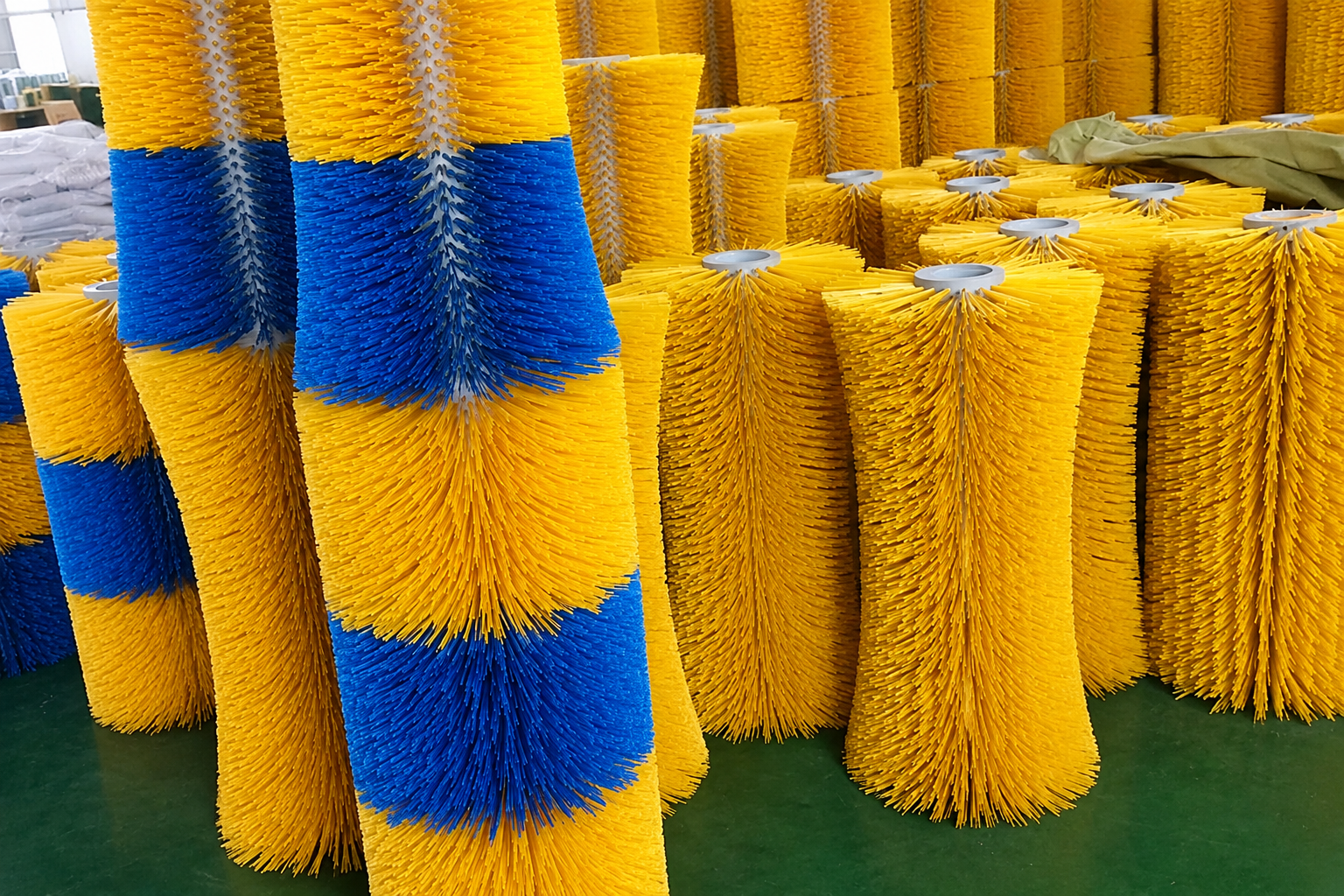

Replacement Brush Rollers & Sections

We supply cylindrical cow brush rollers, hourglass cow brush rollers, replaceable brush rings, and fixed brush elements to the confirmed drawing or measured sample. Individual wafer rings can be replaced when the stationary or totem brush uses a replaceable stack; the ring and shaft interface must match the existing assembly.

Manufactured Examples

Cow Brushes We Have Manufactured

Three previously manufactured examples, with dimensions and construction details for the pictured configurations.

Hourglass Cow Brush Roller

Brush length
800 mm
End diameter
450 mm; middle diameter: 370 mm
Square bore
41 × 41 mm
Filament
2.7 mm nylon and PP

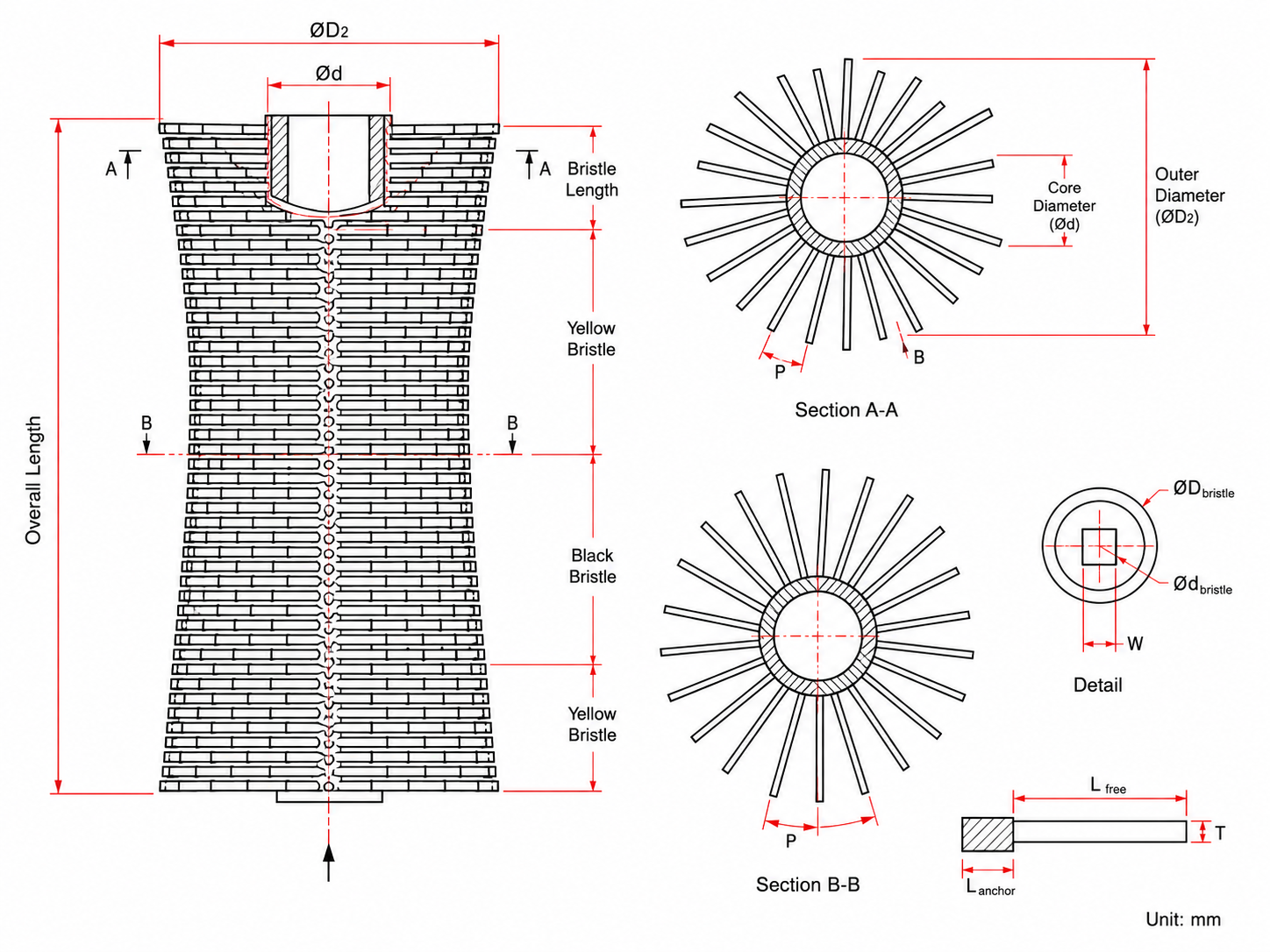

The drawing illustrates measurement points and a bore interface; its straight roller outline is not the hourglass profile or a dimensioned drawing of this example.

Yellow and green hourglass cow brush roller with a square bore

Finished roller · 1 / 3

Stationary Totem Cow Brush

Brush diameter
550 mm
Brush section height
1000 mm
Overall height
1640 mm
Filament
PP or nylon
Core
steel tube
Base
steel plate

Replacement brush rings or the complete post-and-brush assembly can be supplied. Reference order terms for this example: sample available, MOQ 1, wooden-case packaging; confirm current terms when requesting a quote.

Stationary cow brush dimension graphic showing 550 mm brush diameter, 1000 mm brush section and 1640 mm overall height

Example dimensions · 1 / 1

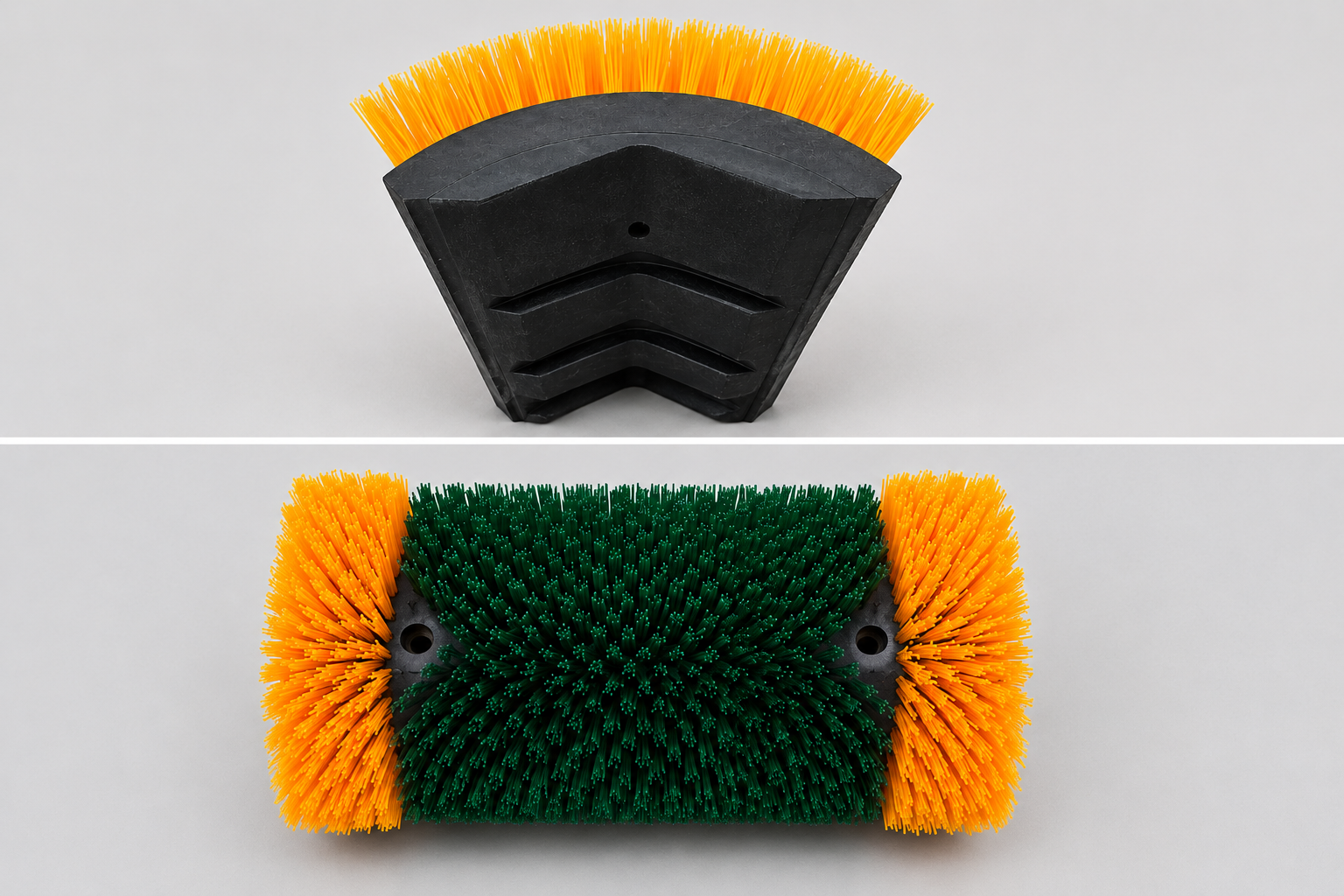

Fixed Semi-Circular Livestock Scratch Brush

Illustrated length
17.2 in
Illustrated overall width
7.56 in
Illustrated body width
3.16 in
Body
half-round plastic core
Filament
thick PP bristles
Mounting
two bolt holes

Filament color, material specification and finished dimensions can be customized to a confirmed drawing.

Yellow and blue half-round livestock scratch brush with two mounting bolts and nuts

Brush and mounting bolts · 1 / 2

These are previously manufactured examples. Other dimensions, filament combinations and mounting interfaces can be made to a confirmed drawing.

Farm Use

How Cow Brushes Are Used

A dedicated cow brush gives cattle a defined grooming surface instead of relying on walls, gates, or other farm structures.

Self-Grooming and Scratching

Provides an accessible contact point for grooming the head, neck, back, and sides.

Loose-Hair and Debris Removal

Helps remove loose hair, dirt, and surface debris from the coat during normal use.

Natural-Behavior Enrichment

Supports voluntary scratching and grooming behavior in dairy and beef cattle environments.

Protection of Farm Fixtures

Provides a more suitable rubbing point and can reduce contact with walls, fences, and equipment.

Allow animals enough space to approach and leave safely. Inspect worn or shedding bristles, damaged sections, the shaft or core, and mounting hardware. For powered equipment, follow the machine maintenance instructions and check the specified rotation, stop, overload, and other safety functions.

Filament Options

Cow Brush Filament Selection

Filament material and stiffness are selected for the brush format, contact feel, frequency of use, and indoor or outdoor environment.

PP Bristles

A firmer, moisture-resistant and cost-effective option commonly reviewed for stationary, outdoor, and heavy-contact designs.

Nylon Bristles

A more flexible and resilient option for brush designs that require repeated contact and greater filament recovery.

PBT Bristles

An additional synthetic-filament option reviewed when PBT is specified in an approved drawing or replacement requirement.

Mixed PP and nylon fill can also be reviewed where different contact stiffness is required across brush zones.

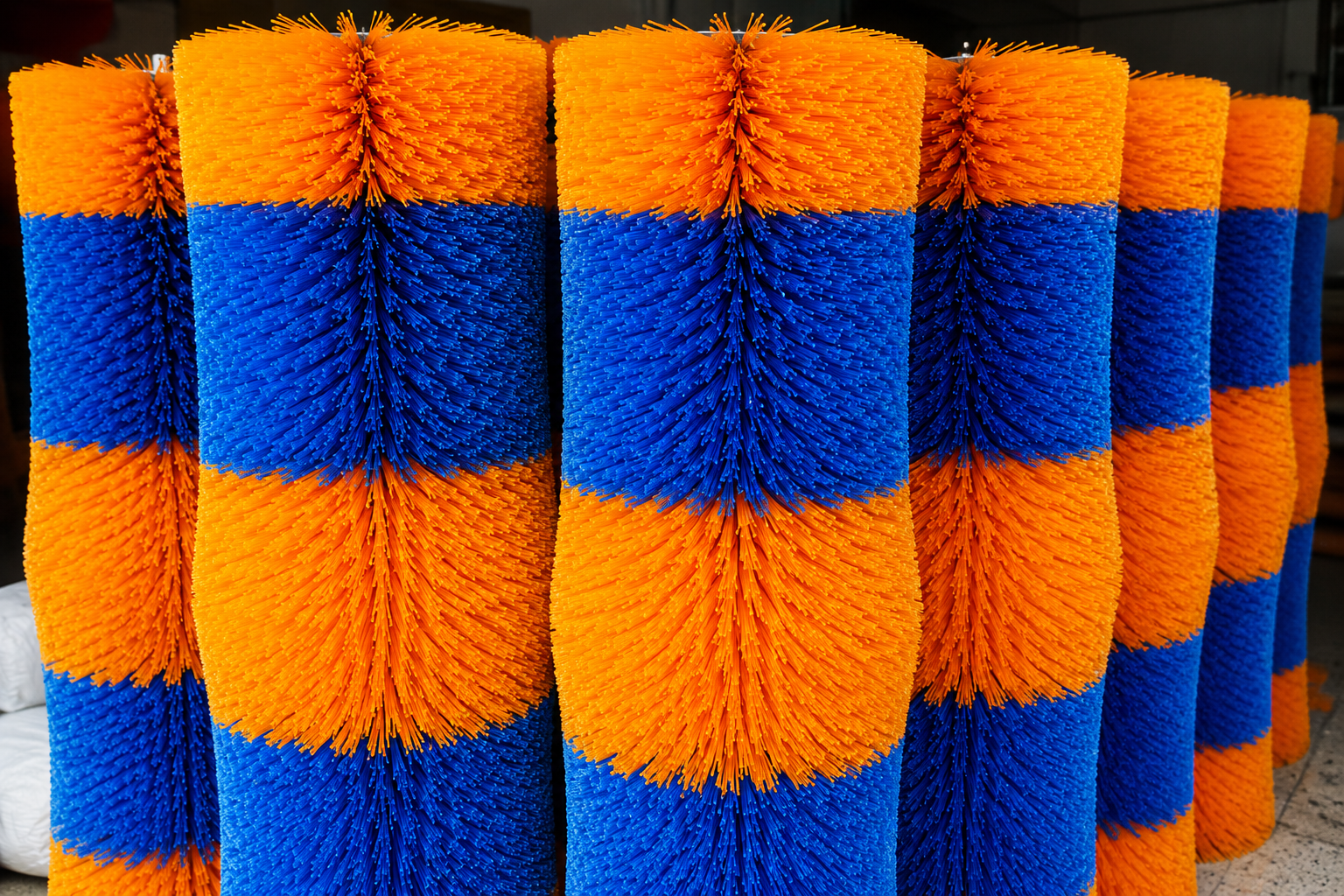

OEM and Replacement Supply

Custom Options & OEM Supply

We provide custom cow-brush rollers, wafer / disc sections, and fixed livestock scratch brushes. Send a clear drawing or approved sample for OEM and replacement review.

  • Animal type, powered or stationary operation, and indoor or outdoor installation
  • Cylindrical, hourglass, wafer-ring, fixed, or mounted brush configuration
  • Filament material, diameter, trim length, stiffness, density, and color
  • Core, steel shaft, bore, support, mounting holes, and replacement interface
  • For complete-machine projects: voltage, frequency, rotation, mounting, and required safety functions
Request a Quote
Livestock Brush RFQ

Need a Custom Cow Brush?

Send your drawing or sample with the animal type, brush configuration, finished dimensions, mounting detail, and required quantity. We support drawing-based batch production for OEM and replacement programs after specifications are confirmed.
