Brush Fill Materials
- Nylon / PA
- Polypropylene (PP)
- Tampico fiber
- Natural animal hair, including horsehair and hog bristle
- Other specified filaments selected from the approved drawing
Custom Chain Lubrication Brushes
Brushcustom manufactures compact chain lubrication brushes for controlled oil or grease application on moving chain assemblies.
Flat, round, through-flow, and side-feed configurations can be produced to the approved drawing for OEM, replacement, and volume orders.
Request a QuoteControlled Lubricant Distribution
What Is a Chain Lubrication Brush?
A chain lubrication brush is a short brush head that lightly contacts a moving chain and distributes lubricant across the working contact area. The brush can be connected to a manual oil source, oil line, or automatic lubricator, depending on the equipment design.
Flat, Round & Drawing-Defined Connections
Chain Lubrication Brush Types We Manufacture

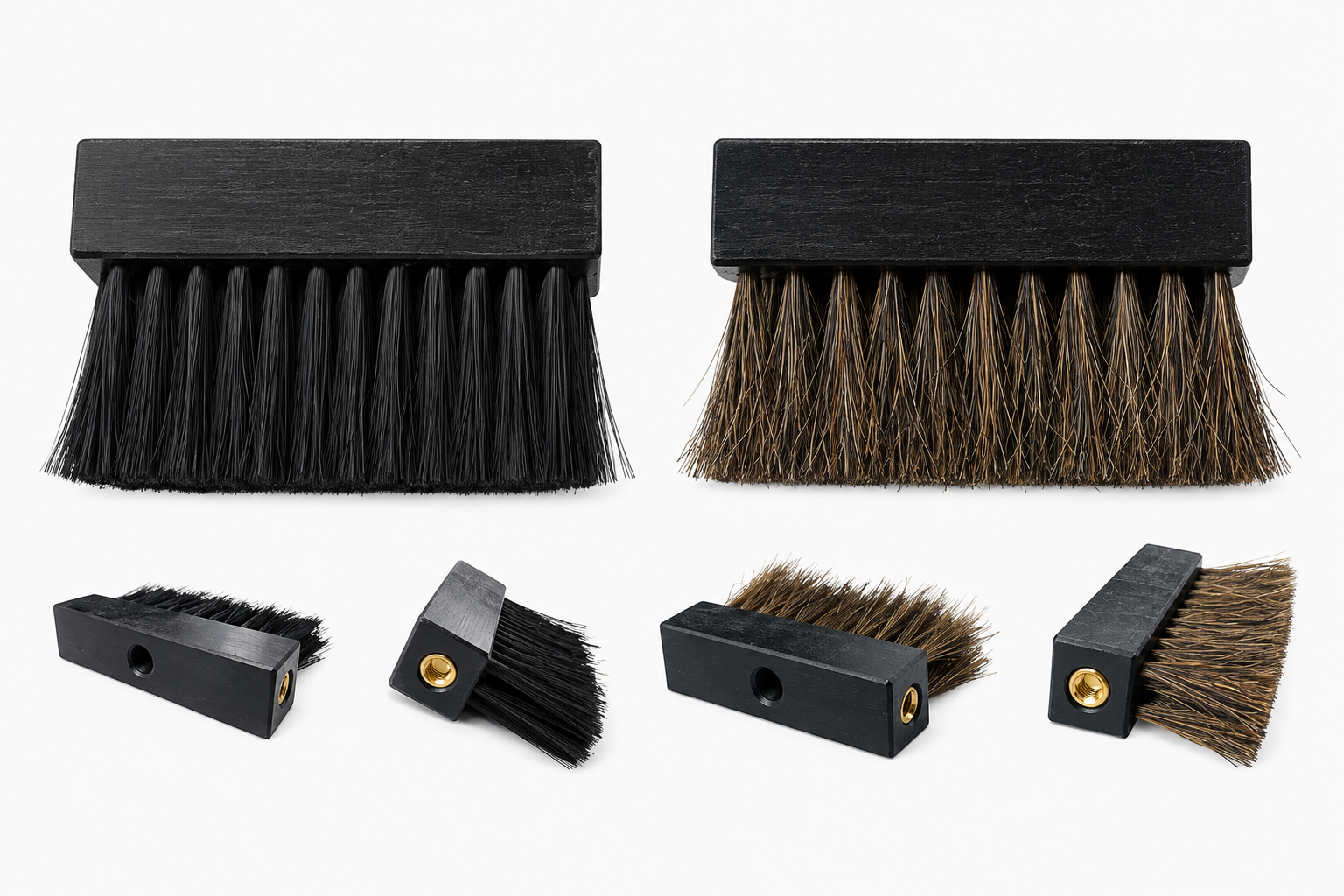

Flat Lubrication Brushes
Short rectangular brush heads for covering the working width of a chain. Suitable for conveyor chains, drive chains, and compact lubrication stations.

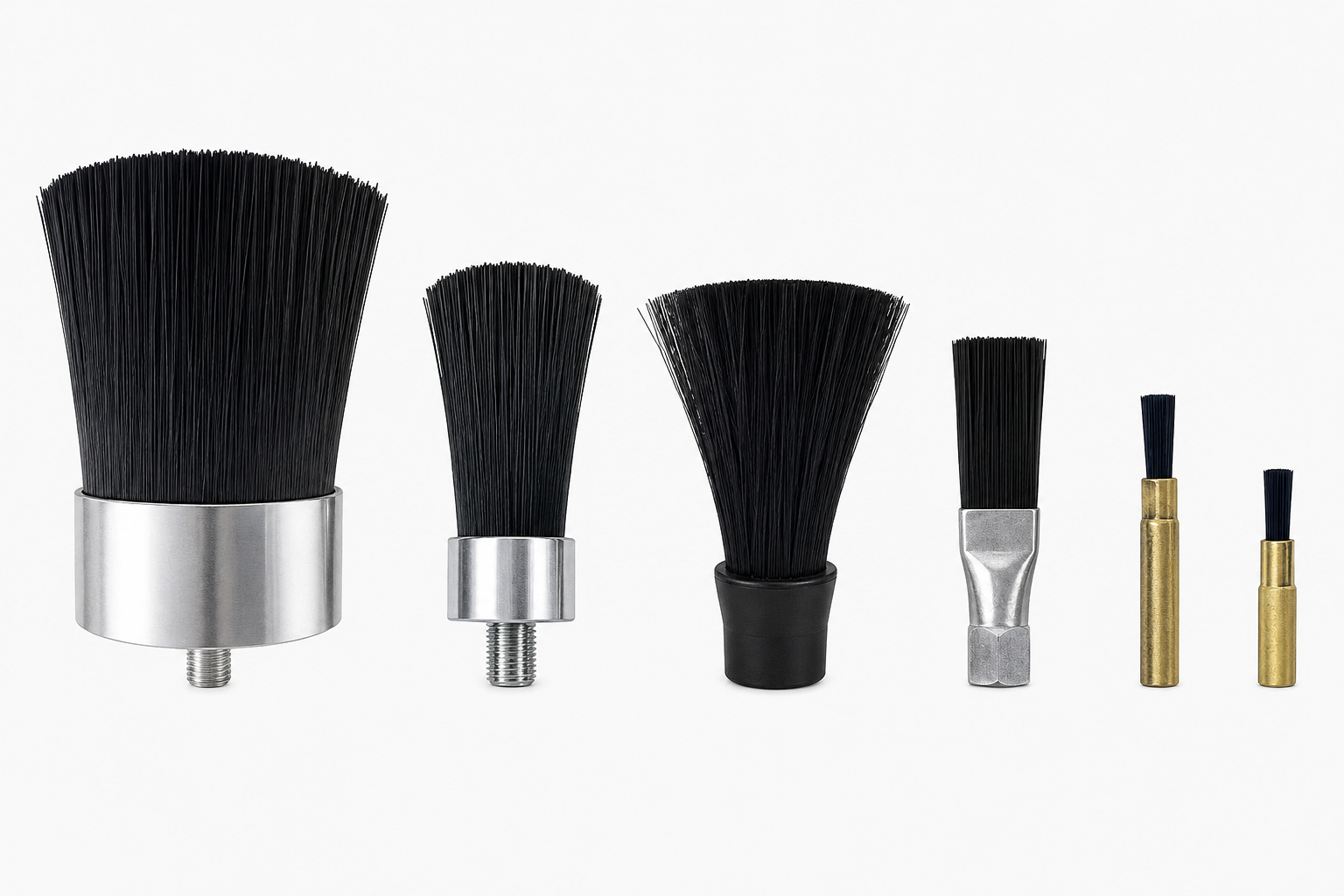

Round Lubrication Brushes
Compact round brush heads for narrow chains, sprockets, and confined access areas. Brush diameter and trim follow the required contact area.

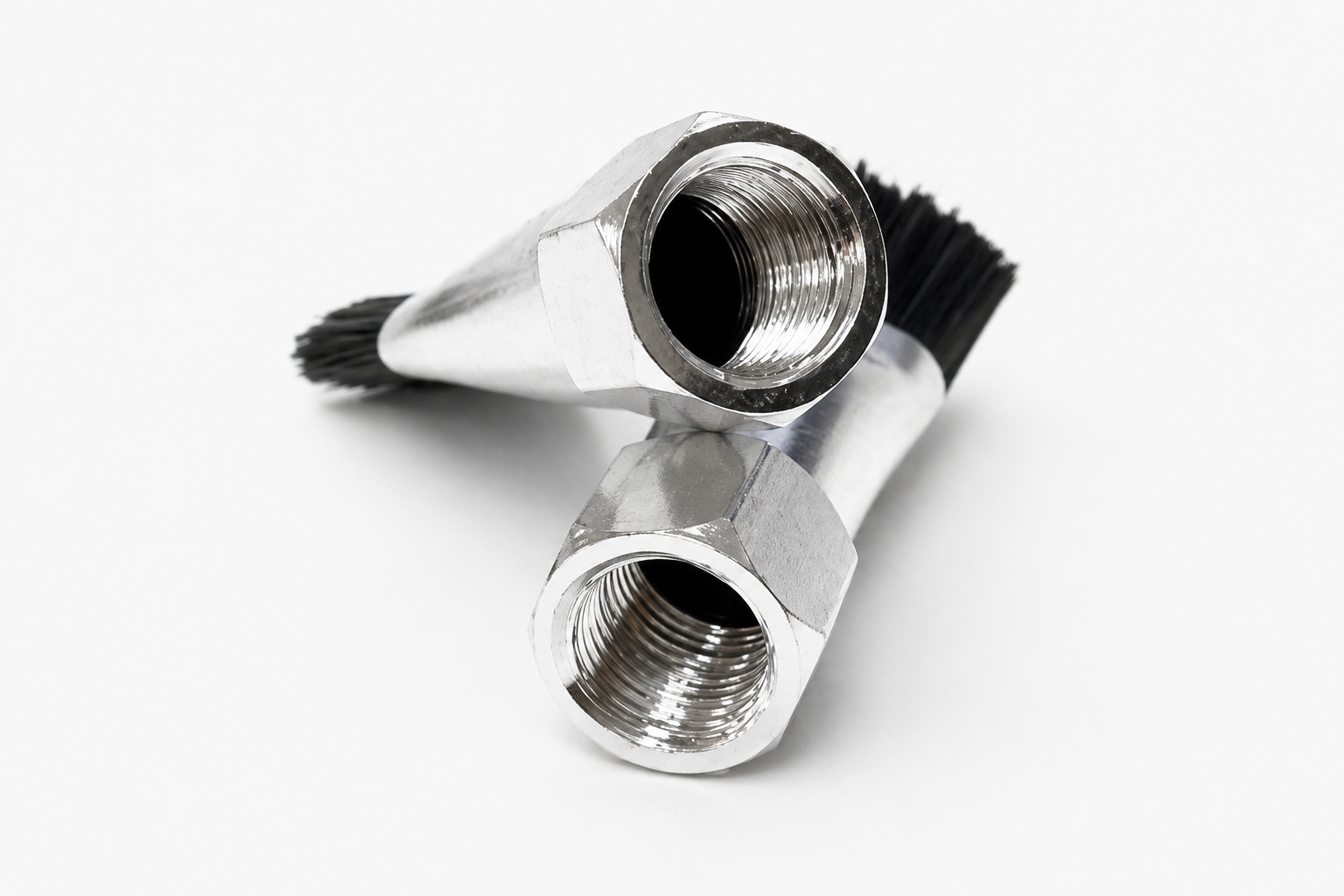

Axial / Rear-Feed Lubrication Brushes
Lubricant enters through an axial or rear threaded connection and is distributed through the brush head to the bristle contact area.
Side-Feed Lubrication Brushes
Lubricant enters through a lateral threaded connection where rear or top clearance is limited.
Fill, Body & Connection Selection
Brush Fill and Backing Options

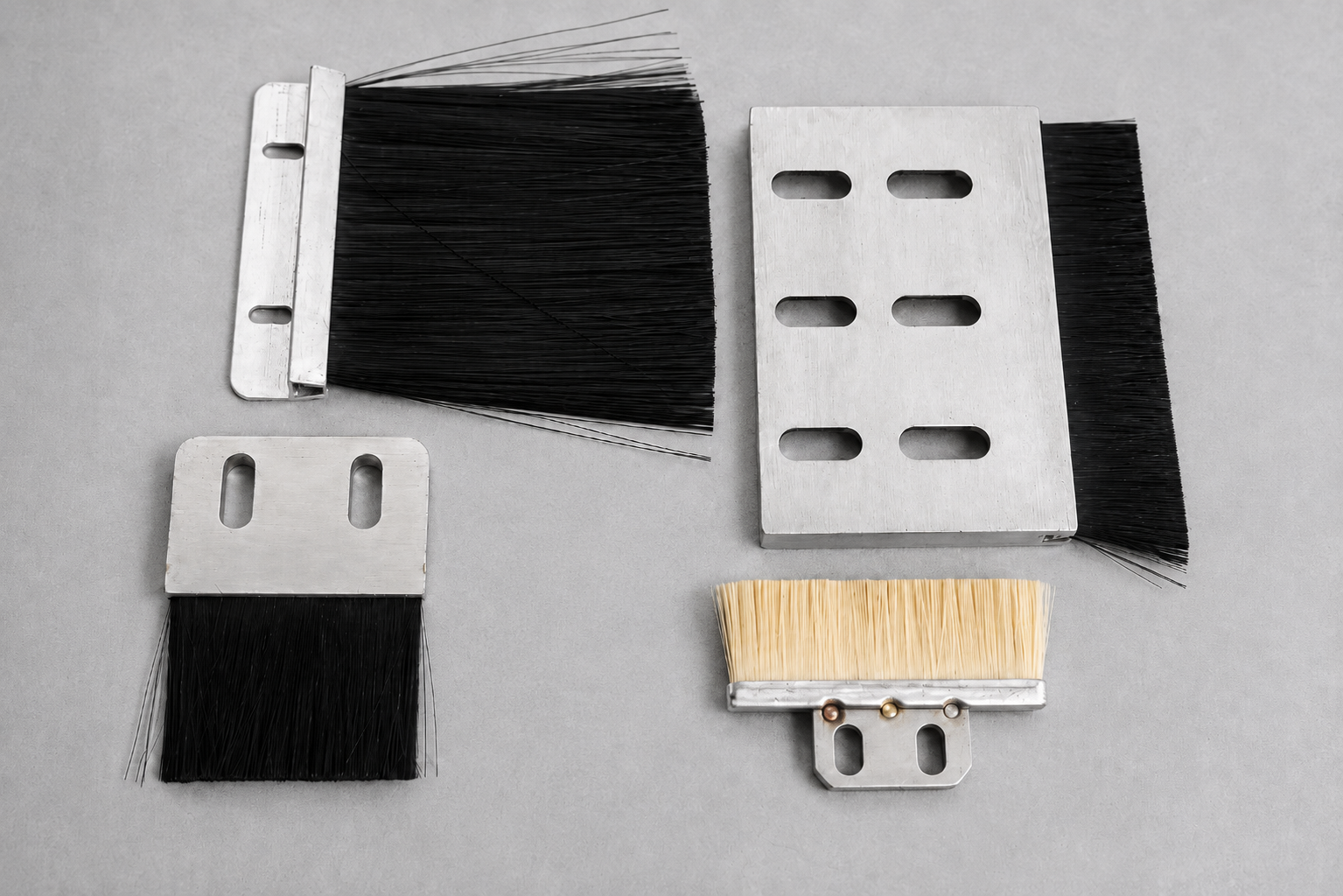

Brush Backing and Body Materials
- Plastic backing or body for compact brush heads
- Wood backing or handle for specified manual assemblies
- Metal backing or body for the required mounting and operating conditions
Fill diameter, trim length, density, head angle, body shape, connection detail, and quantity follow the approved drawing.

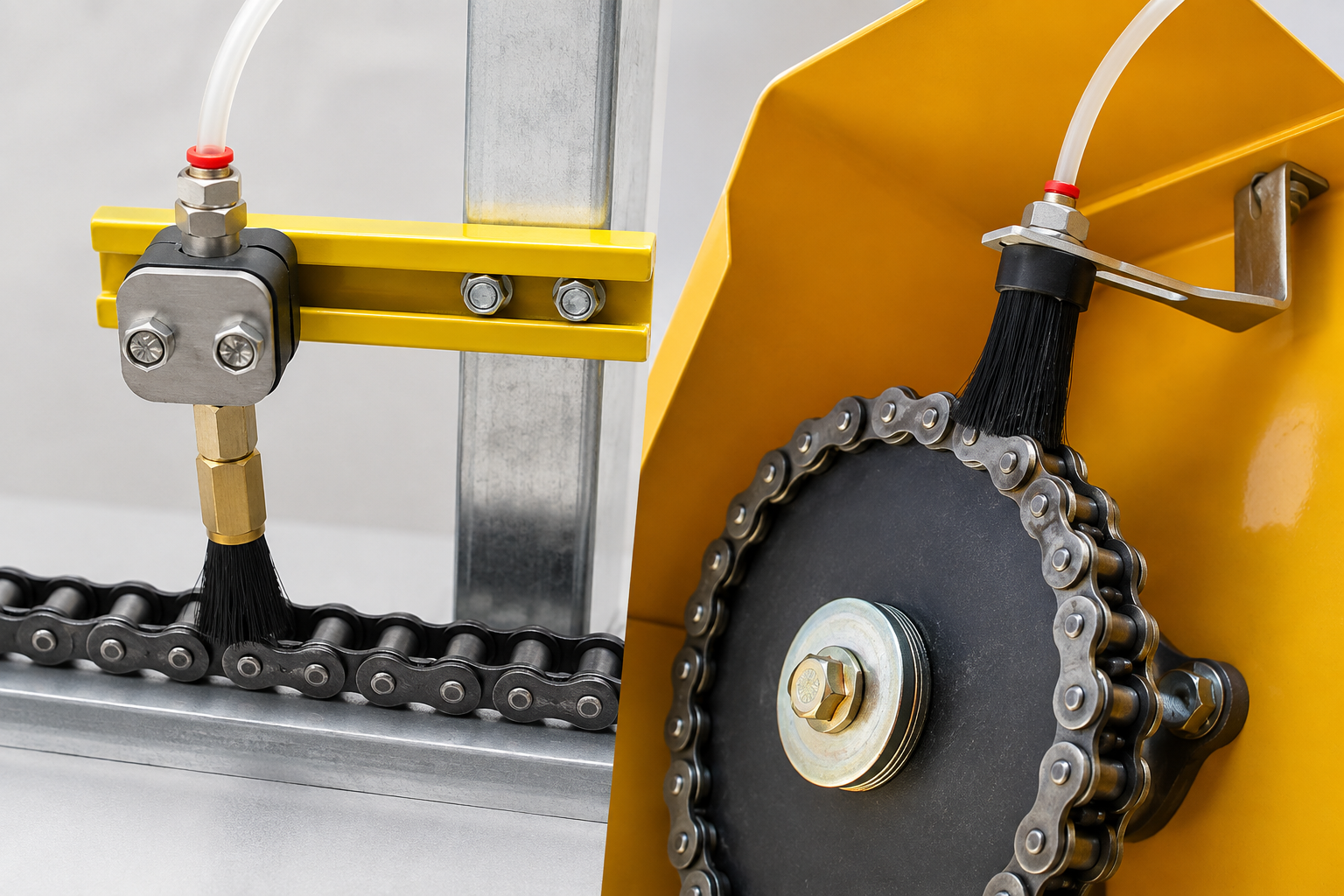

Chain & Sprocket Lubrication Positions
Typical Industrial Applications
- Conveyor chain lubrication
- Drive chain and sprocket lubrication
- Agricultural equipment chains
- High-speed and continuous chain systems
- Automatic chain lubrication units
Lubrication Brush Project Review
FAQ
What is the difference between a lubrication brush and a chain-cleaning brush?
A lubrication brush applies oil or grease to a moving chain. A chain-cleaning brush is selected primarily to remove buildup and debris.
Which brush head should I choose?
Flat heads cover a wider chain section, while round heads suit narrow chains or confined areas. Axial, rear-feed, and side-feed connections are selected according to the oil line and available installation space.
Can the brush connect to an automatic lubricator?
Yes. The inlet, thread, connection direction, and mounting position can be made to the approved lubrication-system drawing.
Which fill materials are available?
Nylon and synthetic fiber fills are available for controlled lubricant distribution. Filament diameter, trim, and density are specified for the chain and lubricant requirements.
Can you manufacture replacement brushes in volume?
Yes. Send the approved drawing with the brush dimensions, fill, body, connection, mounting details, and quantity for OEM or replacement production.
Custom Chain Lubrication Brush RFQ
Request a QuoteNeed a Custom Chain Lubrication Brush?
Send your drawing for custom production. Large-volume OEM and replacement orders are supported.
