The electronics manufacturing industry is highly sensitive to contamination and static electricity, with even minor exposure potentially causing significant damage to components. Static dissipative brushes, play a crucial role in maintaining the cleanliness and integrity of electronic components during production.
These specialized brushes are designed to prevent static electricity damage, ensuring the reliability and functionality of electronic devices. The use of cleanroom and anti-static brushes is essential in environments where electronics are manufactured, assembled, or repaired.
By utilizing static dissipative brushes, manufacturers can significantly reduce the risk of contamination and electrostatic discharge, thereby enhancing product quality and reducing potential losses.
The Critical Role of Specialized Brushes in Electronics Manufacturing

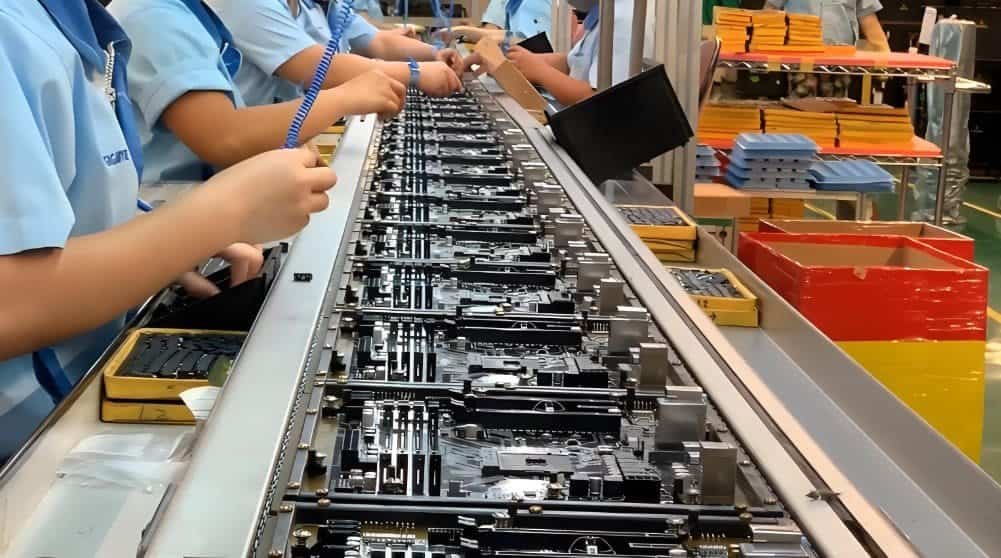

Contamination risks and static electricity are significant concerns in electronics manufacturing, where specialized brushes are used to mitigate these issues. The production of electronic components requires a controlled environment to prevent defects and ensure reliability.
Contamination Risks in Electronics Production
Contamination risks in electronics production arise from various sources, including airborne particles, human contact, and the manufacturing process itself. These contaminants can cause defects in electronic components, leading to reduced product yield and reliability. Specialized brushes designed for cleanroom environments help minimize these risks by gently removing particles from surfaces without generating additional contamination.
For instance, anti-static brushes are engineered to dissipate static electricity, thereby preventing damage to sensitive electronic components. Their use is critical in areas where components are handled or assembled.
Impact of Static Electricity on Electronic Components
Static electricity poses a significant threat to electronic components, potentially causing damage or malfunction. The discharge of static electricity can alter the electrical properties of components or destroy them entirely. Specialized anti-static brushes are designed to mitigate this risk by providing a controlled path for static discharge, thus protecting components during handling and cleaning.
The use of anti-static brushes in electronics manufacturing not only helps in controlling static electricity but also contributes to the overall cleanliness of the production environment. By minimizing contamination and static-related damage, these brushes play a crucial role in ensuring the quality and reliability of electronic products.
Understanding Cleanroom Environments in Electronics Manufacturing
Cleanrooms are specially designed environments that are crucial for the production of sensitive electronic components. These controlled environments are engineered to minimize contamination from dust, chemical vapors, and microbial particles, which can adversely affect the manufacturing process.
Cleanroom Classifications and Requirements
Cleanrooms are classified based on the number and size of particles per unit volume of air. The most commonly used standard for cleanroom classification is ISO 14644-1, which defines the requirements for cleanroom environments. The classification ranges from ISO Class 1 (the cleanest) to ISO Class 9 (the least clean). Electronics manufacturing typically requires cleanrooms classified between ISO Class 1 and ISO Class 7, depending on the specific production processes.
The requirements for cleanroom environments include stringent controls over temperature, humidity, and air flow. The air is filtered through High Efficiency Particulate Air (HEPA) or Ultra Low Penetration Air (ULPA) filters to remove particles as small as 0.1 microns. Additionally, personnel working in cleanrooms must wear specialized garments to prevent contamination.
Particle Control Standards in Electronics Factories
The standards for particle control are defined by various regulatory bodies, including the International Organization for Standardization (ISO) and the Institute of Environmental Sciences and Technology (IEST).
IEST Recommended Practices provide guidelines for the design, operation, and maintenance of cleanrooms. These practices cover aspects such as air cleanliness, personnel practices, and the control of particles generated by equipment and processes. Compliance with these standards is essential for ensuring the quality and reliability of electronic components.
Specialized Cleanroom and Anti-static Brushes in Electronics Factories
Cleanroom and anti-static brushes are designed to meet the stringent cleanliness requirements of electronics factories, where even the smallest particles can cause significant damage. These specialized brushes are engineered to prevent contamination and static electricity damage, ensuring the quality and reliability of electronic components.
Definition and Core Characteristics
Specialized cleanroom and anti-static brushes are cleaning tools designed for use in controlled environments, such as electronics manufacturing facilities. These brushes are made with materials that minimize particle generation and are designed to dissipate static electricity. Static dissipative nylon brushes, for instance, are made with a special static dissipative additive mixed into the nylon pellets prior to extrusion, enhancing their ability to prevent static buildup.
The core characteristics of these brushes include their ability to clean delicate surfaces without causing damage, their resistance to chemicals used in cleaning processes, and their static dissipative properties. These characteristics are crucial in electronics manufacturing, where components are sensitive to both contamination and static electricity.
How They Differ from Standard Cleaning Tools
Unlike standard cleaning tools, specialized cleanroom and anti-static brushes are designed with specific materials and manufacturing processes that meet the stringent requirements of cleanroom environments. Standard brushes may generate particles or harbor contaminants, which can compromise the cleanliness of the environment. In contrast, cleanroom brushes are designed to be used in environments where particle control is critical.
| Characteristics | Specialized Cleanroom Brushes | Standard Cleaning Tools |
|---|---|---|
| Material | Static dissipative, low particle generation | Varied, may generate particles |
| Static Control | Designed to dissipate static electricity | May not control static electricity |
| Cleanroom Compatibility | Specifically designed for cleanroom use | Not designed for cleanroom environments |
The differences between specialized cleanroom brushes and standard cleaning tools are significant, particularly in terms of their impact on the cleanliness and electrostatic discharge (ESD) safety of electronics manufacturing environments. By using the appropriate cleaning tools, manufacturers can ensure compliance with industry standards and reduce the risk of product failure due to contamination or static damage.
Types of Anti-static Brushes for Electronics Applications
Various types of anti-static brushes are employed in electronics applications to ensure the safety of sensitive components. These brushes are designed to prevent damage from electrostatic discharge (ESD) and contamination, which are critical concerns in electronics manufacturing.

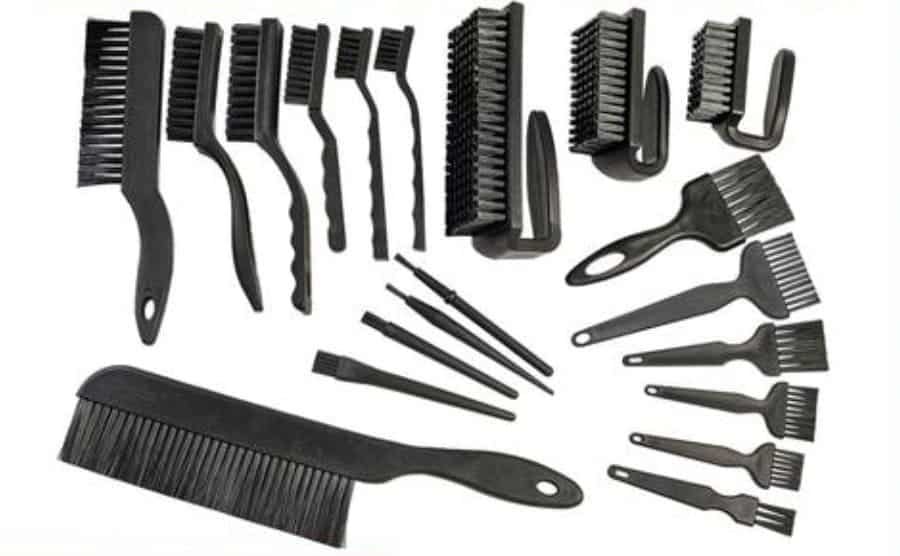

ESD-Safe Hand Brushes
ESD-safe hand brushes are designed for manual cleaning operations in electronics manufacturing. These brushes typically feature handles made from static-dissipative materials and bristles that are either conductive or static-dissipative. The use of ESD-safe hand brushes helps prevent the buildup of static electricity, thereby protecting sensitive electronic components.
For instance, brushes with synthetic fibers are often used for cleaning delicate surfaces, while those with carbon fibers or metal fibers may be used for more robust cleaning tasks. The choice of brush depends on the specific application and the level of ESD protection required.
Automated Cleaning Brush Systems
Automated cleaning brush systems are integrated into manufacturing lines to enhance efficiency and consistency in cleaning operations. These systems utilize brushes that are designed to work in conjunction with automated machinery, ensuring that electronic components are cleaned without being exposed to harmful static electricity.
Automated cleaning brush systems are particularly useful in high-volume production environments where manual cleaning would be impractical. They can be programmed to clean specific areas of electronic components with precision, reducing the risk of contamination and ESD damage.
Specialty Application Brushes
Specialty application brushes are designed for unique or specific tasks within electronics manufacturing. These may include brushes for cleaning hard-to-reach areas, brushes with specialized bristle configurations for particular cleaning tasks, or brushes designed for use with specific chemicals or cleaning solutions.
For example, some specialty brushes are designed with angled or curved shapes to access confined spaces within electronic assemblies. Others may have bristles that are treated with anti-static materials to enhance their ESD-safe properties.
The diversity of anti-static brushes available for electronics applications underscores the importance of selecting the right tool for the specific task at hand. By choosing the appropriate type of brush, manufacturers can ensure that their products are protected from contamination and ESD damage, thereby enhancing overall product reliability and quality.
Materials and Construction of Anti-static Brushes
The construction of anti-static brushes involves a combination of advanced materials and precise manufacturing processes. These brushes are designed to prevent static electricity damage in electronics manufacturing environments.
Conductive Filament Technologies
Conductive filaments are a crucial component of anti-static brushes. These filaments are typically made from materials such as carbon or stainless steel, which provide excellent conductivity and durability. The use of conductive filaments ensures that static electricity is dissipated safely, protecting sensitive electronic components.
Static dissipative nylon is another material used for making anti-static brushes, offering excellent abrasion resistance and chemical resistance. This material is particularly useful in applications where the brush is subject to heavy use or exposure to harsh chemicals.
Handle and Base Materials for Static Dissipation
The handle and base materials of anti-static brushes are also designed to contribute to static dissipation. Materials such as static-dissipative plastics or metals are used to ensure that the brush does not generate static electricity. The choice of handle and base materials is critical to the overall performance of the brush.
Manufacturing Processes for ESD-Safe Brushes
The manufacturing process for ESD-safe brushes involves several critical steps. First, the selection of materials is crucial, as it determines the brush’s conductivity and durability. The filaments are then carefully assembled into the brush, ensuring that they are securely attached to the handle and base.
The quality control process is also essential to ensure that the brushes meet the required standards for ESD safety. This includes testing the brushes for conductivity, particle generation, and other relevant parameters.
| Material | Properties | Applications |
|---|---|---|
| Carbon Filaments | High conductivity, durable | Anti-static brushes for electronics |
| Static Dissipative Nylon | Abrasion resistant, chemical resistant | Heavy-duty anti-static brushes |
| Static-Dissipative Plastics | Non-conductive, static-dissipative | Handles and bases for anti-static brushes |
Key Properties of Effective Cleanroom Brushes
The efficacy of cleanroom brushes in electronics manufacturing is contingent upon several key properties. These properties are crucial in ensuring that the brushes perform their intended functions without compromising the cleanliness or integrity of the electronic components being manufactured.
Static Dissipative Capabilities
One of the critical properties of effective cleanroom brushes is their static dissipative capability. Static electricity can be detrimental to electronic components, causing damage or malfunction. Brushes used in cleanrooms must be designed to dissipate static electricity safely. This is typically achieved through the use of materials that have been engineered to be conductive or static dissipative. The static dissipative capability of a brush ensures that it does not accumulate static charge, thereby protecting sensitive electronic components from electrostatic discharge (ESD).
Particle Generation and Shedding Characteristics
Another important property of cleanroom brushes is their particle generation and shedding characteristics. Brushes that generate or shed particles can contaminate the cleanroom environment, potentially compromising the quality of the electronic components being produced. Effective cleanroom brushes are designed to minimize particle generation and shedding. This is often achieved through the use of high-quality materials and precise manufacturing processes that ensure the brush’s filaments or bristles are securely anchored, reducing the likelihood of particle release during use.
Chemical Resistance and Durability
Chemical resistance and durability are also key properties of effective cleanroom brushes. In electronics manufacturing, brushes may be exposed to various chemicals during cleaning or other processes. Brushes that are not chemically resistant may degrade or fail when exposed to these substances, potentially contaminating the cleanroom or causing other issues. Durable brushes, on the other hand, can withstand the rigors of repeated use and cleaning, maintaining their performance over time. The materials used in the construction of the brush, including both the bristles and the handle, are selected based on their chemical resistance and durability.
In conclusion, the key properties of effective cleanroom brushes include static dissipative capabilities, low particle generation and shedding characteristics, and chemical resistance along with durability. By understanding and specifying these properties, electronics manufacturers can ensure that their cleanroom brushes contribute to a controlled environment that supports the production of high-quality electronic components.
Industry Standards and Compliance Requirements
Industry standards play a pivotal role in ensuring the quality and effectiveness of cleanroom and anti-static brushes. These standards are designed to safeguard the integrity of electronic components during manufacturing processes.
Compliance with established standards is not merely a regulatory requirement but a critical factor in maintaining the reliability and performance of electronic products. The use of standardized cleanroom and anti-static brushes helps in minimizing the risks associated with contamination and static electricity.
ANSI/ESD S20.20 Standards
The ANSI/ESD S20.20 standard is a crucial guideline for the development of Electrostatic Discharge (ESD) control programs in the electronics industry. This standard outlines the requirements for the protection of ESD-sensitive items, including the use of anti-static brushes that comply with specific performance criteria.
To adhere to ANSI/ESD S20.20, manufacturers must implement a comprehensive ESD control program that includes the use of compliant anti-static brushes. These brushes are designed to prevent the generation of static electricity and to dissipate any existing charges, thereby protecting sensitive electronic components.
IEST Recommended Practices
The Institute of Environmental Sciences and Technology (IEST) provides recommended practices for contamination control in various industries, including electronics manufacturing. IEST guidelines cover aspects such as cleanroom classification, particle control, and the selection of appropriate cleaning tools, including cleanroom-compatible brushes.
IEST recommended practices emphasize the importance of selecting brushes that are designed to minimize particle generation and shedding. This is critical in maintaining the cleanliness of the manufacturing environment and ensuring the quality of the final product.
Certification and Testing Protocols
Certification and testing protocols are essential for verifying that cleanroom and anti-static brushes meet the required industry standards. Manufacturers must subject their products to rigorous testing to ensure compliance with standards such as ANSI/ESD S20.20 and IEST guidelines.
Testing protocols typically involve evaluating the brushes’ static dissipative properties, particle generation rates, and resistance to chemicals used in cleaning processes. Products that pass these tests are certified for use in cleanroom environments, providing assurance to manufacturers of their suitability for electronics manufacturing applications.
In conclusion, adherence to industry standards and compliance requirements is vital for ensuring the effectiveness of cleanroom and anti-static brushes in electronics manufacturing. By following standards such as ANSI/ESD S20.20 and IEST recommended practices, and by adhering to stringent certification and testing protocols, manufacturers can guarantee the quality and reliability of their products.
Selection Criteria for Electronics Manufacturing Brushes
Choosing the right brush for electronics manufacturing involves a careful evaluation of various factors to ensure optimal performance and compliance with industry standards.
Application-Specific Considerations
The type of brush used in electronics manufacturing depends on the specific application. For instance, brushes used for cleaning delicate components require soft bristles to prevent damage, while those used for removing debris from machinery may require stiffer bristles.
Different manufacturing processes also dictate the brush characteristics. For example, in surface mount technology (SMT) assembly, brushes with anti-static properties are essential to prevent electrostatic discharge (ESD) that could damage sensitive components.
Compliance with Industry Standards
Electronics manufacturing brushes must comply with various industry standards to ensure they do not contaminate the production environment or damage the products. Compliance with standards such as ANSI/ESD S20.20 for electrostatic discharge protection and IEST-RP-CC004 for cleanroom operations is crucial.
Manufacturers should look for brushes that have been tested and certified to meet these standards. This includes verifying the brush materials, construction, and performance characteristics.
Cost-Benefit Analysis for Quality Brushes
While it might be tempting to opt for cheaper brushes, a cost-benefit analysis often reveals that higher-quality brushes are more economical in the long run. Quality brushes reduce the risk of product damage, minimize downtime due to brush failure, and can be designed for easier cleaning and longer lifespan.
Investing in quality brushes also contributes to overall manufacturing efficiency and product reliability. For example, a brush that is designed to minimize particle generation can help maintain a cleaner manufacturing environment, reducing the need for frequent cleaning cycles.
Proper Usage Techniques and Best Practices
In electronics manufacturing, the utilization of cleanroom and anti-static brushes requires meticulous attention to proper usage techniques and best practices. The effectiveness of these specialized tools is significantly enhanced when used correctly, contributing to the overall quality and reliability of electronic components.
Manual Cleaning Operations
Manual cleaning operations involving cleanroom and anti-static brushes demand a high level of precision and adherence to established protocols. Operators must be trained to handle these brushes correctly, ensuring that they are used in a manner that minimizes contamination risks and maximizes cleaning efficiency.
The selection of the appropriate brush for a specific task is critical. Factors such as bristle material, brush size, and handle design must be considered to ensure compatibility with the cleaning task and the environment in which it is performed.
Integration with Automated Manufacturing Processes
The integration of cleanroom and anti-static brushes into automated manufacturing processes requires careful planning and execution. These brushes must be designed to work seamlessly with automated systems, maintaining the cleanliness and integrity of electronic components throughout the production process.
| Integration Aspect | Description | Benefits |
|---|---|---|
| Compatibility | Ensuring brushes are compatible with automated systems | Enhanced process efficiency |
| Design | Designing brushes for easy integration and maintenance | Reduced downtime and maintenance costs |
| Material Selection | Selecting materials that meet automated process requirements | Improved product quality and reliability |
Training Requirements for Cleanroom Personnel
Training is a critical component of ensuring that cleanroom personnel use cleanroom and anti-static brushes effectively. Comprehensive training programs should cover the proper handling, usage, and maintenance of these brushes, as well as the importance of adhering to cleanroom protocols.
Personnel should be trained on the specific requirements for different cleaning tasks, including the selection of appropriate brushes, techniques for minimizing particle generation, and procedures for maintaining brush cleanliness and integrity.
Maintenance, Care, and Replacement Protocols
Effective maintenance of cleanroom and anti-static brushes is crucial for their longevity and performance in electronics manufacturing environments. Regular maintenance not only ensures the brushes continue to function as intended but also prevents potential contamination risks that could compromise the manufacturing process.
Cleaning Procedures for Brush Longevity
To maintain the integrity and effectiveness of cleanroom brushes, specific cleaning procedures must be followed. These procedures typically involve gentle cleaning methods that remove contaminants without damaging the brush fibers or compromising their anti-static properties. Ultrasonic cleaning and precision cleaning solutions are often recommended for this purpose.
The frequency of cleaning depends on the usage and the environment in which the brushes are used. In highly controlled cleanroom environments, brushes may need to be cleaned after each use or at regular intervals to prevent the accumulation of particles.
Storage Requirements in Cleanroom Environments
Brushes should be stored in a clean, dry environment, away from direct sunlight and potential contaminants. Specialized storage containers or bags that are designed for cleanroom use are recommended to prevent re-contamination.
It is also important to store brushes in a manner that prevents damage to the bristles or deformation of the brush shape. This may involve storing them in a hanging position or in a protective case that maintains their structural integrity.
Replacement Indicators and Schedules
Despite proper maintenance and care, cleanroom and anti-static brushes have a limited lifespan and will eventually need to be replaced. Indicators that a brush needs replacement include visible wear on the bristles, a decrease in cleaning effectiveness, or damage to the brush handle or base.
Establishing a regular replacement schedule based on the manufacturer’s recommendations and the specific usage conditions can help ensure that brushes are replaced before they become ineffective. This proactive approach is crucial for maintaining the high standards required in electronics manufacturing.
Conclusion
Electronics manufacturing excellence relies heavily on the use of proper cleaning tools, such as cleanroom brushes, to maintain the integrity of sensitive components. The critical role of these specialized brushes in preventing contamination and static electricity damage has been underscored throughout this discussion.
By understanding the importance of cleanroom environments, the characteristics of effective cleanroom brushes, and the industry standards governing their use, manufacturers can ensure the production of high-quality electronic components. The selection of appropriate cleanroom brushes, coupled with proper usage techniques and maintenance protocols, is crucial for achieving electronics manufacturing excellence.
