Did you know that changing a brush’s density even slightly can have a big impact on surface quality and its cleaning efficiency? Choice of wrong density can also make brushes wear out faster, cause poor cleaning or even damage equipment. In this blog post we will explain brush density, how it affects performance. This will help you pick the right brush density for your industrial applications.

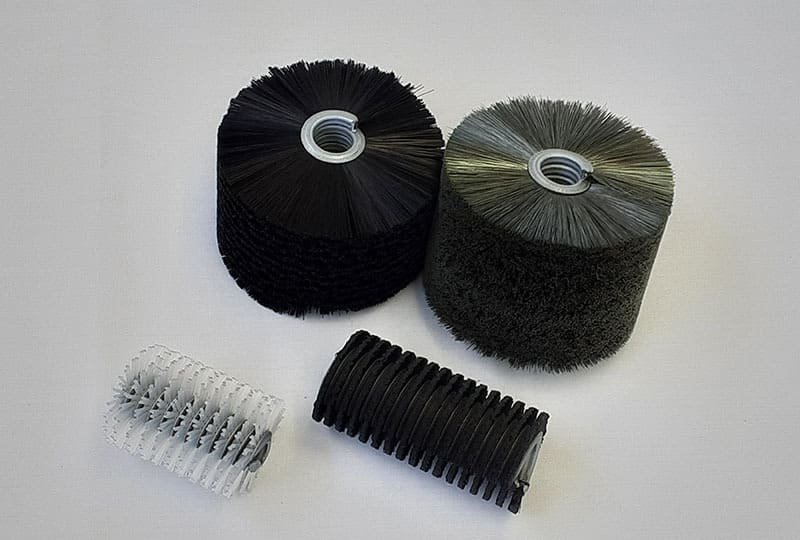

What Is Brush Density?
Brush density is how many bristles are in each unit area of the brush head. Factors like bunch diameter, how bristles are placed around the perimeter and the distribution of their lengths determine this value. When density is higher, more bristles fit closer together. Brush density affects how well it cleans and how long it lasts.
Types of Industrial Brushes and Relevance of Density
Industrial brushes come in many forms; and density of each type affects its performance.

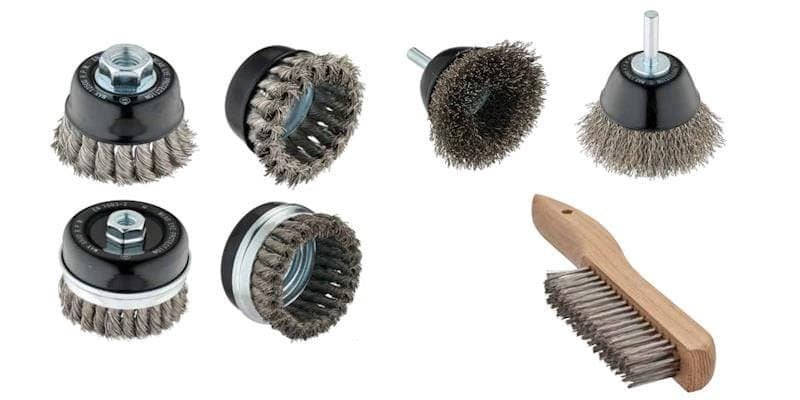

1. Wire Brushes
Wire brushes use brass, steel or stainless wires and handle tasks like deburring, cleaning and surface preparation. Higher density wire brushes remove paint and rust quickly but are more aggressive. Lower density wire brushes are better for delicate or detailed jobs and they also prevent surface damage.
2. Strip, Cylinder and End Brushes
Strip brushes have adjustable density and are good for cleaning, sealing and wiping. When density increases, coverage and cleaning strength improve.
Cylinder (rotary) brushes handle large surfaces and density determines how much debris they collect in each pass. End brushes reach into small or tight spaces. Density can be set for precise work or more forceful cleaning.
At Brushcustom, you can customize cylinder, strip or end brushes to fit your needs. You can decide if you want more flexibility, extra coverage or higher precision.
3. Abrasive and Polymer Brushes
Abrasive brushes use polymer or synthetic filaments mixed with grit. When density increases, more abrasive points touch the surface which increases finish quality and cutting power. If density is too high, abrasive exposure drops and cleaning becomes less effective.
Also See: What is an Abrasive Brush
How Brush Density Affects Performance
Brush density has a direct impact on performance in industrial applications. It changes how brushes clean, finish, manage heat as well as use energy.
Cleaning and Deburring
Higher density brushes remove material evenly and quickly. More bristles touch the surface which increases cleaning speed and gives uniform results. It is good for heavy duty tasks like removing heavy debris or rust.
Lower density brushes, on the other hand, bend more and fit into uneven shapes. They are good for cleaning complicated forms or fragile parts as they make softer and more controlled contact.
Heat and Cooling Management
Brushing with dense bristle clusters can create moisture & heat. This can cause overheating especially upon continuous or high speed use. When a brush has too many bristles then air or coolant can’t move freely between them. As a result, cooling becomes less effective.
Choice of right density is important especially at 400°C which is typical for steel and stainless wire brushes. Proper spacing between bristles helps keep brushes cool and prevents thermal damage. This also extends the brush life.
At Brushcustom, our team considers thermal factors when designing brushes for high heat jobs. We make sure that bristle spacing and density permit longer brush life and good cooling.
Surface Finish and Polishing
Dense brushes give smooth finishes without streaks as closely packed bristles polish surfaces evenly. This is important for jobs that need a perfect finish. In contrast, brushes with fewer bristles may leave small marks but are better for detailed work and getting into small spaces. For example when working on complicated parts or fine polishing, lower density helps prevent over polishing at corners or edges.
Energy Usage and Machine Wear
A brush with more bristles puts more load on the motor. More contact points create more resistance so the machine uses more energy. This can improve cleaning for tough jobs. But it can also wear out the brush and equipment faster if not controlled. To get the best results and to protect equipment it’s important to balance density with pressure and speed during operation.
Factors which Interact with Density
Brush performance depends on a number of important factors that interact with brush density.
Bristle Stiffness and Material
Bristle stiffness affects how forceful a brush feels. For example nylon bristles bend more as compared to steel ones. When you increase density and use stiff bristles the brush becomes much firmer. This combination works well for tough deburring or cleaning jobs. Even with soft bristles, a dense brush gives more resistance as compared to a sparse one.
Operating Speed and Pressure
Density is important for brushes that run at high speeds. If density is too high, heat can build up especially when speeds go over 1,000 RPM. This can cause overheating. Proper spacing between bristles lets coolant move freely and keeps temperatures under control.
Abrasive Inclusion
Abrasive inclusion changes the effect of density. If it’s too dense then abrasives won’t work. And if there is a lot of space then it won’t clean.
Optimizing Brush Density
Choice of right brush density is key to get the best results in industrial uses. Right density controls heat, cleans & finishes better.
Task Analysis→ Debris, Finish & Surface
Look at the surface type and debris you need to remove. Dense brushes are better for rough steel surfaces with heavy scales. Lower density is better for detailed parts that need more flexibility. Choose according to your finish goal i.e., either you want a smooth finish or aggressive cleaning.
Rule of Thumb→ Low vs High Density
Use high density brushes for fast cleaning or removing large amounts of material. These brushes are good for metals like aluminum and steel in rolling mills or for cleaning conveyors. For surfaces with grooves or complicated shapes, lower density gives better contact and flexibility.
Manufacturer Guidelines
Check the manufacturer’s guidelines before you choose a brush. For example, nylon 6 is good up to 70°C; on the other hand, nylon 66 can handle 100°C under load. Metal bristles can handle even higher heat. Manufacturers list the best density ranges for every brush type and application.
At Brushcustom, we help clients choose the right density and material for their working temperatures. This assures the brushes last longer and perform well.
Maintenance Tips
Inspect brushes often for clogging, bent bristles or uneven wear. Clean them after every use and store them properly to avoid deformation. Replace any worn brushes immediately to keep performance steady.
Conclusion
Brush density is key to efficiency, quality and consistency in manufacturing. Using the right density means better cleaning, polishing and deburring. It also protects finished products and equipment.
If you need any kind of industrial brushes with custom densities for your particular project then BRUSH CUSTOM is your best option. You can contact us anytime.
Related Questions
Do high density brushes clog faster?
Yes they can. When fibers are packed tightly, debris gets trapped more easily. This buildup decreases cleaning efficiency over time and restricts airflow.
Is brush density important for abrasive‐impregnated brushes?
Yes. Abrasive‐impregnated brushes need the right density for good results. Proper density supports the brush, improves durability and manages heat. If density is too low the brush wears out fast. And if it’s too high the brush becomes less flexible.
What is the relationship between brush density and spring pressure in carbon brushes?
Brush density itself doesn’t set spring pressure. But carbon brushes with higher density need spring pressure adjusted carefully. Right pressure keeps contact steady and reduces wear which means the brush will perform better and last longer.
Does brush density affect filament fatigue and how long the brush lasts?
Yes. Right density spreads out the stress and reduces fatigue. If density is too low, the filaments break sooner. High density especially in reinforced brushes can make them last longer.
Are high density brushes always the best for polishing?
No. More filaments in a dense brush help with polishing but too much density makes the brush more prone to clog and less flexible. This can decrease the polish quality.
